SHB WL34 * 2.0 6-3
Brake 6
Service/parking brake

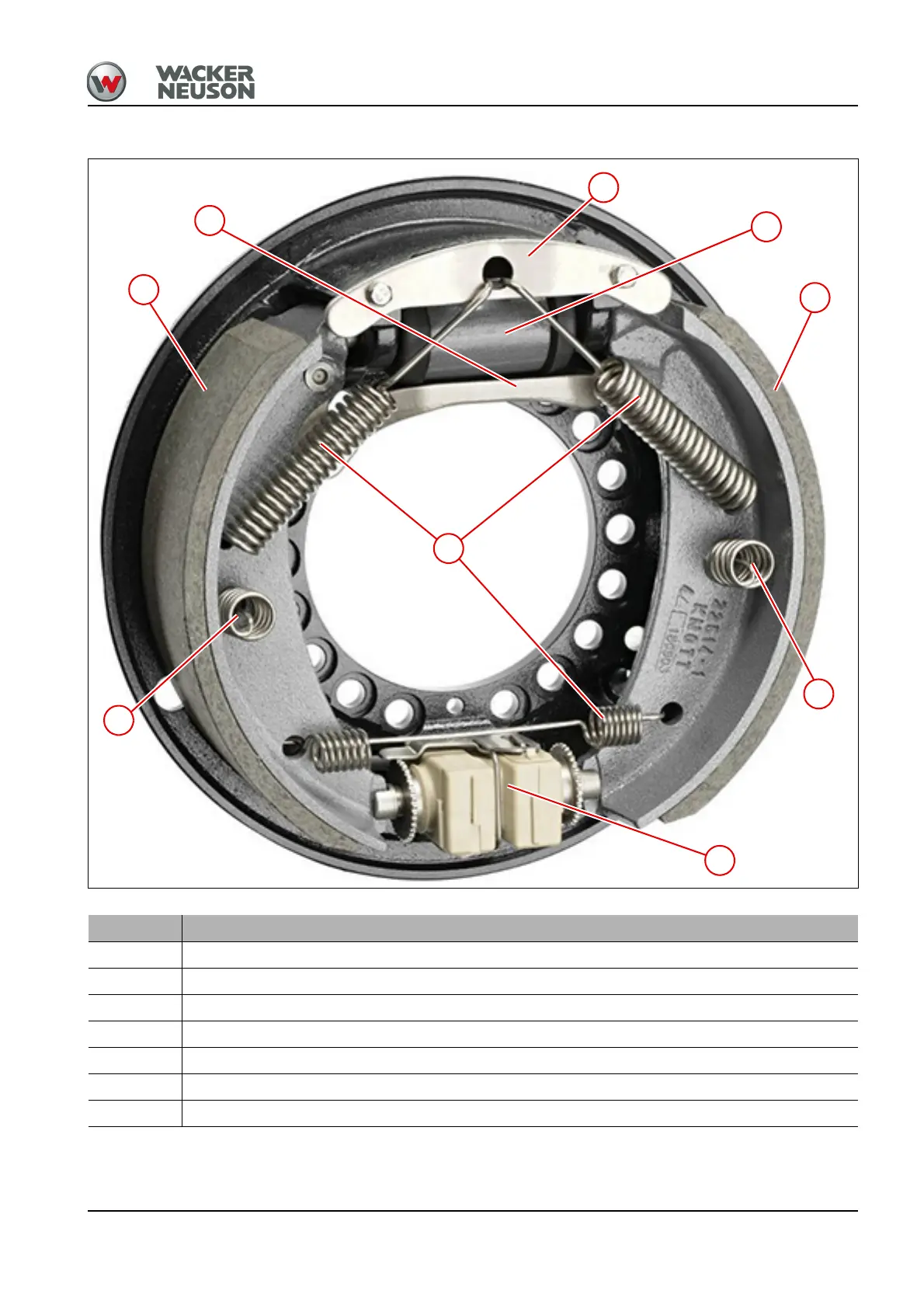

Drum brake setup
1
3
5
2
3
5
4
6
7
Item Designation
1 Brake anchor plate
2 Wheel cylinder
3 Brake shoes
4 Tension springs
5 Jaw holding springs
6 Automatic adjustment of the protective cover
7 Tappet
