SHB WL34 * 2.0 6-7
Brake 6
Service/parking brake

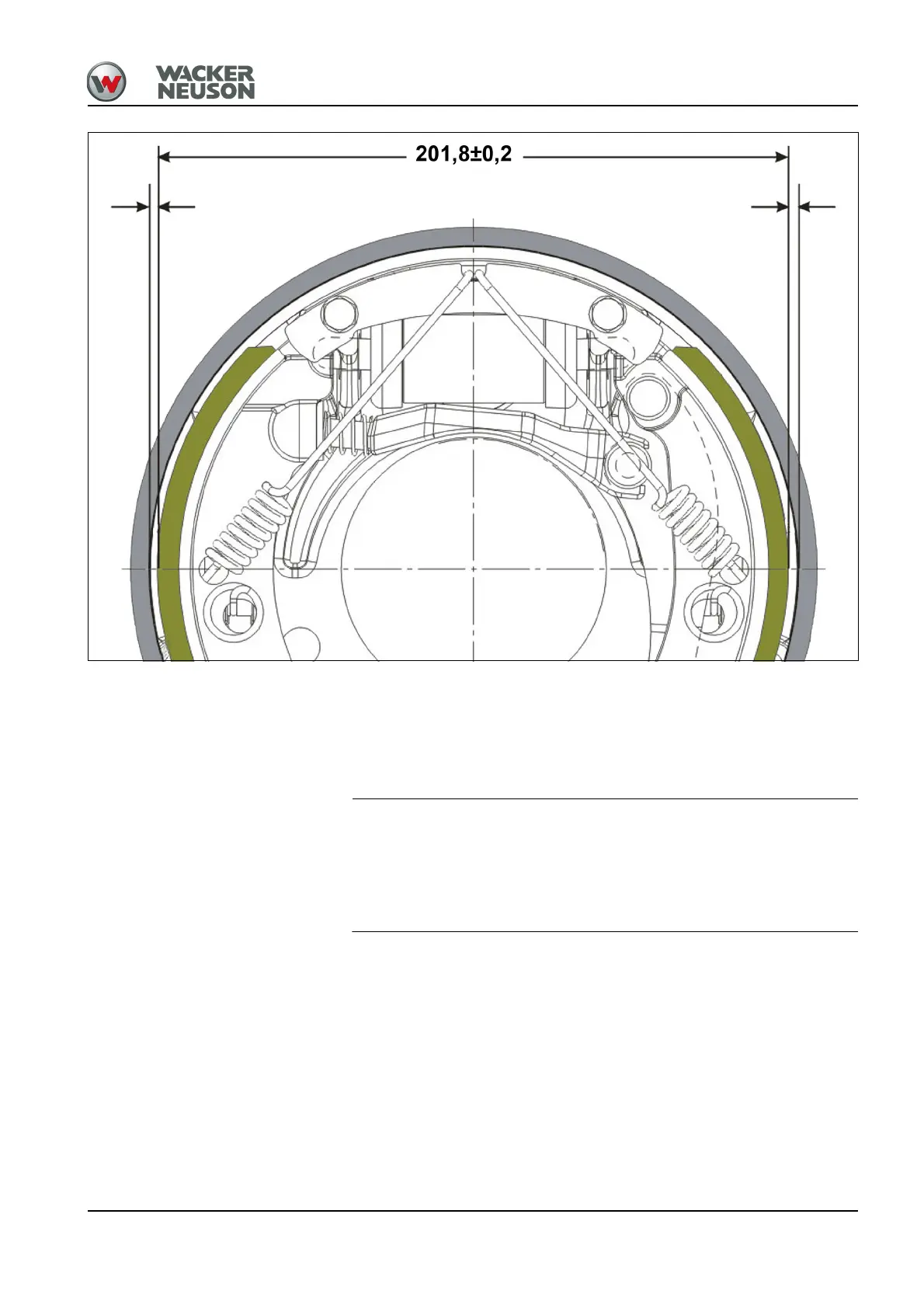

20.Install brake shoes:
The shoe adjustment dimension is 201.8
±0.2
mm. It is measured via
the middle axis.
A correction occurs symmetrically by screwing the adjusting pin out or
in (not at the adjusting wheels!).
21.Hook up the brake cable (Bowden cable).
The brake cables may not be pre-tensioned, as otherwise the flawless
function of the automatic adjustment is not ensured.
The shoe adjustment dimension may not be adjusted by hooking up the
pull cable.
22.Install the brake drum and cardan shaft.
