6-6 SHB WL34 * 2.0
6 Brake
Service/parking brake

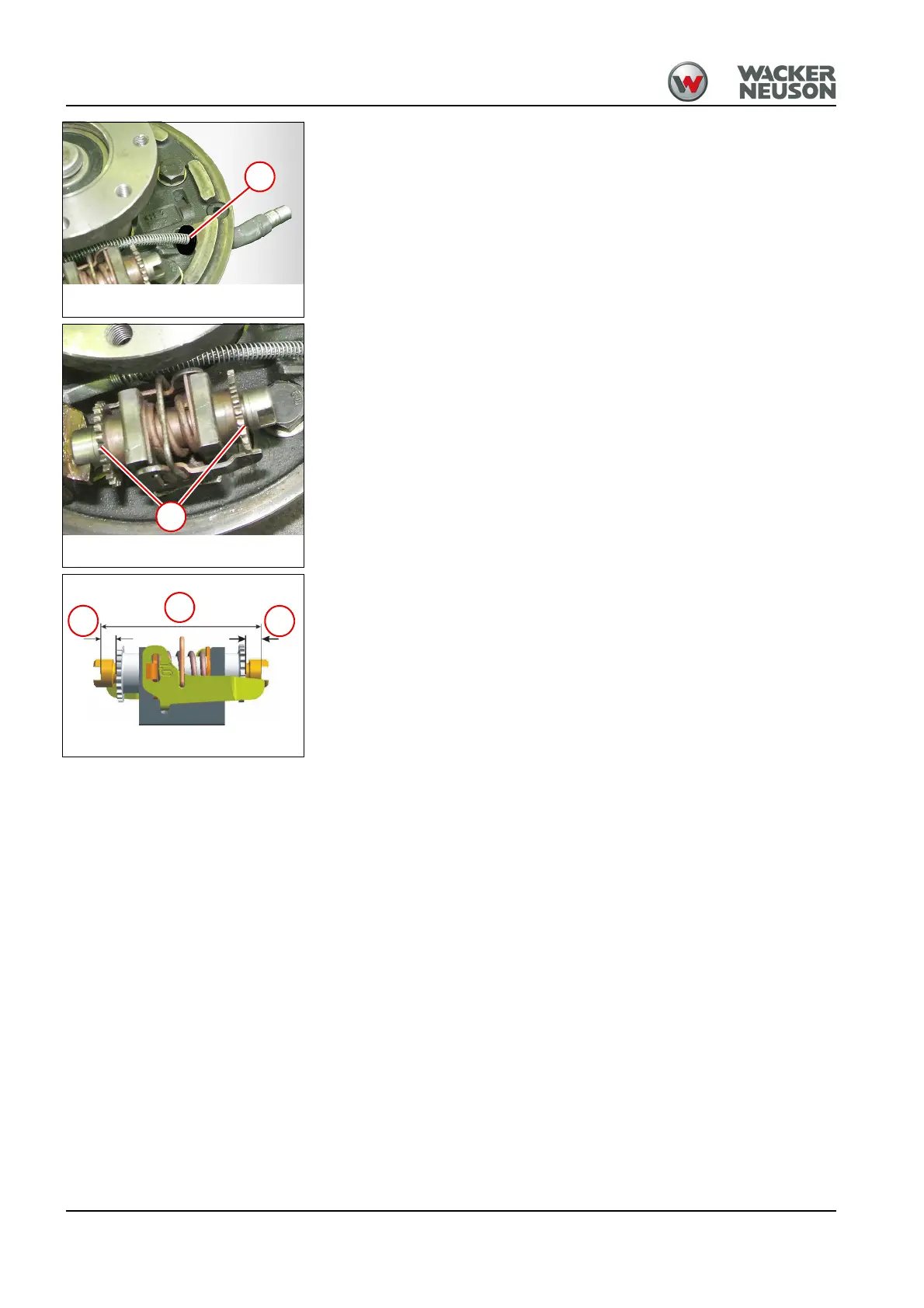

16.Only when exchanging the wire rope adapter: pull off the sleeve 10
and exchange the wire rope adapter.
17.Turn back the automatic adjuster 11 while checking for damage,
cleaning and possibly slightly lubricating with heat-resistant grease.
18.Set the basic setting of the brake.
To do this, set the distance of the setting pin a = 60 mm.
In the process, ensure that the distance of the setting pin to the
respective adjusting wheel b is identical.
19.Install brake shoes, washers and springs.
Fig. 162
10
Fig. 163
11
Fig. 164
a
b
b
