Brake 6
Service/parking brake

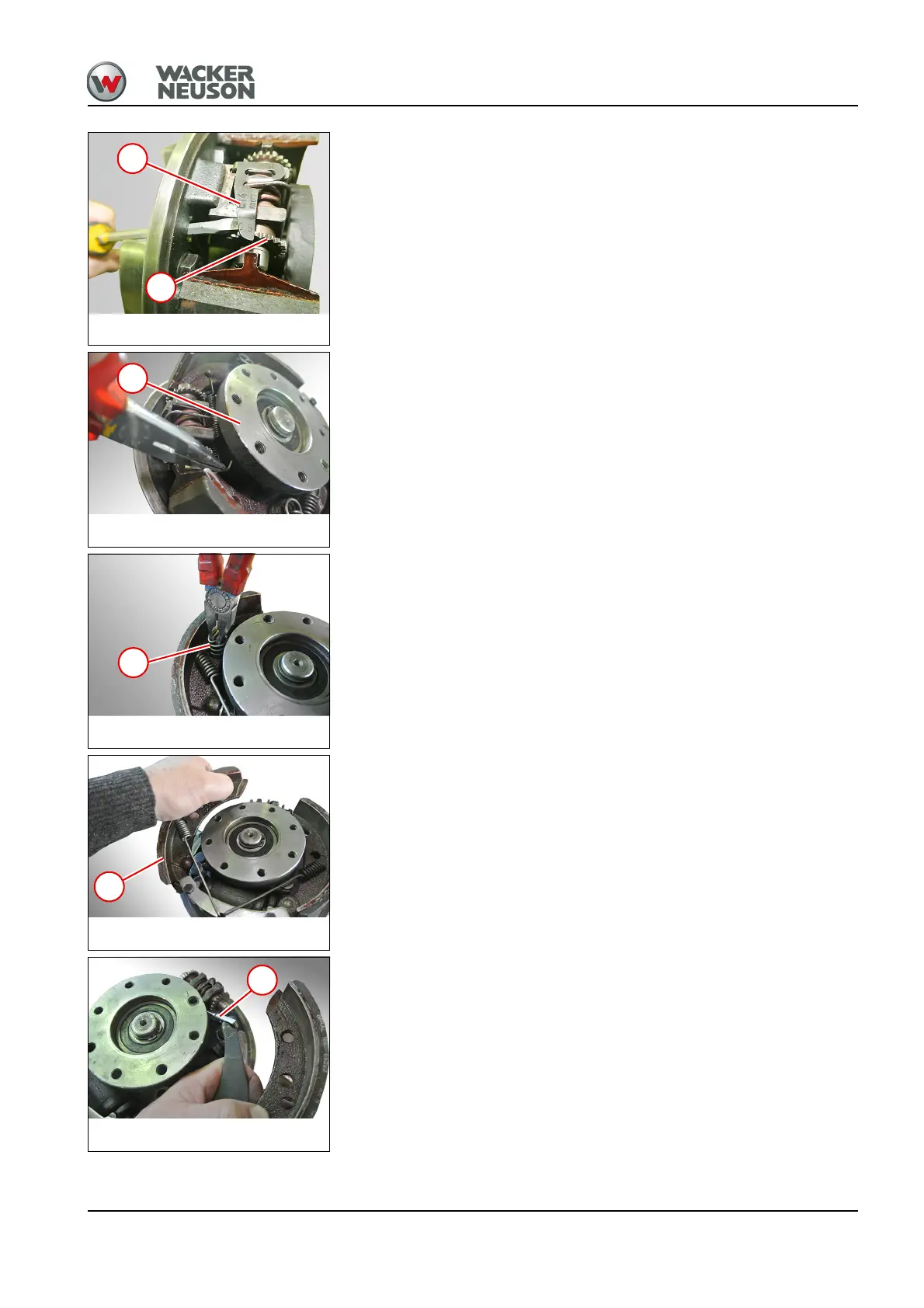

11.Carefully raise the adjusting lever 4 by leveraging it with a screwdriver
so that the adjuster wheel 5 can turn back freely (representation here
without brake drum).
12.Unhitch spring 6.
13.Grab the brake shoe locking springs 7 on the grouser with combination
pliers, compress the spring and loosen by a quarter turn.
14.Remove the brake shoe 8, spring, washer and ram.
15.Unhook the pull wire adapter 9 and remove the brake shoe.
Fig. 157
4
5
Fig. 158
6
Fig. 159
7
Fig. 160
8
Fig. 161
9
.
