8-12 SHB WL34 * 2.0
8 Work hydraulics
Tilt cylinder

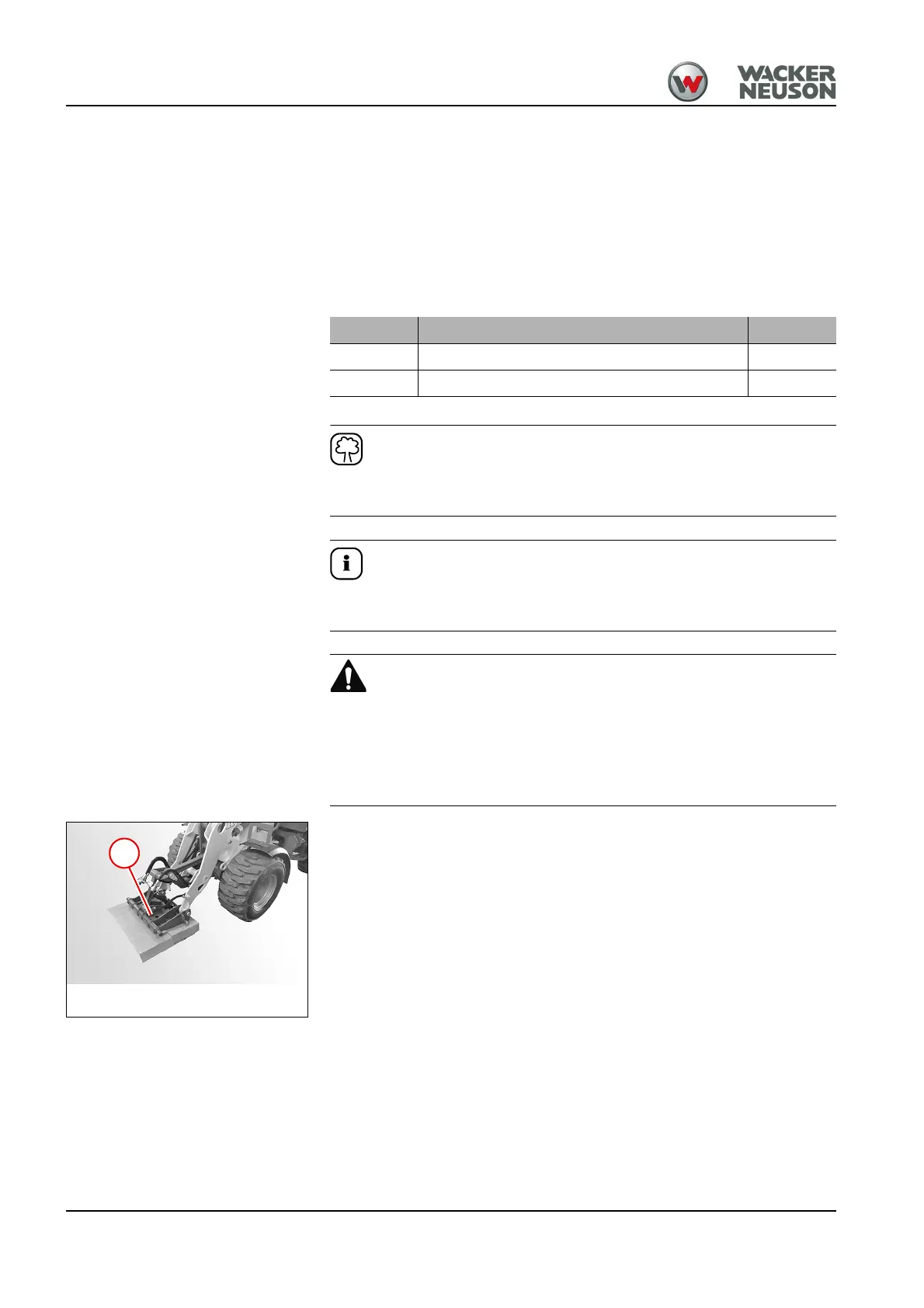

8.7 Removing/installing the tilt cylinder
Preparing work
Tools:
• Suitable lifting tackle with a carrying capacity of at least 30 kg
• Suitable receptacle for collecting the hydraulic oil
• Plugs (different sizes) for closing the oil lines
Technical data
Use a suitable container to collect the hydraulic oil as it drains off and
dispose of it in an environmentally friendly manner!
Compensation rings can be on both sides of the bearings to reduce play
and avoid damage.
Injury hazard due to heavy component!
The tilt cylinder weighs approx. 28 kg.
To remove and install the tilt cylinder, use suitable lifting gear or work
together with a second person.
1. Reduce the load on the loader unit by lowering the quickhitch 1 to the
ground.
Designation Weight
A69 Tilt cylinder (with counterbalance valve) 25 kg
A71 Tilt cylinder (standard) 28 kg
Work hydraulics
Tilt cylinder
