SHB WL34 * 2.0 8-11
Work hydraulics 8
Lock pins
8.6 Removing/installing the lock pin
Information
If the lock pin is corroded, check whether the guide is clean and grind it
out if necessary.
Disassemble
1. Remove the lock cylinder 1– see “Removing/installing lock cylinder A4”
on page 8-10.
2. Dislodge lock pin 2 from the guide in an inward direction.
Install
1. Slightly grease guide and pin.
2. Insert new pin into guide from the inside.
3. Install the lock cylinder.
4. Grease the lock pin.

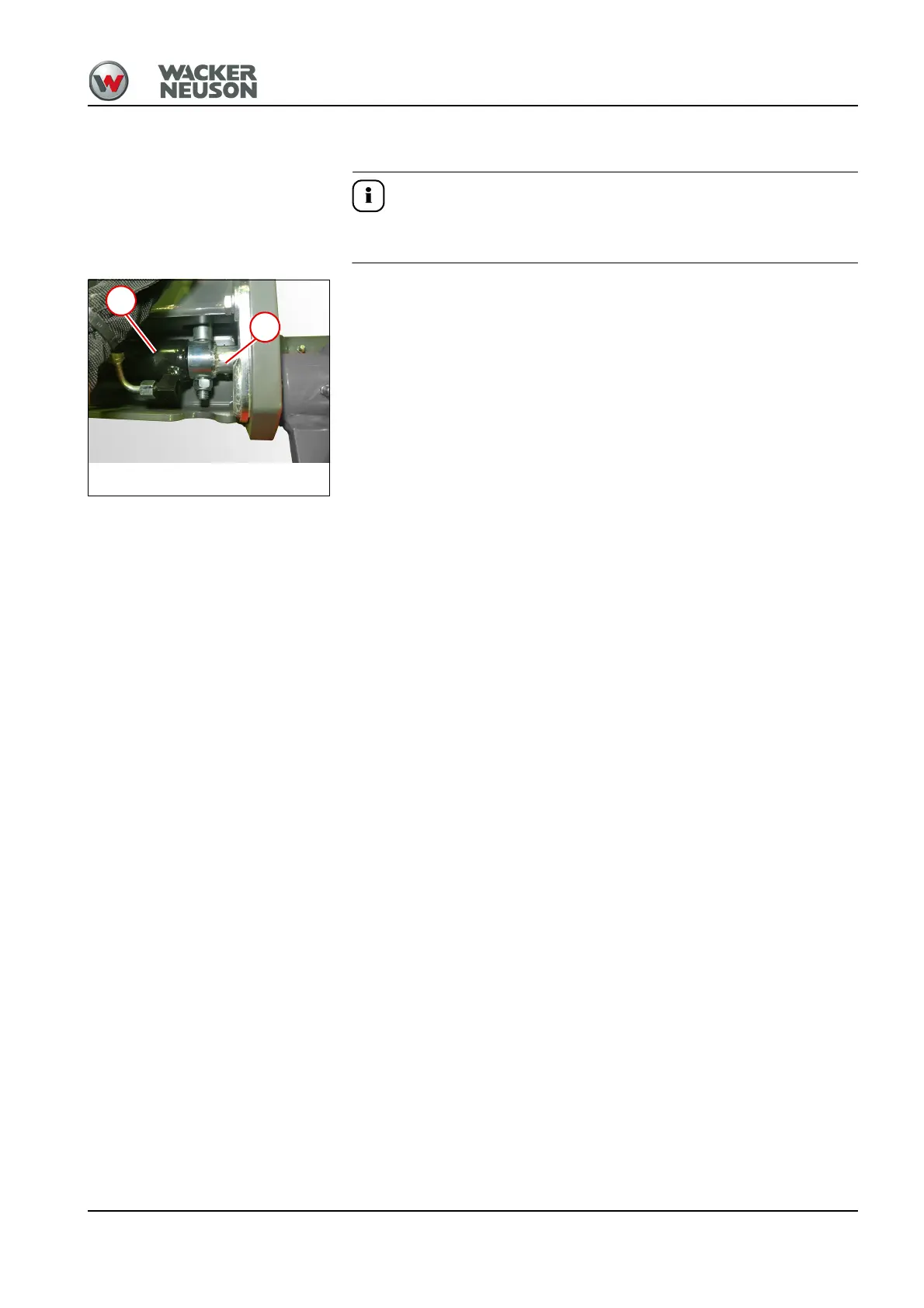

Fig. 212
2
1
