SHB WL34 * 2.0 8-15
Work hydraulics 8
Loader unit

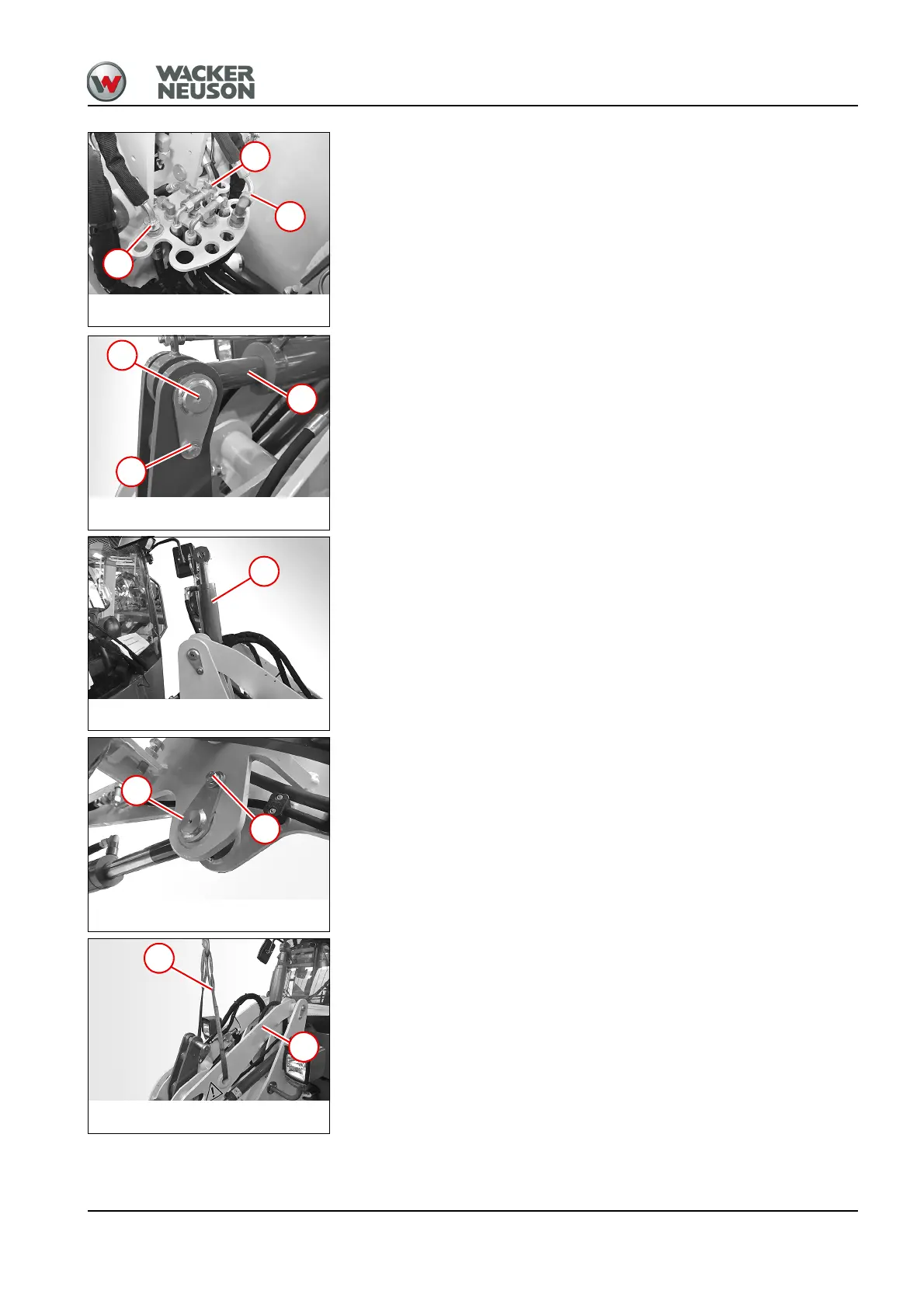

3. Screw off and cap the hydraulic lines 2, 3 and 4.
4. Secure the tilt cylinder with suitable lifting gear.
5. Unscrew plug 7.
6. Dislodge the pin 5.
7. Raise the tilt cylinder 6.
8. Unscrew the compensation rings if necessary.
9. Tip tilt cylinder 8 backward and set it aside.
10.Remove both lift cylinders from the loader unit. To do this, unscrew a
screw 10 on each side.
11.Dislodge a pin 9 on each side.
12.Lower lifting cylinder on the front chassis.
13.Secure the loader unit 12 with suitable lifting gear 11.
Fig. 219
2
3
4
Fig. 220
6
5
7
Fig. 221
8
Fig. 222
9
10
Fig. 223
12
11
