8 Work hydraulics
Loader unit

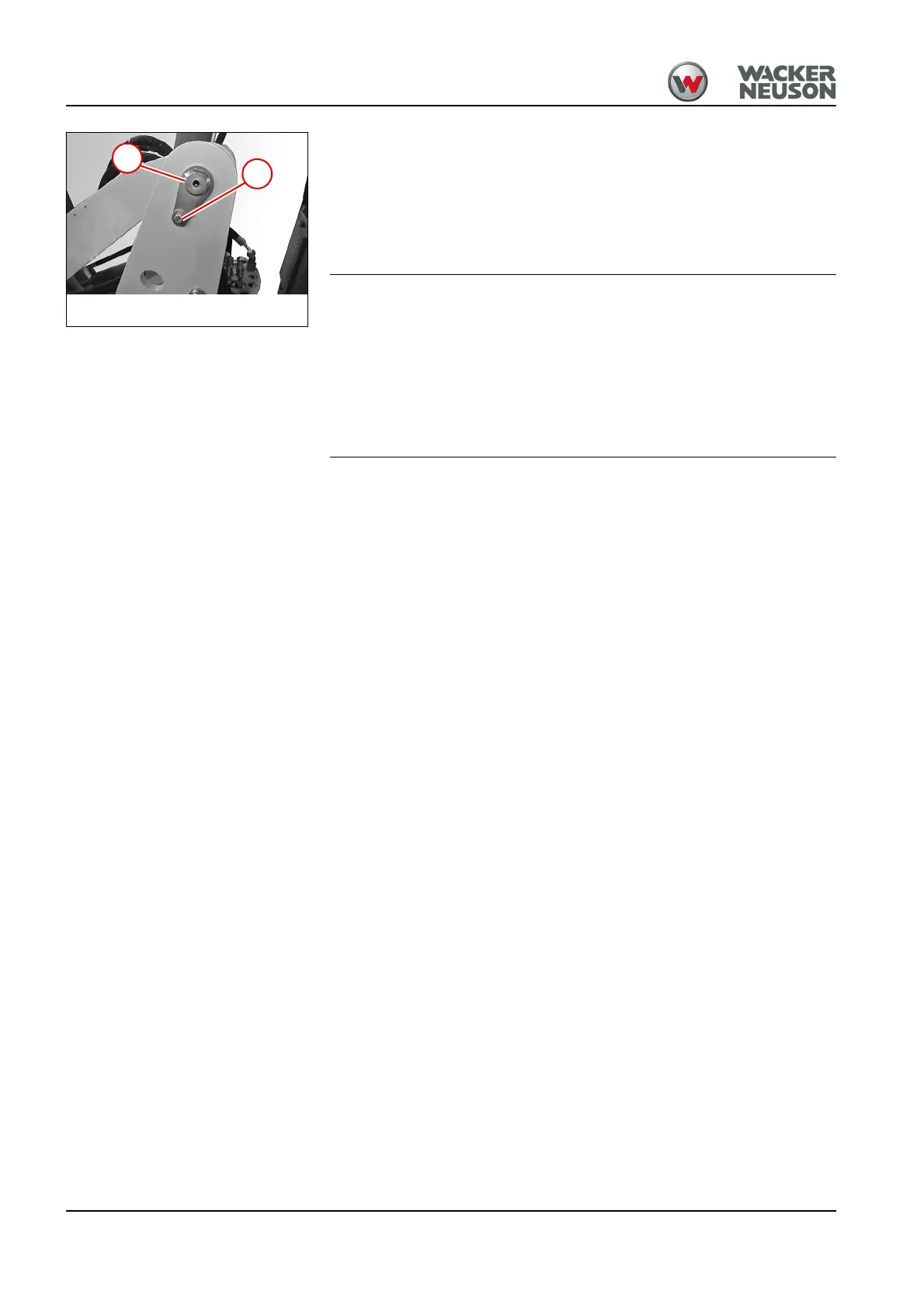

14.Remove one screw 14 on each side.
15.Dislodge a pin 13 on each side.
16.Lift loader unit with suitable lifting gear.
17.Reverse the machine away carefully.
Install in the reverse order.
Pay attention to the following instructions for assembly:
► Apply a thin coat of grease to the pins and bearings before inserting the
pins.
► Always use spring washers and washers for tightening the pins.
► After completing installation, apply grease to the cylinder and loader
unit bearings.
