Wacker Neuson WL34 - Page 263

SHB WL34 * 2.0 9-3
Electrical system 9

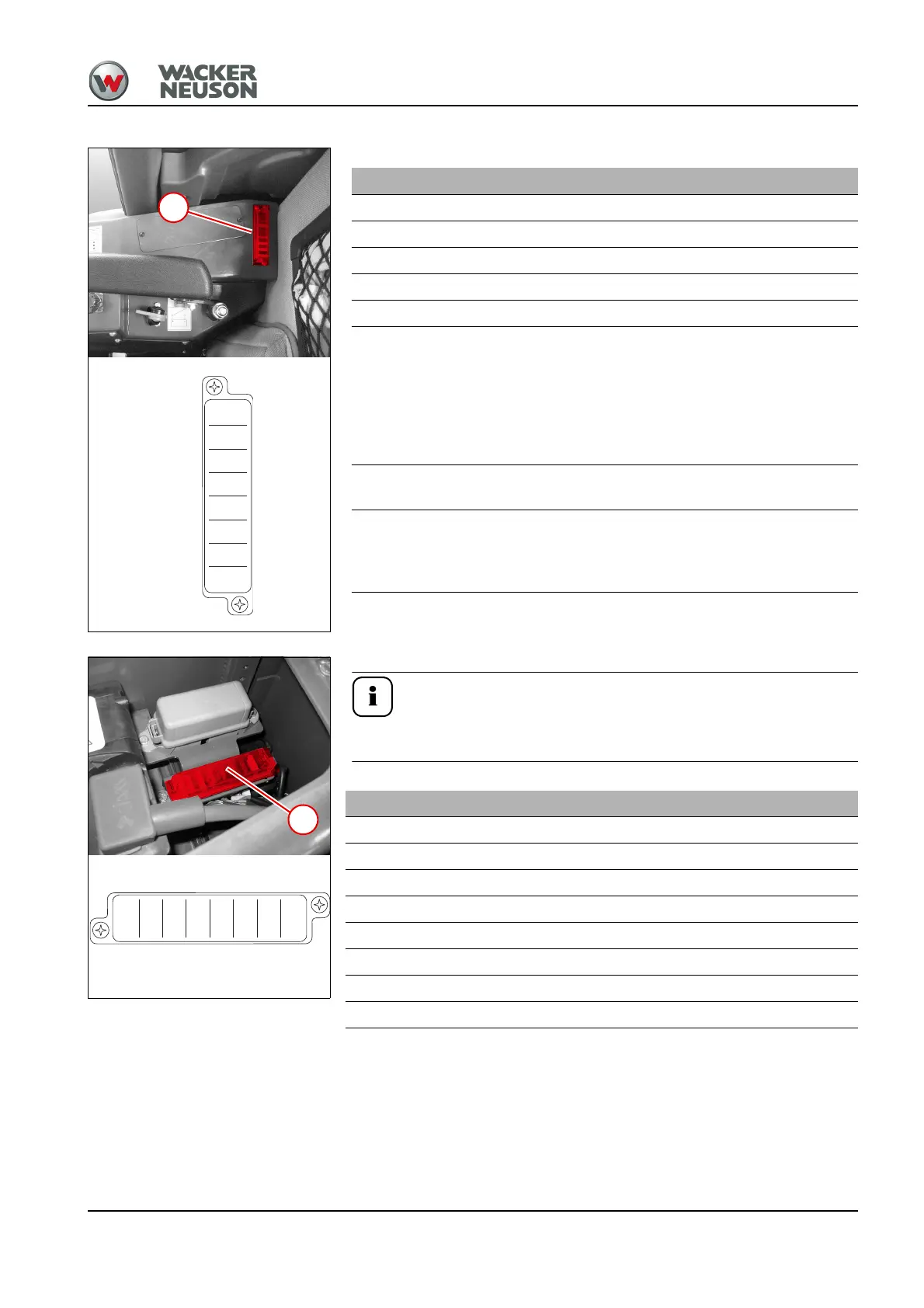

Fuses
Side console fuses [2]
Battery container fuses [3]
Information
The fuses of the battery container [3] are only occupied when the vehicle
is outfitted with the engine Perkins 404F-22 (35.7 kW).
Fig. 245
F 28
F 21
F 27
F 26
F 25
F 24
F 23
F 22
2
Pos. Protected function A
F 21 Machine electronics power supply 15
F 22 Machine electronics power supply 15
F 23 Machine electronics power supply 15
F 24 Machine electronics power supply 5
F 25 Radio terminal 30 (constant current) 10
F26
Diagnosis connector
Handbrake switch
Loader unit lock switch
Continuous operation of the 3rd control circuit
Lighting of the control lever
Operator presence switch
Machine electronics power supply
5
F27
Central lubrication system (option)
Radio terminal 15
5
F28
Air-cushioned operator's seat
Heated seat
4th control circuit
Rear window heating
20
F
36
F
35
F
34
F
33
F
32
F
31
F
30
F
29
Fig. 246
3
Pos. Protected function A
F 29 Preheating system, preheating relay 5
F 30 DPF burner relay 20
F 31 Fuel pump relay 7.5
F 32 Not assigned 7.5
F 33 Engine electronics power supply 7.5
F 34 Engine electronics power supply 5
F 35 Engine electronics power supply 15
F 36 Engine electronics power supply, accelerator pedal 15
