9-4 SHB WL34 * 2.0
9 Electrical system
Fuses

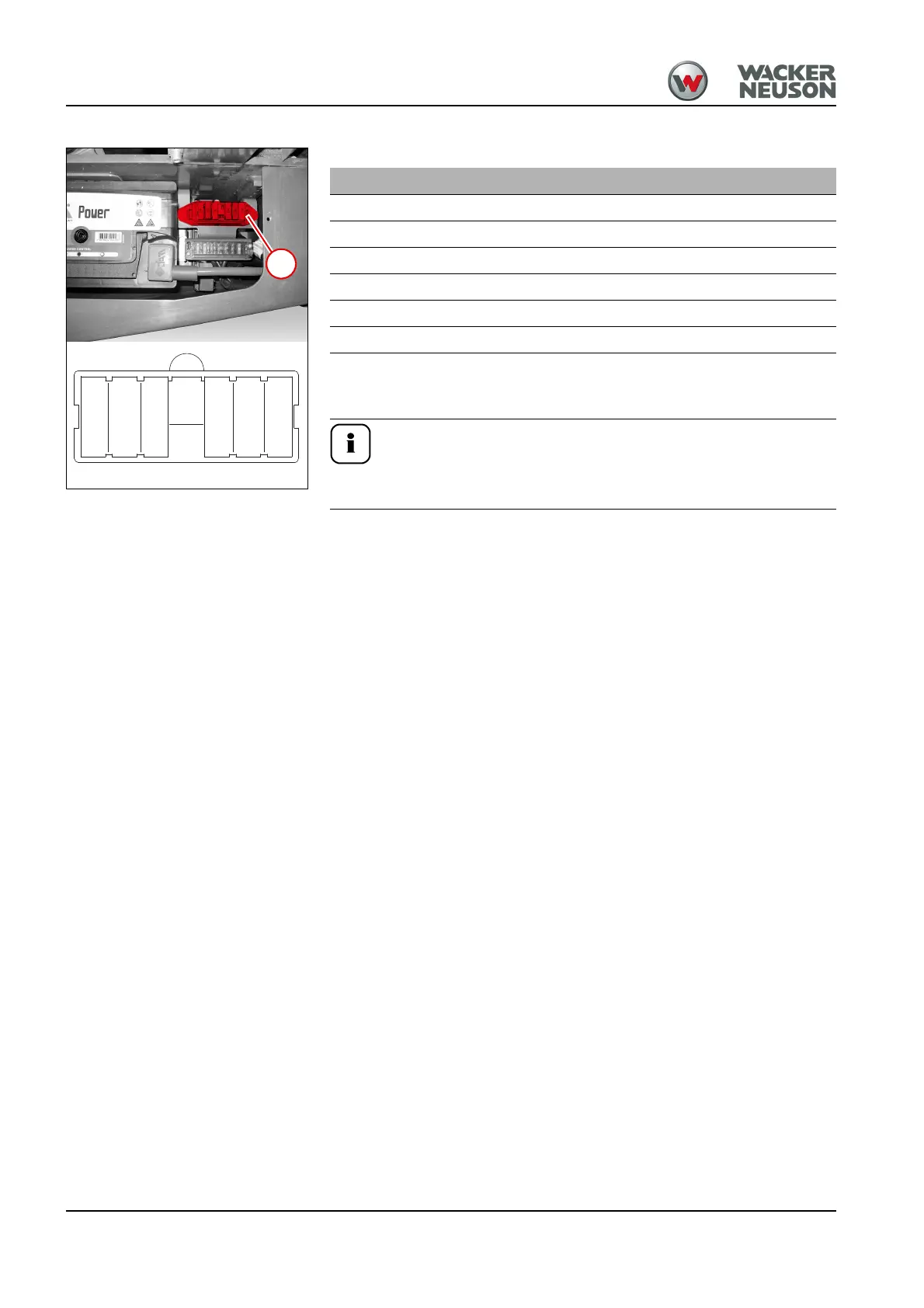

Engine compartment main fuses (4)
Information
Machines with Deutz engines have two additional 150 A main fuses in the
battery container that protect the preheating system.
F
306
F
305
F
304
F
303
F
302
F
301
Fig. 247
4
Pos. Protected function A
F 301 Instrument panel 40
F302 Cab 50
F 303 Engine relay
(2)
60
F 304 Engine electronics
(1)(3)
30
F 305 Preheating system 50
F 306 Vehicle electronics
(2)
60
For the vehicle outfitted with:
(1) Perkins engine 404D-22 (35.7 kW)
(2) Perkins engine 404F-22 (35.7 kW)
(3) Deutz engine TD 2011 (55.1 kW)
