Joystick
9.4 Joystick
Overview
Front view
Rear view

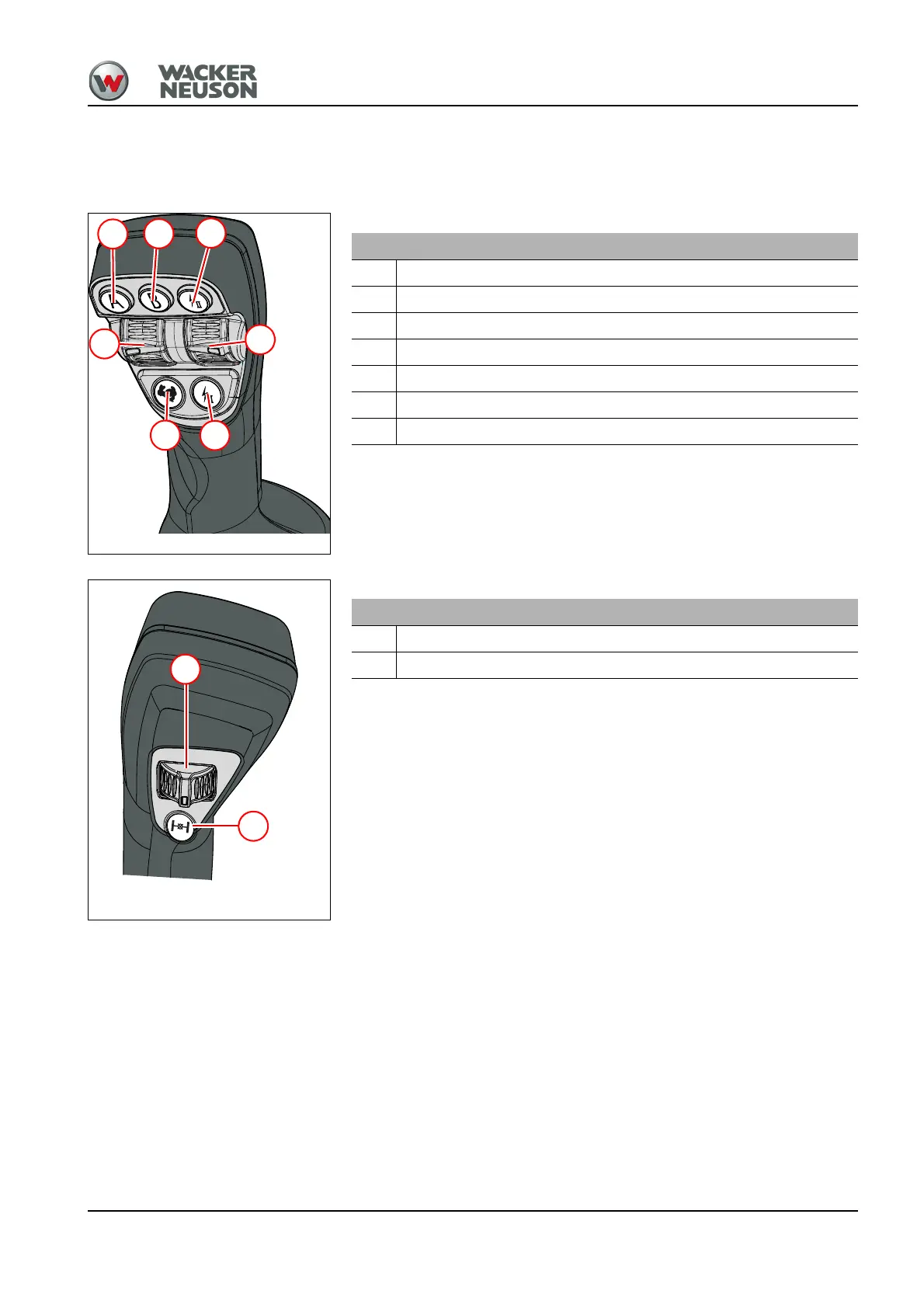

Fig. 250
A
B
C
F
E
G
D
Control elements
A Button A: Changeover from 2nd to 3rd control circuit (option)
B Button B (not assigned)
C Button for front electrical connection II (option)
D Scroll wheel for 4th control circuit (option)
E Button for front electrical connection I (option)
F High speed/creep gear button
G Forward/reverse wheel
Fig. 251
I
H
Control elements
H Scroll wheel for 3rd control circuit (option)
I Differential lock button
