10 Trim
10.1 Removing/installing the engine cover
Preparing work
Auxiliary tool:
• Suitable lifting gear
• Suitable slings (round slings) with corresponding load-bearing capacity
Technical data
Injury hazard due to heavy component!
The engine cover weighs approx. 33 kg.
Always work in a pair when removing or installing the engine cover.

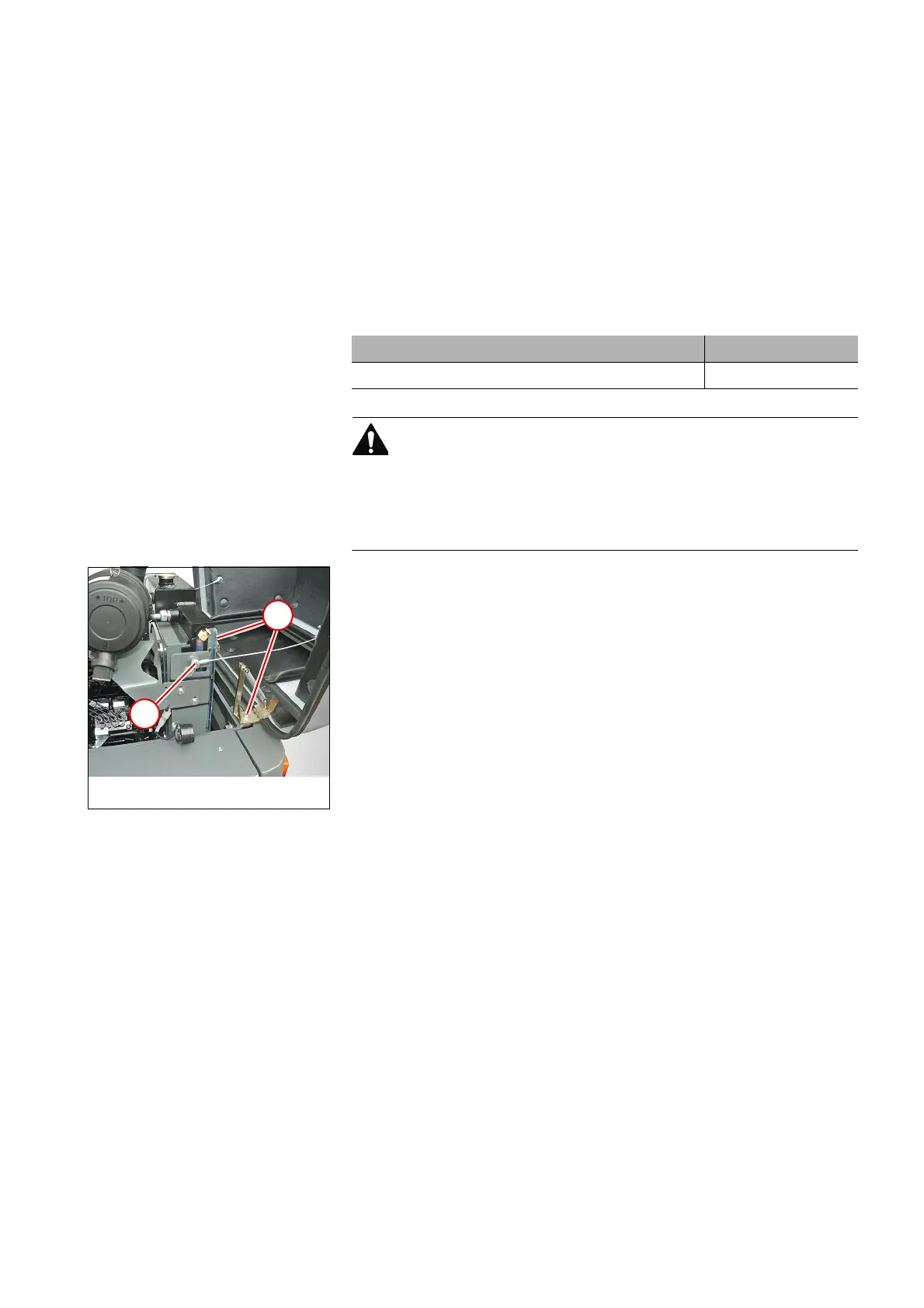

1. Loosen retaining cable 1.
2. Have a second person hold the engine cover.
3. Remove screws 2.
4. Remove the engine cover and set aside.
Install in the reverse order.
Designation Weight
Engine cover 33 kg
Trim
Engine cover
