10.2 Removing/installing the base plate
CAUTION
Injury hazard due to heavy component!
The base plate weighs approx. 13 kg.
► Support the base plate whilst removing the screws.
1. Remove screws 1 and the base plate.

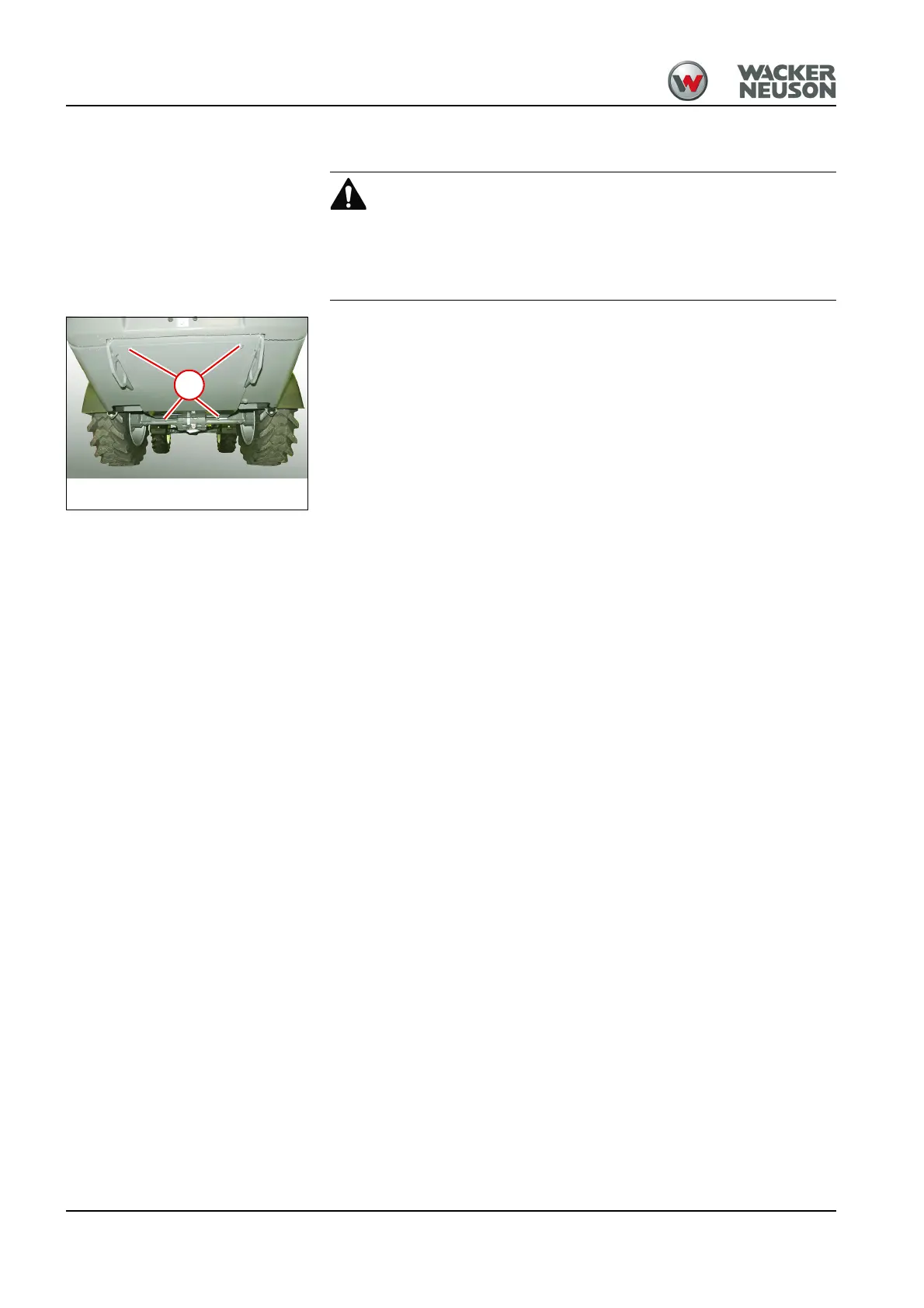

Fig. 261
1
