11.3 Removing/installing the 12 V connector
1. Remove the steering wheel – see “Removing/installing the steering
wheel” on page 7-2.
2. Remove screws 1.
3. Remove screws 2.
4. Raise the instrument panel.
5. Remove screws 3.
6. Remove screws 4.
7. Slide the bellows downward.
8. Fold the plastic trims aside.

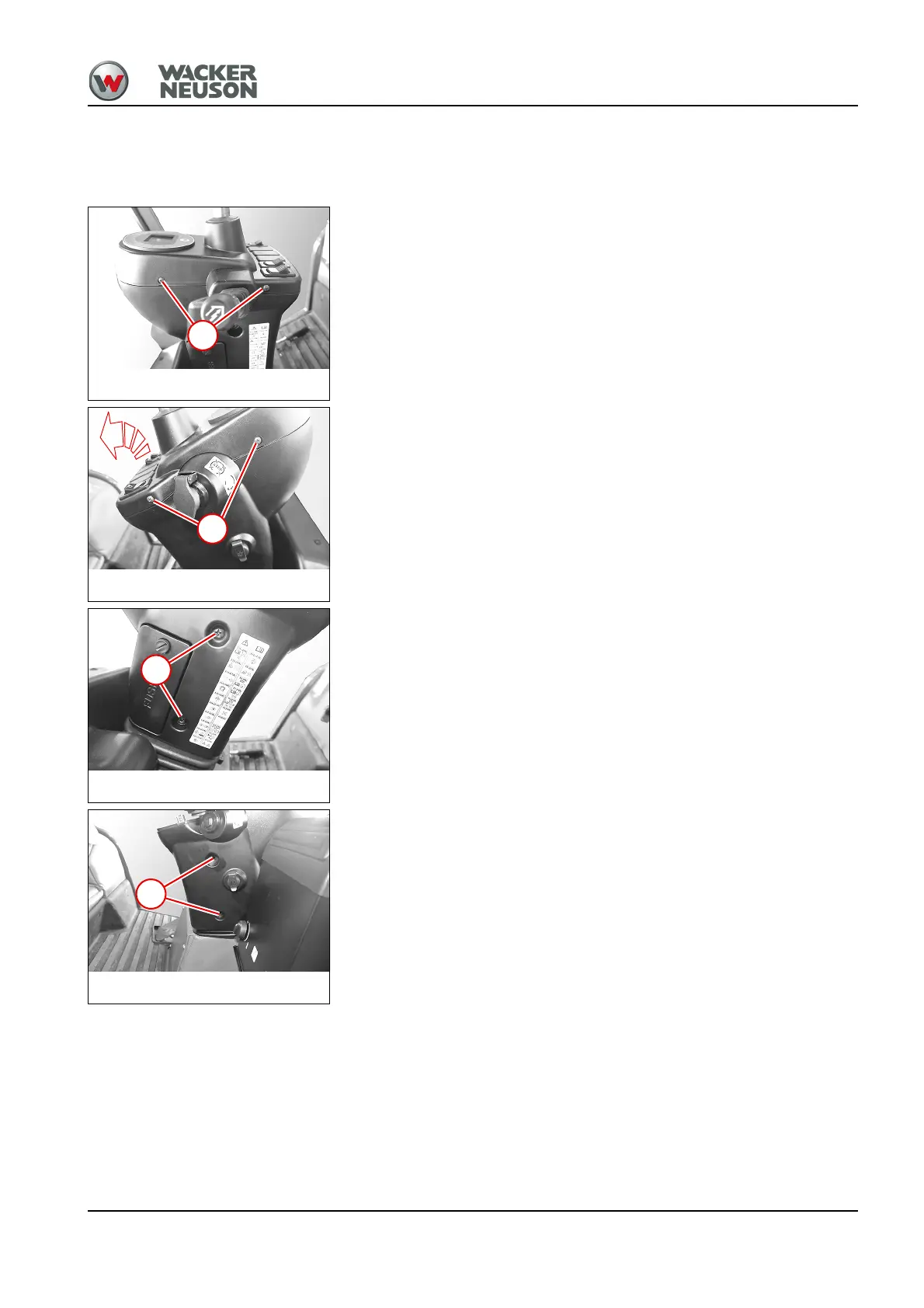

Fig. 279
1
Fig. 280
2
Fig. 281
3
Fig. 282
4
