Removing/installing the heating blower
1. Remove dial 1.
2. Remove the nut underneath the dial.
3. Push the dial switch inward.
4. Remove four screws 2.
5. Pull the cover slightly upward to remove.
6. Pull off connector 3 and set the cover aside.
7. Dismount the air outlet grille 4.
8. Take out the fresh-air filter 5.

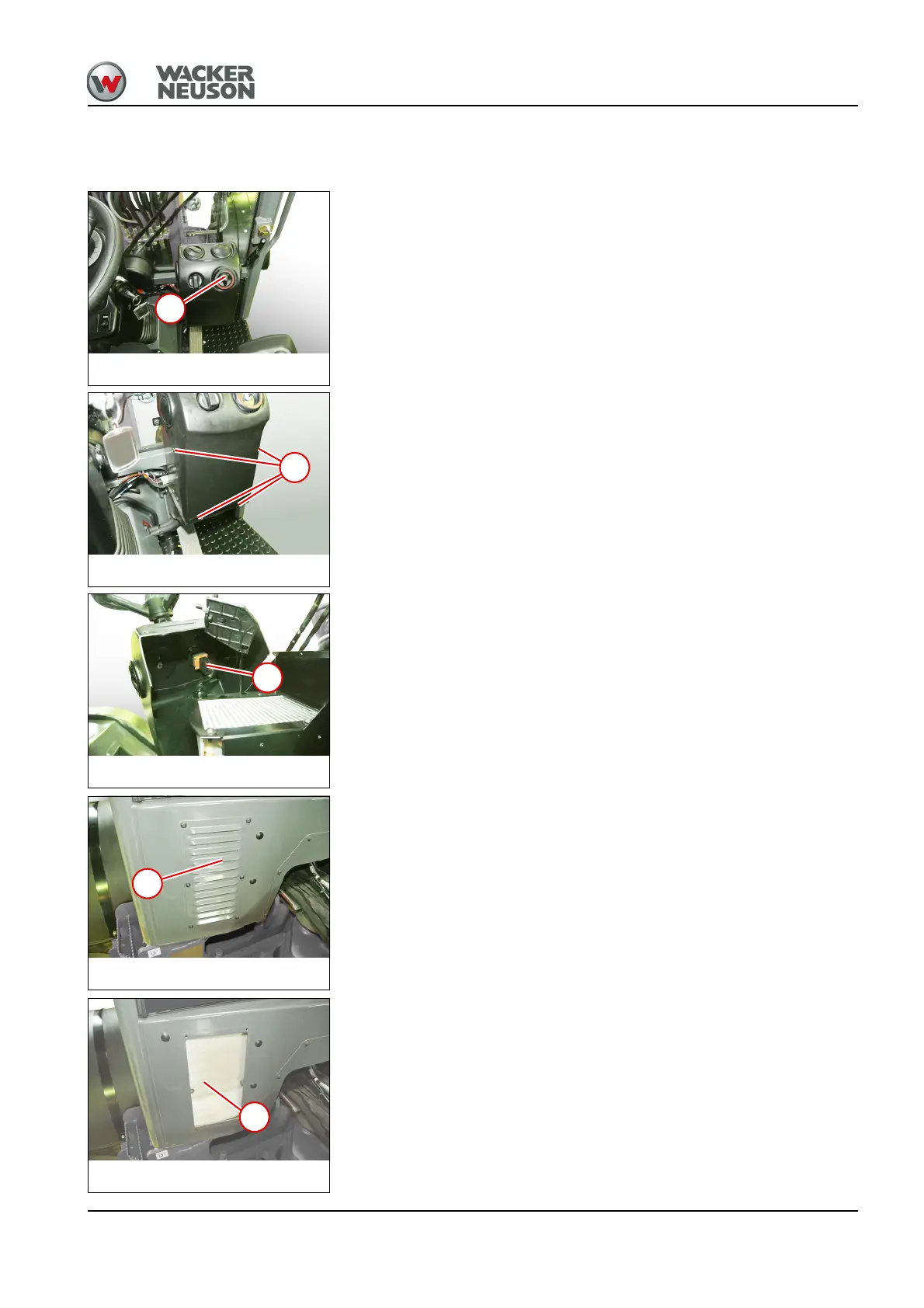

Fig. 284
1
Fig. 285
2
Fig. 286
3
Fig. 287
4
Fig. 288
5
