WAREMA climatronic
®
Installation Instructions
1234
Weather station
Onsite junction box
Input from previous component
JY(St)Y 2x2x0.8mm ø
X1
J1
rd
0V A B 24V
bk
yl
wt
4xAWG 26C UL black
Network closed (120Ω)
Network open
Terminal strip J1

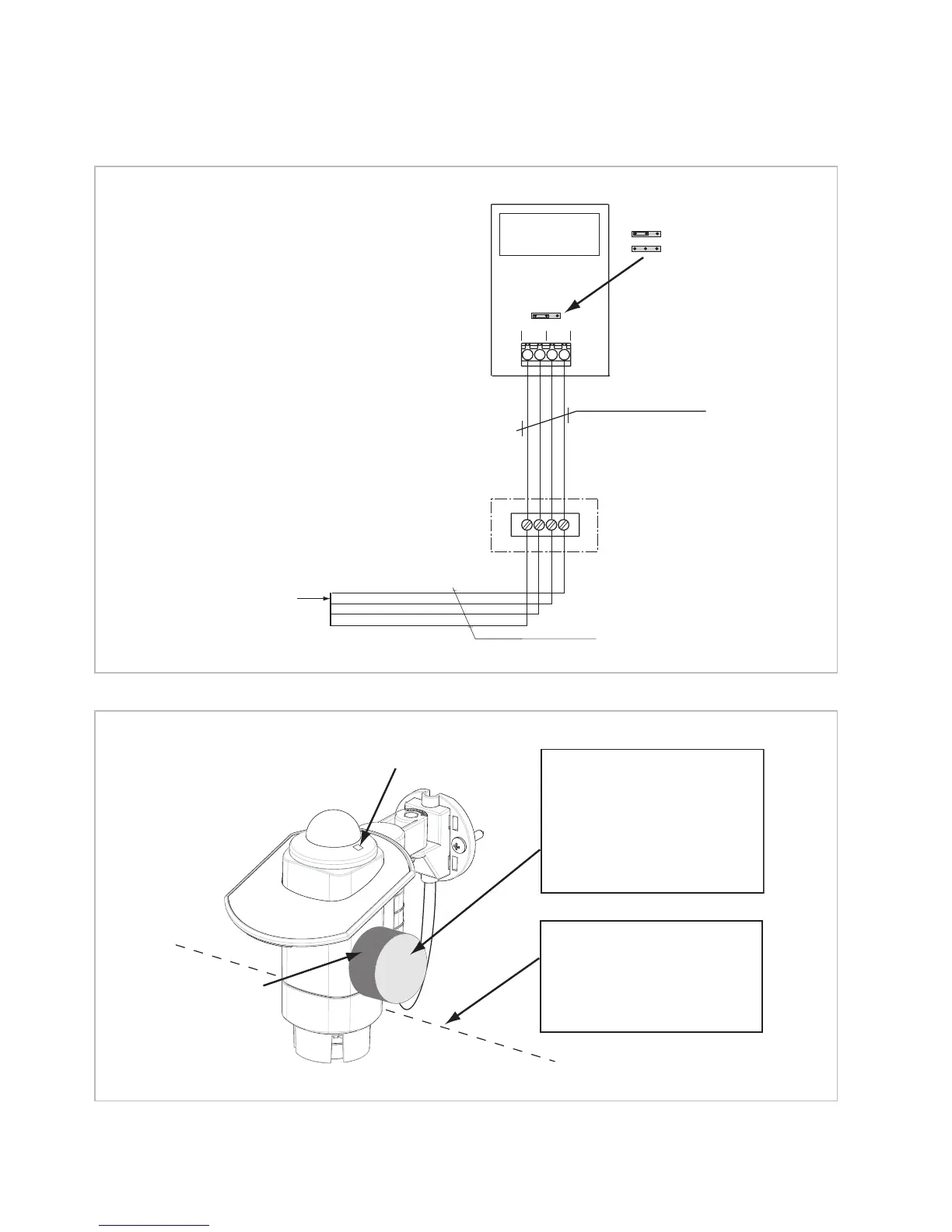

Fig. 20 Connection example of weather station at beginning or end of line
Status-LED
magnet
(Covered)
type label
To identify a weather station:
Hold the supplied magnet
against the type label on the
right-hand side (as seen from
the front) when prompted to do
so in the menu.-> The status LED
lights up to confirm this.
The feed line may not hang
below this height to avoid
hindering the wind sensors. It
may not be located in line with a
sensor opening!
Fig. 21 Identification of a weather station (by approaching the side of the station with a magnet)
Connection information
