Weather station
Onsite junction box
Input from previous component
JY(St)Y 2x2x0.8mm ø
X1
J1
rd
0V A B 24V
bk
yl
wt
CAT line, weather-proof
Network closed(120Ω)
Network open
Terminal strip J1
rd
bk
yl
wt
Output to next component

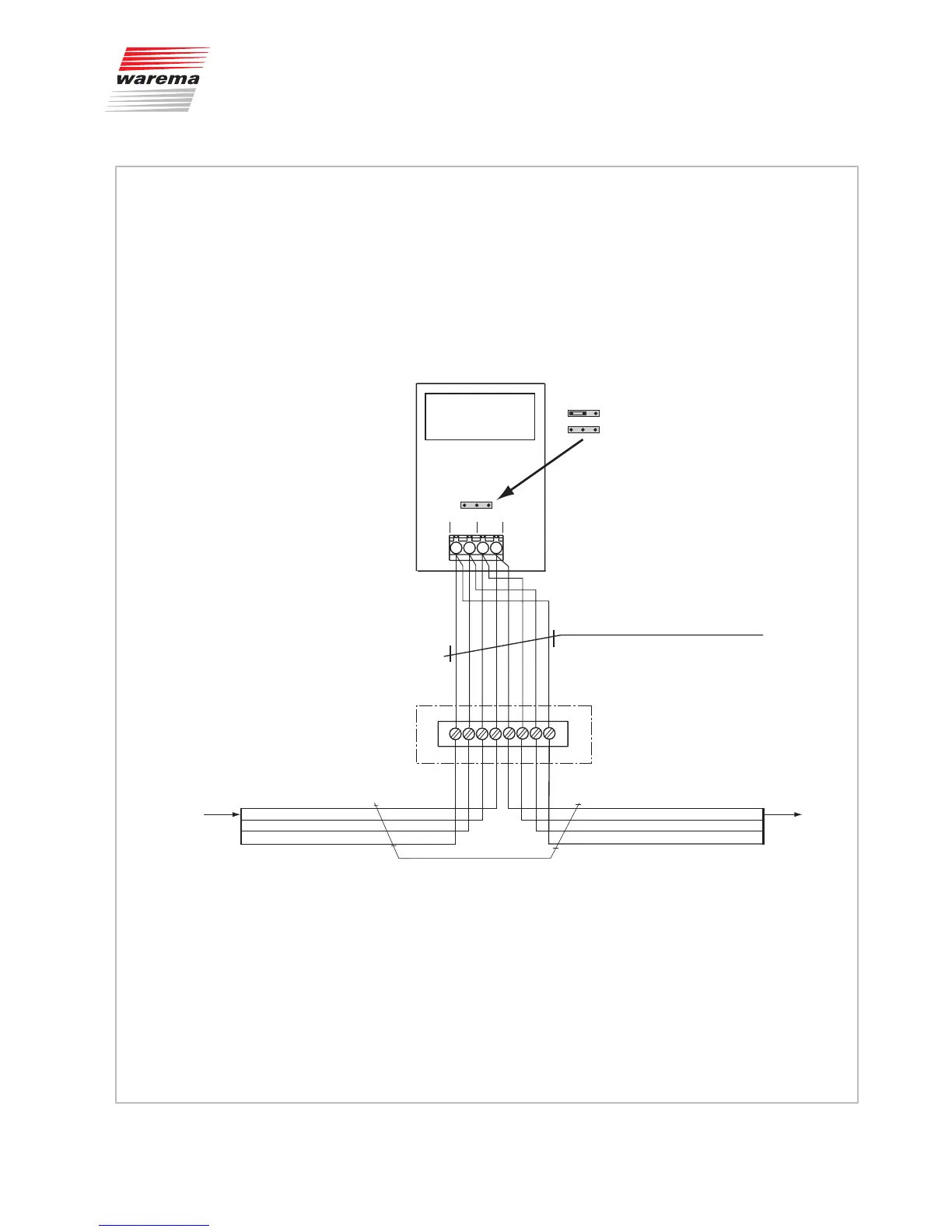

Fig. 22 Connection example of weather station not at beginning or end of line
Connection information
