1 Getting started with the Alliance e2695 Separations Module
22 July 29, 2013, 715003794 Rev. B

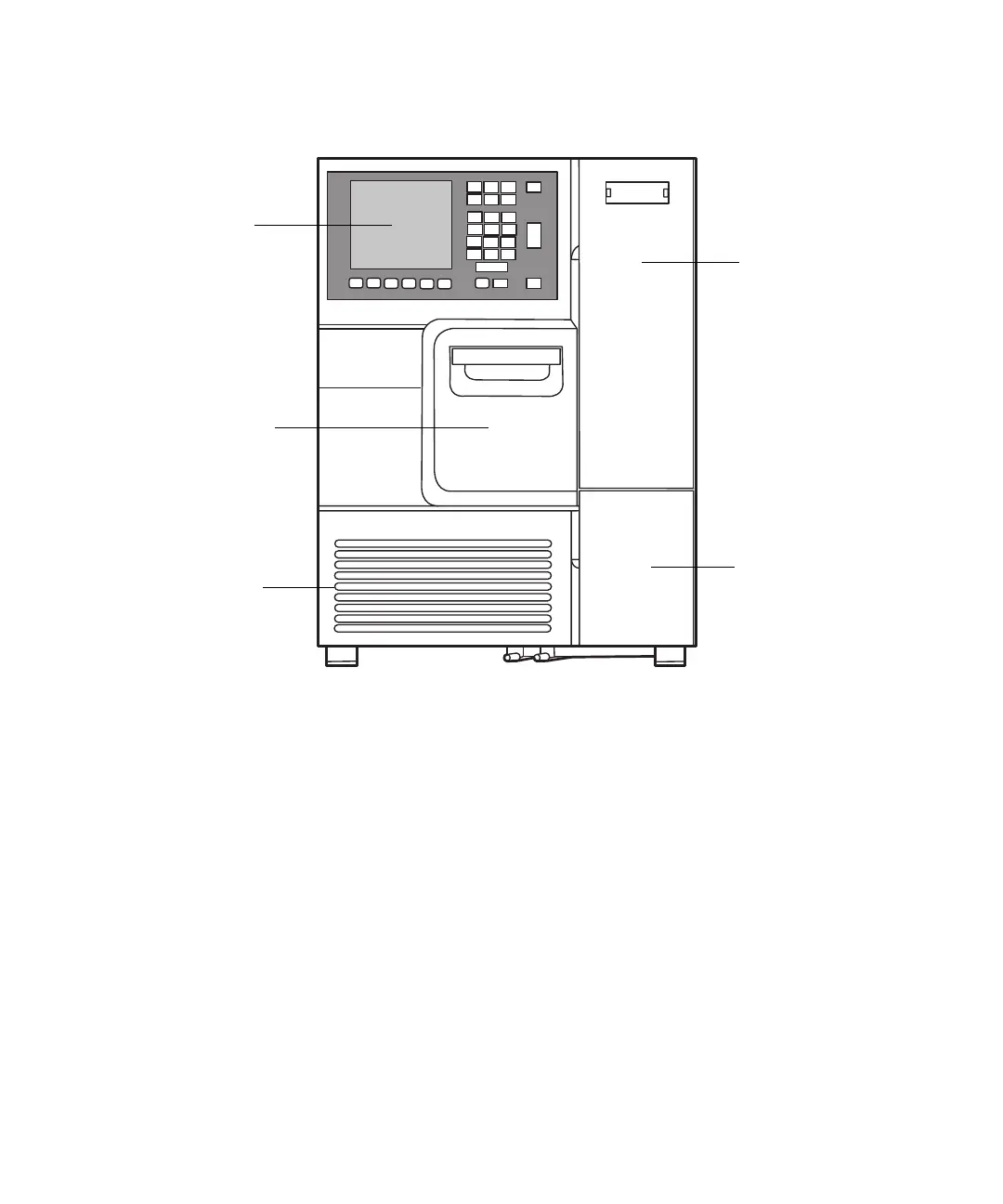

Alliance e2695 Separations Module (front view):
HPLC system configurations
The separations module supports RS-232, IEEE-488, Ethernet, and I/O
connections for compatibility with a variety of HPLC system configurations. It
can function in these ways:
• As the source of Input/Output and timing signals in a simple, standalone
HPLC system
• As the IEEE-488 system controller in an HPLC standalone system that
includes these instruments:
– The Waters 2414, 2410, or 410 Refractive Index Detector
Syringe
access door
Solvent
conditioning
tray access
door
Solvent
delivery tray
access door
Sample
compartment
access door
Front panel
display and
keypad
