2 Install the e2695 Separations Module
58 July 29, 2013, 715003794 Rev. B

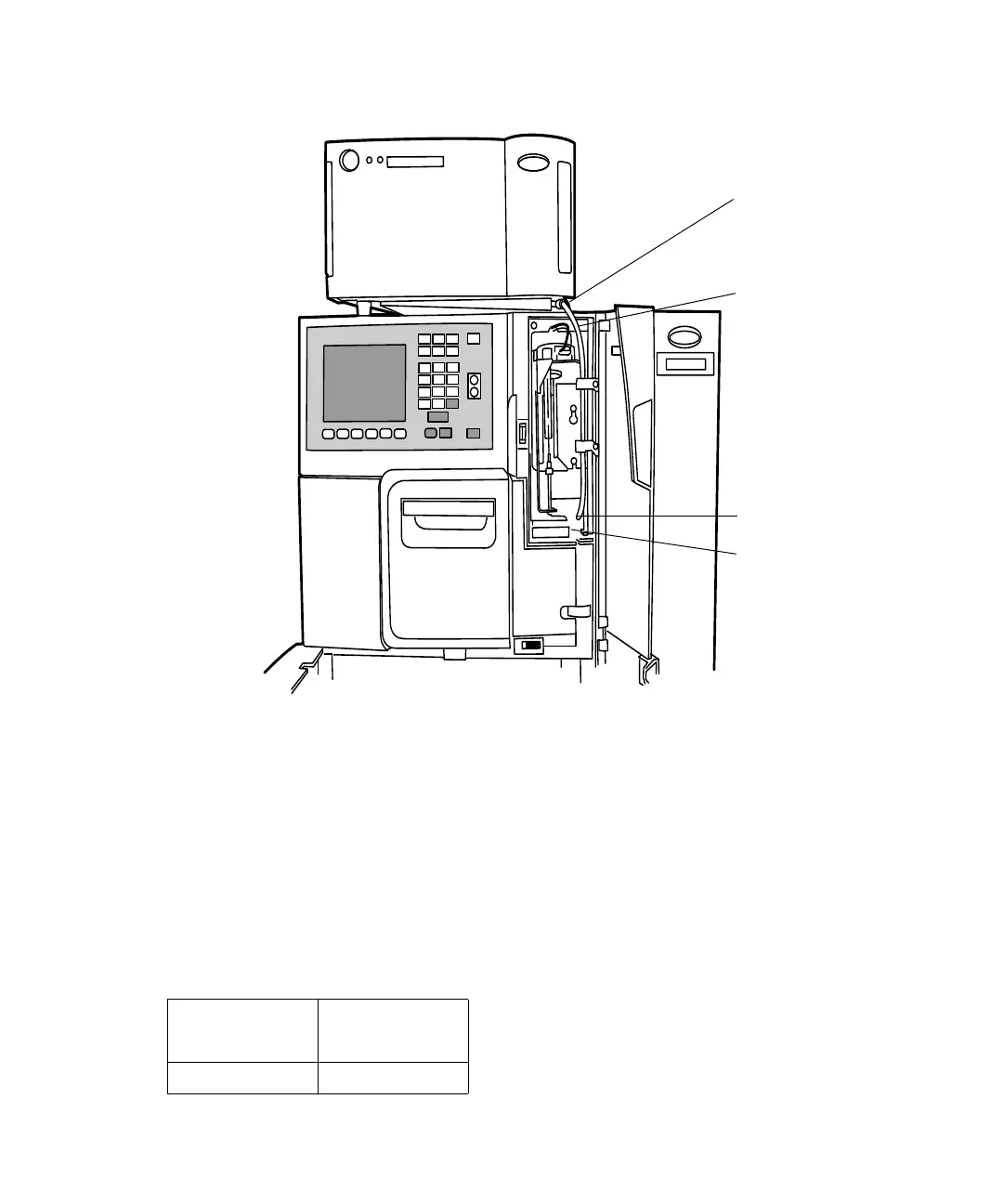

A and C series detector drain routing - with drip tray:
Install solvent supply tubing
The tubing from the separations module to the solvent reservoirs is coiled and
stored in front of the separations module, near the syringe compartment. One
end of the solvent tubing is connected (at the factory) to the in-line vacuum
degasser, which is connected to the gradient proportioning valve (GPV).
Each tube is marked with a letter (corresponding to each solvent reservoir)
and a color-coded label.
Solvent supply tubing identification:
Solvent line
label
Solvent line
color
AYellow
Drain fitting location
on drip tray
Tube routing
End of tube
Syringe drip tray
To Next Page
