8 Diagnostic Testing and Troubleshooting
238 July 29, 2013, 715003794 Rev. B

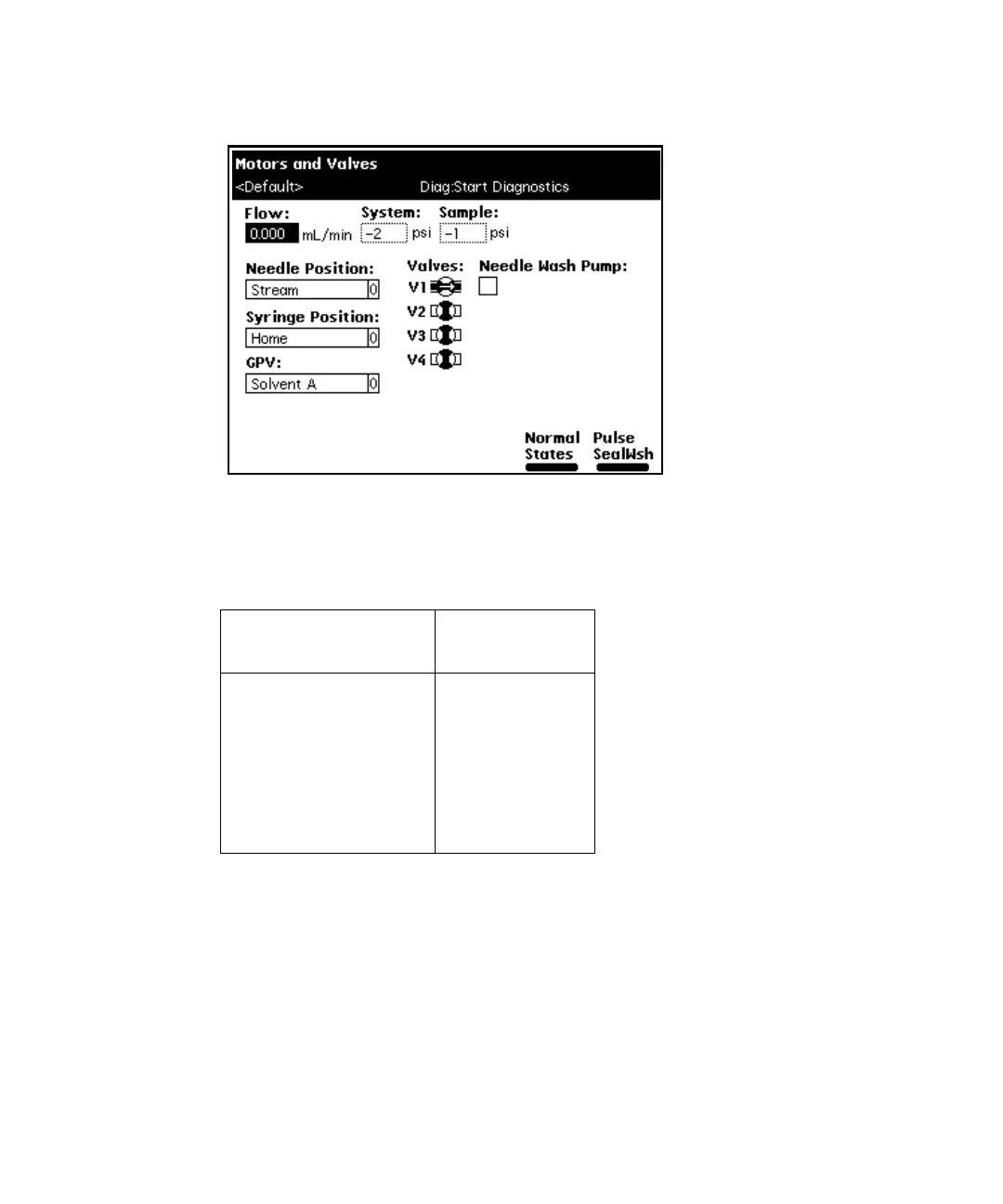

I/O Diagnostics screen:
2. Connect two jumper wires between any one of the paired switch outputs
that you want to test and any of the inputs.
3. In the I/O Diagnostics screen, select the paired switch to which the
jumper wires are connected, and then use any numeric key to toggle the
switch between the On and Off positions.
4. Confirm that the input to which the jumper wires are connected changes
state (circles change from empty to full) as the switch is toggled.
Connecting I/O Switches and Inputs
Paired switch
outputs
Inputs
Switch 1
Switch 2
Switch 3
Switch 4
Inject Start
Run Stopped
Stop Flow
Hold Inject 1
Hold Inject 2
