WM 68401 04/2021
MEDUCORE Standard
2
EN 171
6 Operation
6.11.1 Preparing 12-lead ECG recording and
assessment
Requirement • The device is switched on (see “6.1 Switching on the device”,
page 118).
• A patient group is selected (see “6.4 Selecting patient group”,
page 120).

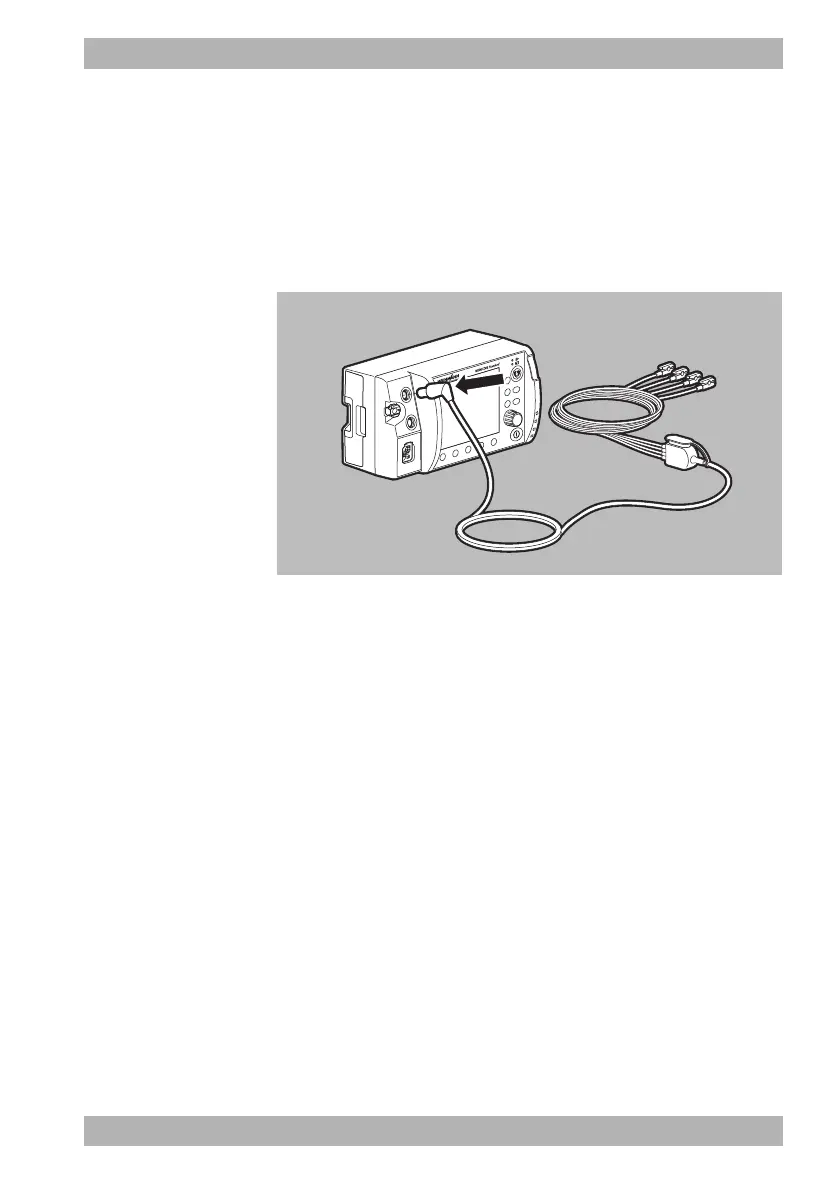

1. Connect the ECG connector of the ECG cable to the ECG
connection for ECG cable on the device using the connection
for the 12-lead ECG extension cable.
