Weinmann MEDUCORE Standard2 - Control Panel

WM 68401 04/2021
MEDUCORE Standard
2
EN 35
3 Description

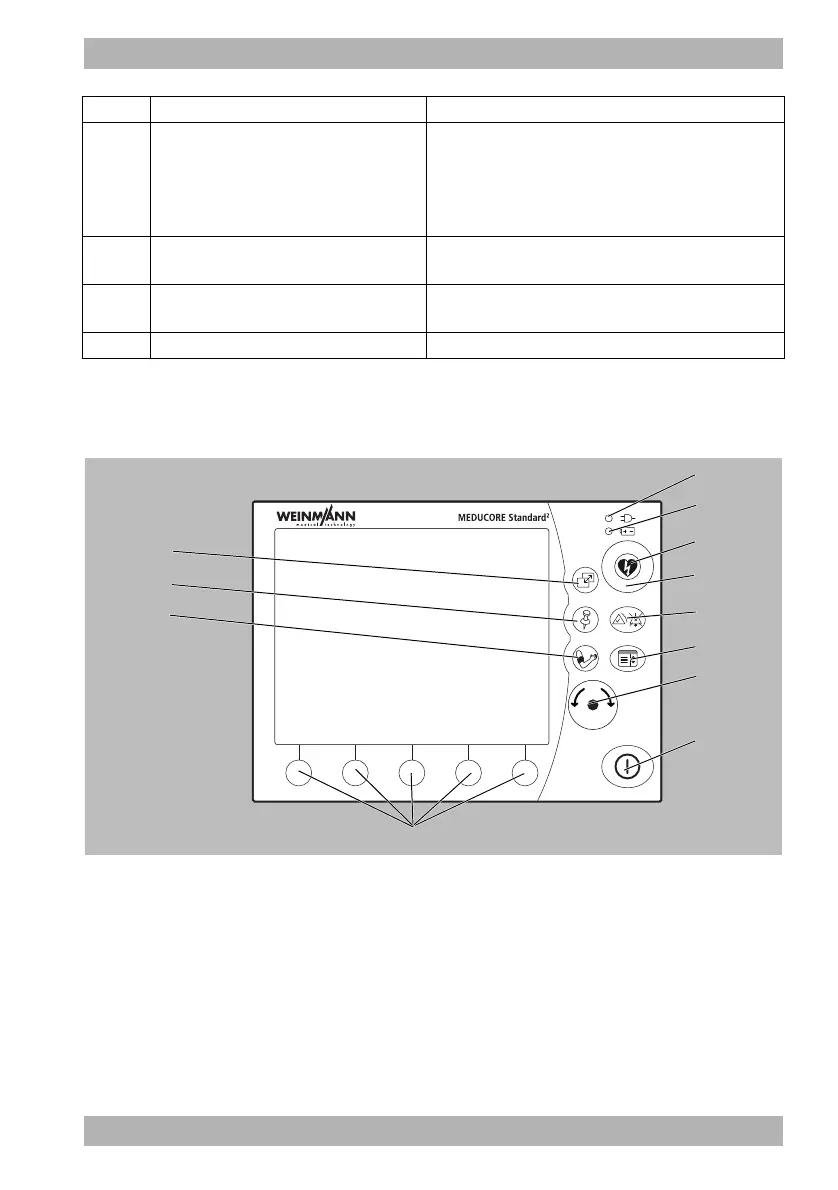

3.2 Control panel
3-2 Control panel
8 Pad connection for master cable
Connects the device to one of the following
components via the master cable:
• Defibrillation electrodes
•Paddles
• Function test resistor
9
SpO
2
port for pulse oximetry sensor
connecting cable
Connects the device to a pulse oximetry sensor via the
pulse oximetry sensor connecting cable.
10
NIBP connection for NIBP connecting
tube
Connects the device to an NIBP cuff via the NIBP
connecting tube.
11 Battery compartment with battery Houses the battery.
No. Designation Description
1
2
3
7
5
6
12
10
11
8
9
4
