4 Preparation
4.1.2 Mounting the device on the portable unit
Follow the instructions for use of the portable unit.
4.2 Stowing components and accessories
4.2.1 Stowing components and accessories in the
protective transport bag
Requirement The device is mounted in the protective transport bag (see “4.1.1
Mounting the device in the protective transport bag”, page 74).
1. Release the magnetic catch of the protective transport bag and
open the viewing window.
2. Open the side compartments.
3. If there is a divider in the left-hand side compartment: Remove
the divider.

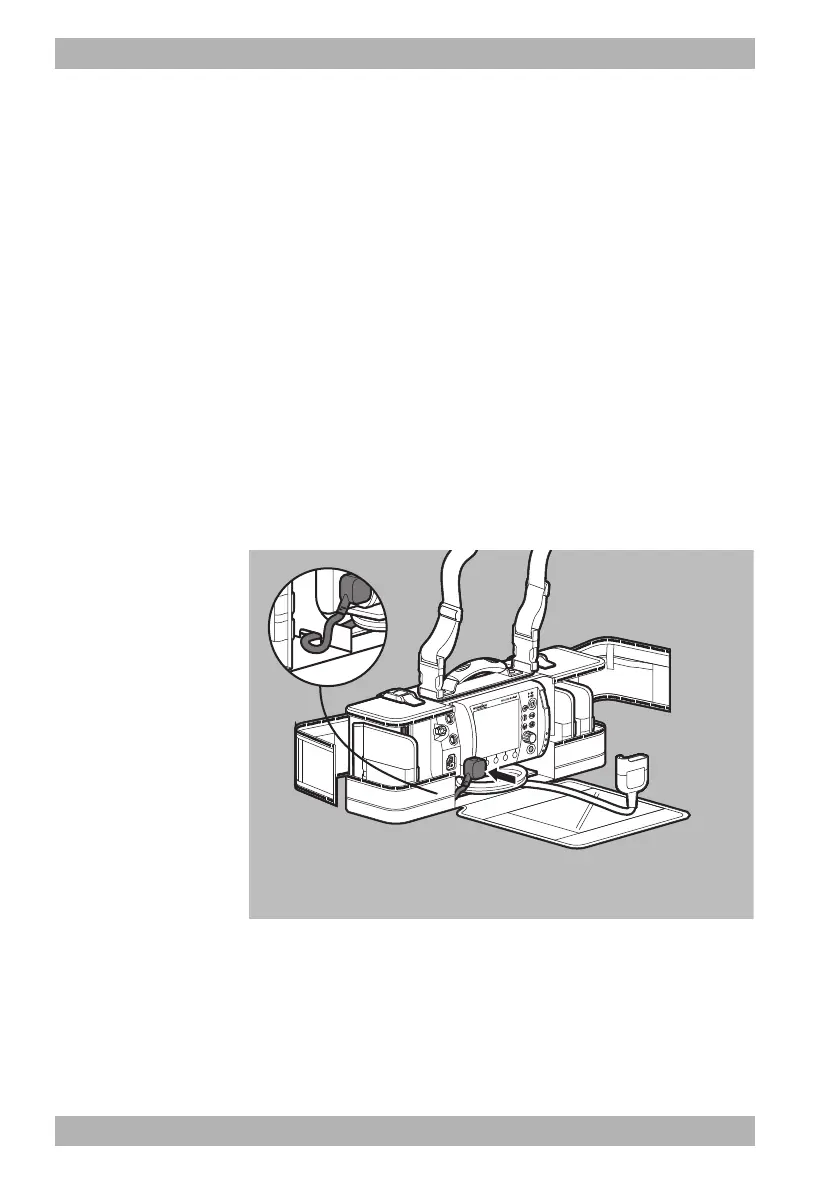

4. Guide the master cable through the opening between the left-
hand side compartment and the device compartment of the
protective transport bag.
5. Connect the master cable connector to the Pad connection for
master cable on the device.
