Weinmann MEDUCORE Standard2 - Description; Device Overview

34 EN MEDUCORE Standard
2
WM 68401 04/2021
3 Description
3 Description
3.1 Overview

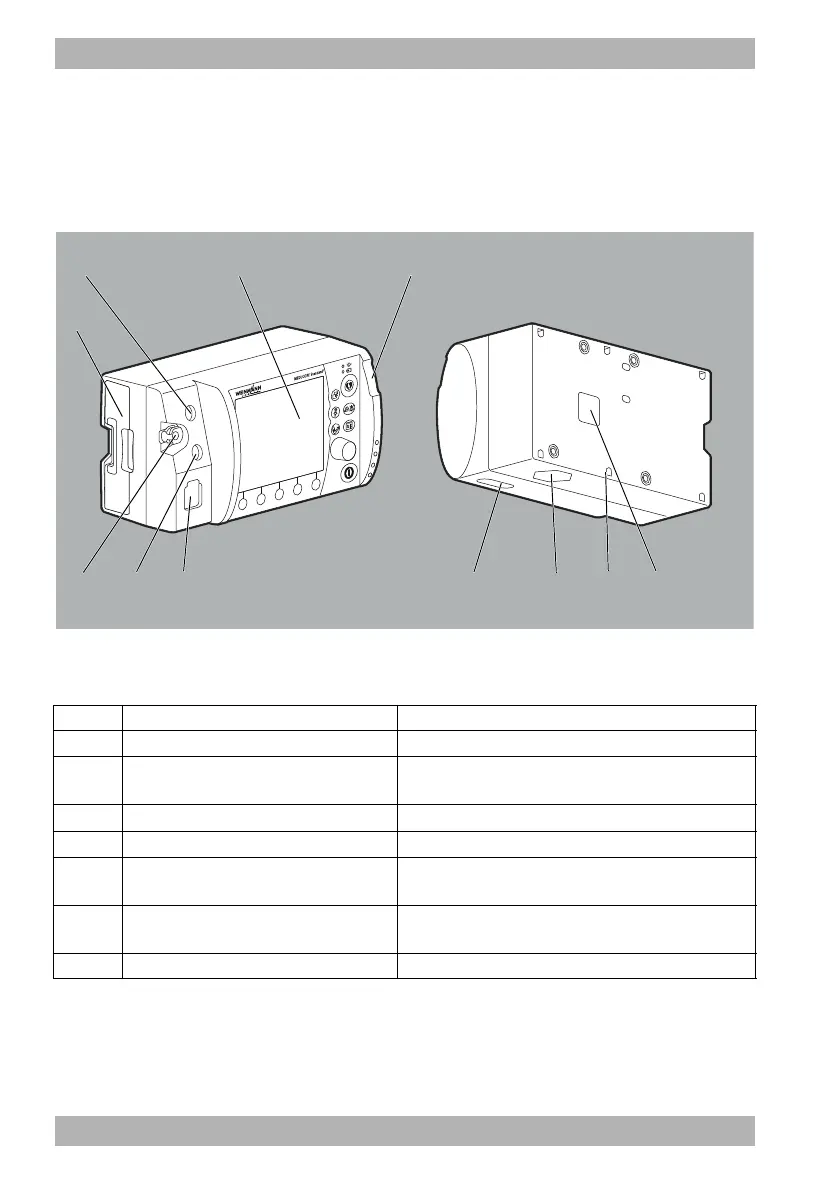

3-1 Device
13
10 9
2
8
11
76
45
No. Designation Description
1 ECG connection for ECG cable Connects the device to an ECG cable.
2 Display
Displays settings and current values (see “3.4 Symbols
in the display”, page 54).
3 Alarm light Indicates high-priority alarms visually.
4 Power supply connection Connects the device to the power supply.
5 Security seal
Indicates whether the device has been opened without
authorization.
6 Loudspeaker
Emits audible voice prompts, alarms and heart rate
tones/pulse tones.
7 SD card slot Takes an SD card.
