3 Description

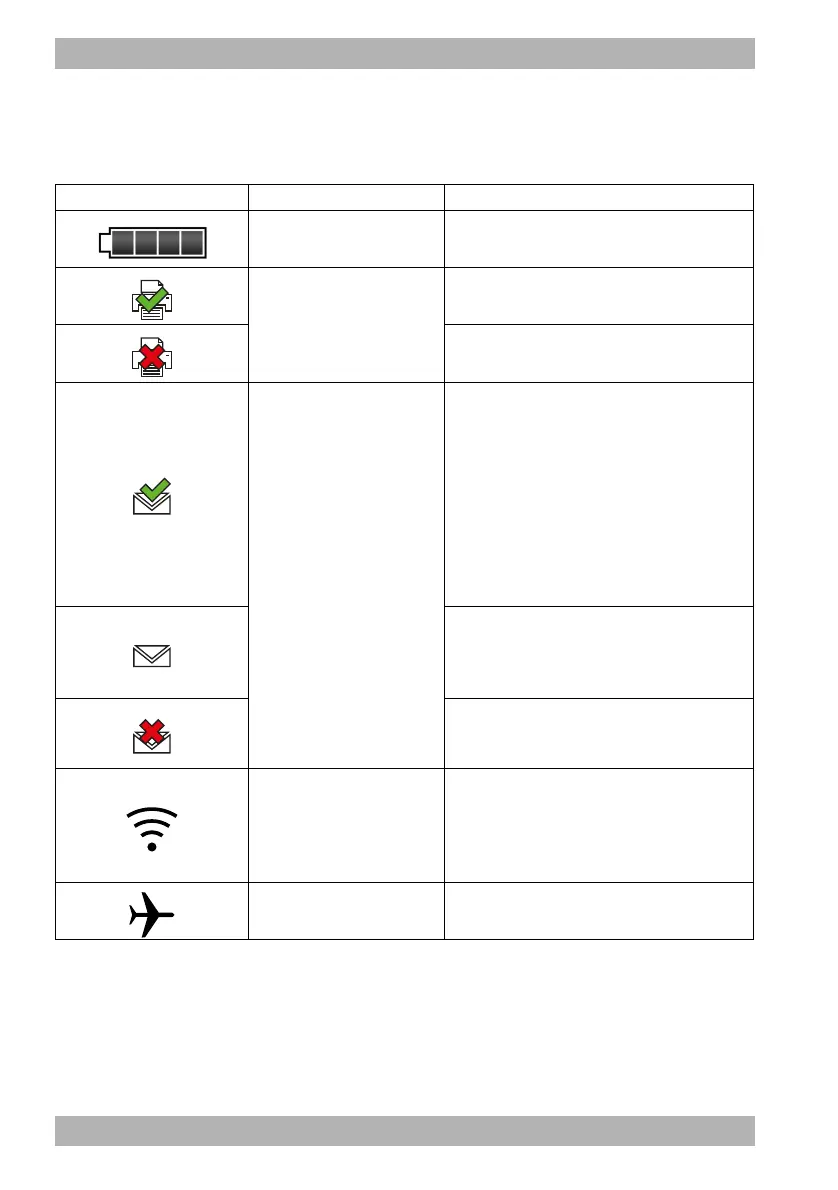

3.4 Symbols in the display
Symbol Designation Description
Battery status symbol
Battery status (see “3.5 Battery and battery
status indicator”, page 57)
Printer symbol (only with
Printing option)
Printer connected
No printer connected
Upload symbol: Only
displayed if a 12-lead ECG
has already been delivered in
the current session (only with
E-mail delivery 12-lead ECG
option) or when data have
been uploaded.
• Last e-mail delivery 12-lead ECG
successful (only with E-mail delivery 12-
lead ECG option)
• Function check uploaded to
WEINMANN Connect successfully
• Session data uploaded to
WEINMANN Connect successfully (only
with Upload session data option)
• Service data uploaded to
WEINMANN Emergency successfully
Symbol moves:
• Sending e-mail with 12-lead ECG (only
with E-mail delivery 12-lead ECG option)
• Uploading data to WEINMANN Connect
• Last e-mail delivery failed (only with E-
mail delivery 12-lead ECG option)
• Upload to WEINMANN Connect failed
WiFi symbol
• Indicates whether the default network can
be reached.
• Displays the signal strength of the WiFi
connection: The more bars displayed, the
stronger the signal.
Airplane mode symbol
Indicates that all wireless connections are
switched off.
