3 Description
3.7 Printer and printer display
3-12 Printer and printer display
6
7
312
11
9
10
8
14
13
15 1
2
4
5

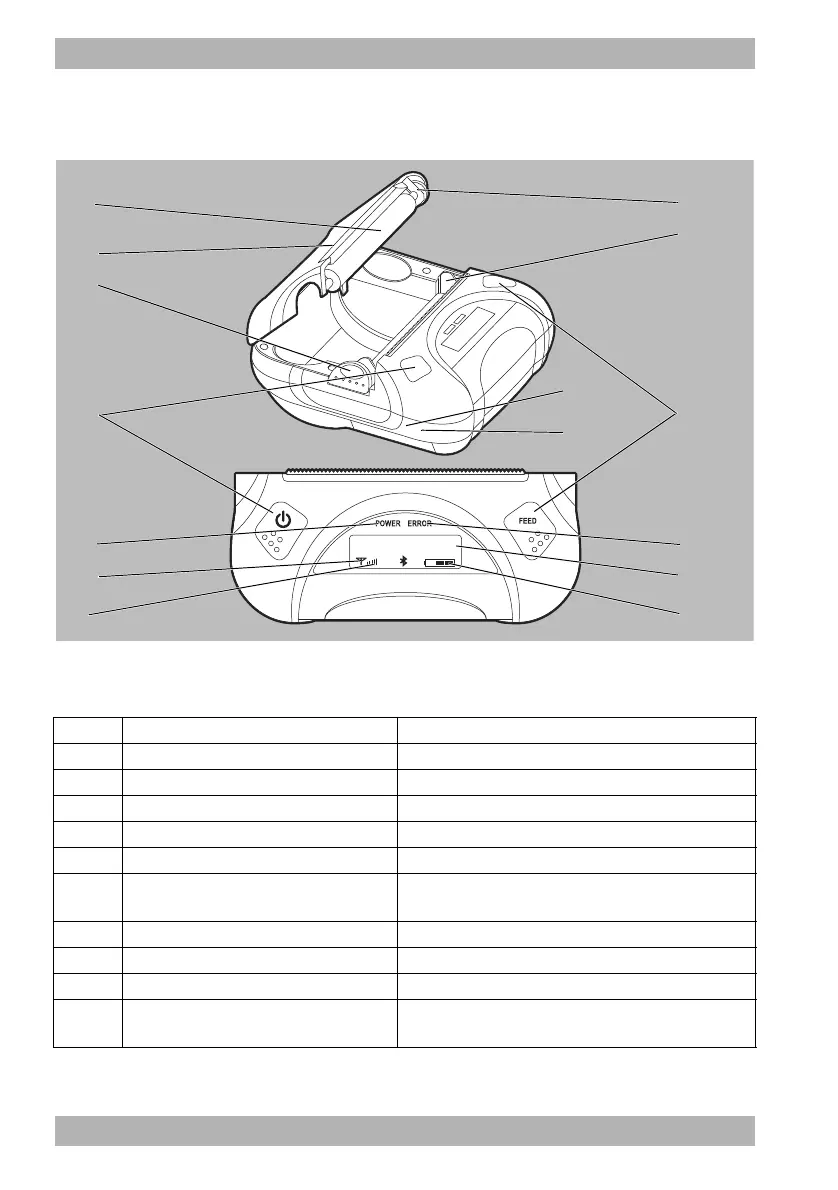

No. Designation Description
1 Feed mechanism Drives the feed roller.
2 Print head Prints the printer paper.
3 Feed button (FEED) Press and hold: Feeds the printer paper.
4 USB port (hidden) For service purposes only.
5 Charging interface (hidden) Not in use.
6 Error indicator (ERROR)
• Flashes when an error has occurred.
• Flashes red during switching on/switching off.
7 LCD display Indicates printer status.
8 Battery status indicator Indicates the status of the printer battery.
9 Strength indicator Indicates the strength of the connection.
10 Connection indicator
Indicates that a connection has been set up between
the printer and the device.
