6 Operation

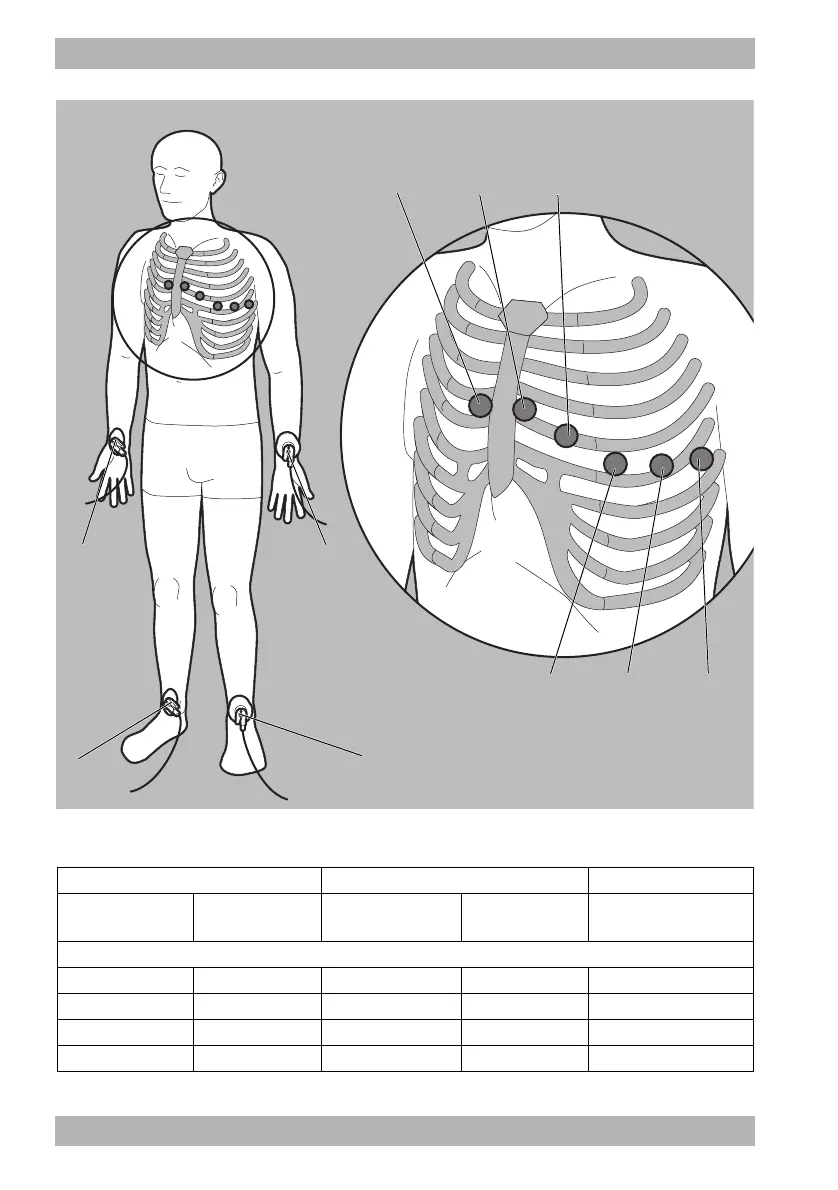

11. Attach and firmly press on the ECG electrodes as follows:
R/RA L/LA
F/LLN/RL
C1/V1 C2/V2 C3/V3
C4/V4 C5/V5 C6/V6
Code 1/ERC (Europe) Code 2/AHA (USA)
Electrode
marking
Color coding
Electrode
marking
Color coding Application site
Limb electrodes
R Red RA White Right arm
L Yellow LA Black Left arm
F Green LL Red Left leg
N Black RL Green Right leg
