56 EN MEDUCORE Standard
2
WM 68401 04/2021

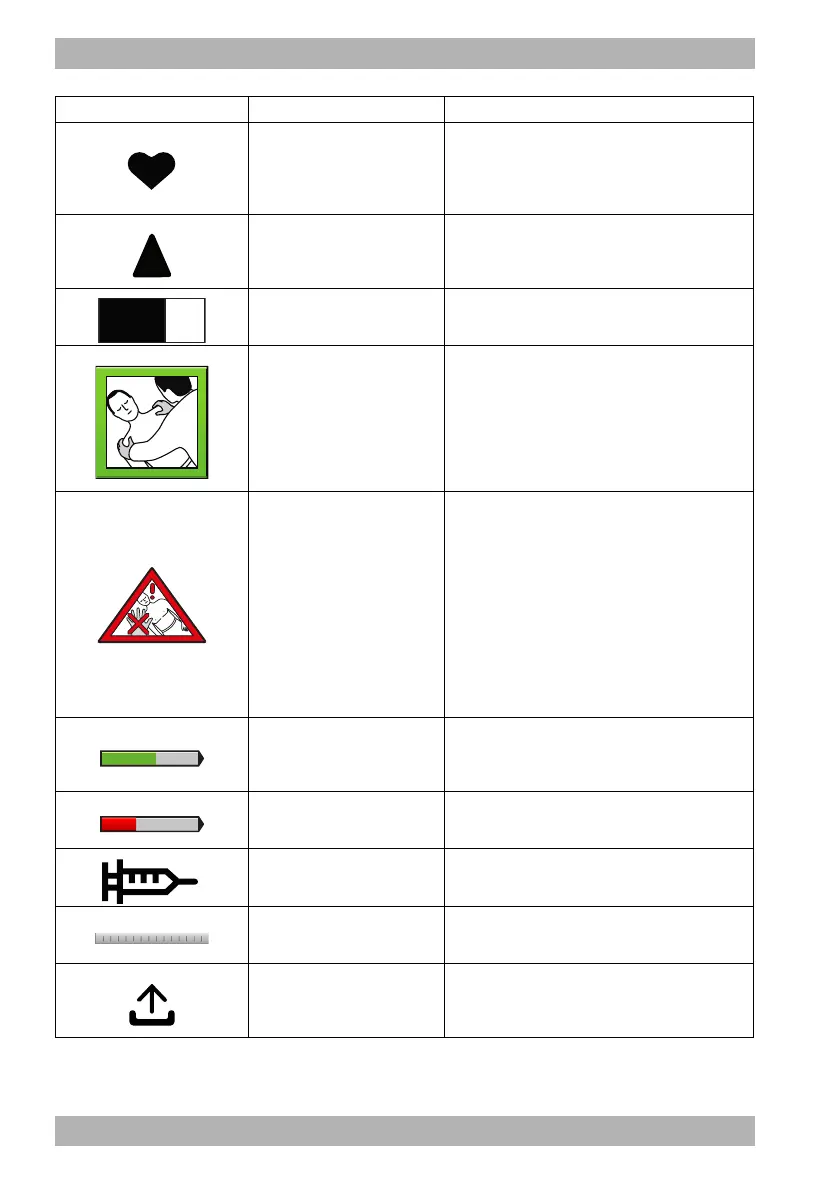

3 Description
Heart symbol
•In the HR parameter field: Flashes at the
measured heart rate.
•In the Pulse parameter field: Flashes at
the measured pulse rate.
R wave marking (only with
cardioversion option and
only in manual mode)
Marks the R waves detected by the device for
cardioversion.
Signal bar
Indicates the signal quality of SpO
2
measurement.
You may now touch the
patient (in AED mode with
the Pictograms in
parameter view menu
item activated (see “13.3
AED settings”, page 310))
You may now touch the patient
Stand clear of the patient:
• In AED mode with the
Pictograms in
parameter view menu
item activated (see
“13.3 AED settings”,
page 310)
• In 12-lead ECG function
mode (only with 12-lead
ECG option)
Stand clear of the patient
Progress display of 12-lead
ECG (only with 12-lead ECG
option)
Indicates how far the 12-lead ECG has already
recorded.
Progress display of shock
capacitor charging
Indicates how far the shock capacitor has
already been charged.
Symbol for venous stasis
Indicates that venous stasis has been carried
out.
Timeline (only with Replay
view option)
Displays the duration of an event in replay
view.
Upload session data (only
with Upload session data
option)
Displays access to session data upload.
Symbol Designation Description
