Xerox ColorQube 9301

February 2013
5-11
ColorQube® 9303 Family
PL 5.30
Parts Lists

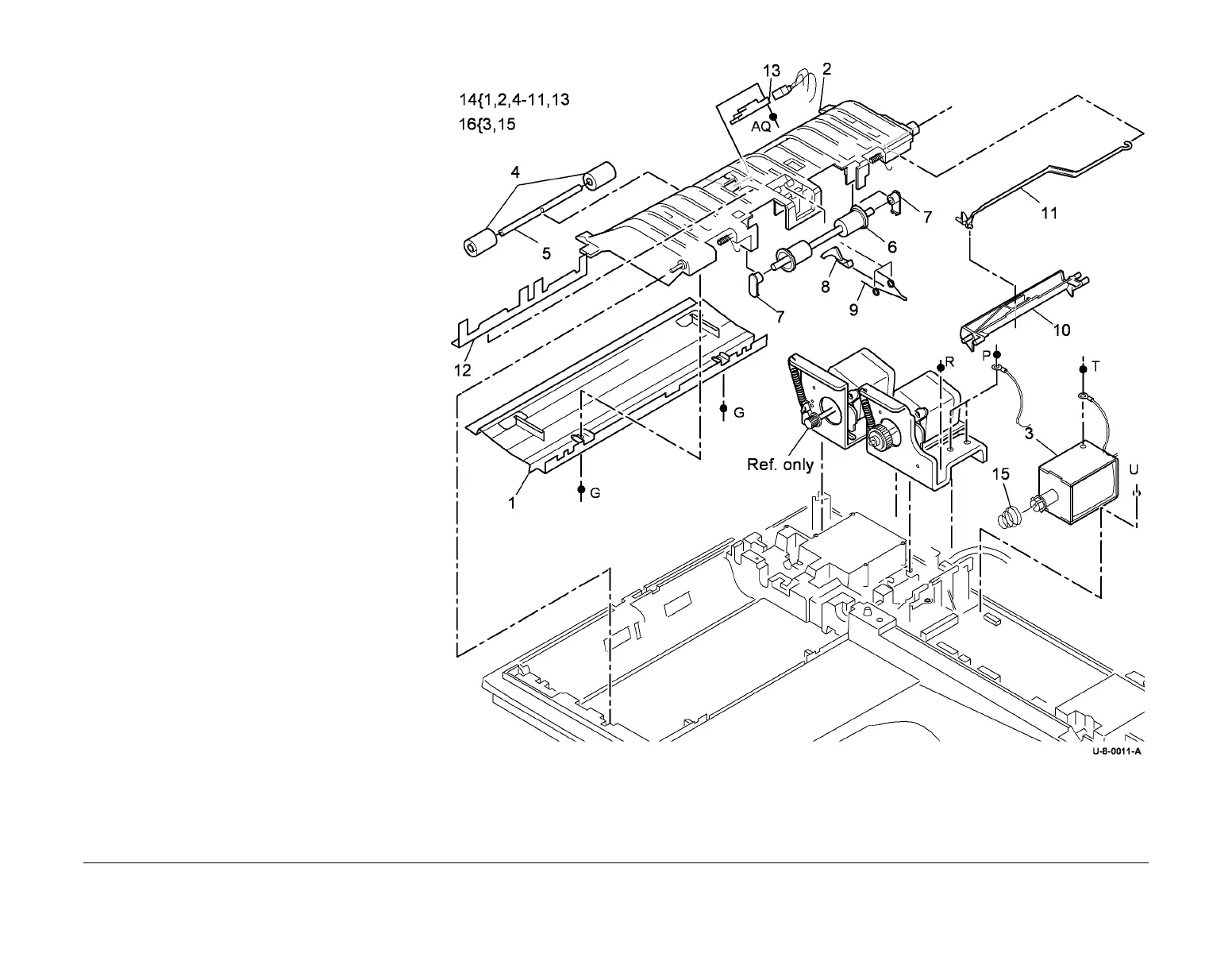

PL 5.30 Baffle Assembly
Item Part Description
1 – Lower cover (P/O PL 5.30 Item 14)
2 038E34361 Lower baffle
3 121E20060 DADH Duplex solenoid (SOL05-
100) (REP 5.7)
4 022E25061 Post scan idlers
5 – Shaft (P/O PL 5.30 Item 14)
6 059K43910 Exit roll idlers (REP 5.18)
7 – Bearing (P/O PL 5.30 Item 14)
8 – Document finger (P/O PL 5.30 Item
14)
9 – Torsion spring (P/O PL 5.30 Item
14)
10 – Lift bar (P/O PL 5.30 Item 14)
11 – Link arm (P/O PL 5.30 Item 14)
12 – Mylar guide strip (P/O PL 31.11
Item 14) (REP 5.20)
13 130E11500 DADH exit sensor (Q05-209) (REP
5.11)
14 055K37583 Lower baffle assembly (REP 5.5)
15 – Solenoid spring (P/O PL 5.30 Item
16)
16 121K44520 DADH Duplex solenoid assembly
