February 2013
4-399
ColorQube® 9303 Family
ADJ 12.1-171
Repairs/Adjustments
ADJ 12.1-171 Machine to HVF / HVF BM, HVF BM to Tri-
Folder Alignment
Purpose
To correctly align the HVF / HVF BM to achieve reliable transfer of paper from the machine to
the output tray.
To correctly align the tri-folder, to achieve reliable transfer of paper from the HVF BM to the out-
put tray
Check
• Ensure the HVF / HVF BM is aligned both vertically and horizontally with the machine. If
necessary perform the adjustment, Figure 1.
• Ensure the Tri-folder is aligned vertically and horizontally with the HVF / HVF BM. If nec-
essary perform the adjustment, Figure 2.
Adjustment
WARNING
Ensure that the electricity to the machine is switched off while performing tasks that do
not need electricity. Refer to GP 14. Disconnect the power cord. Electricity can cause
death or injury. Moving parts can cause injury.

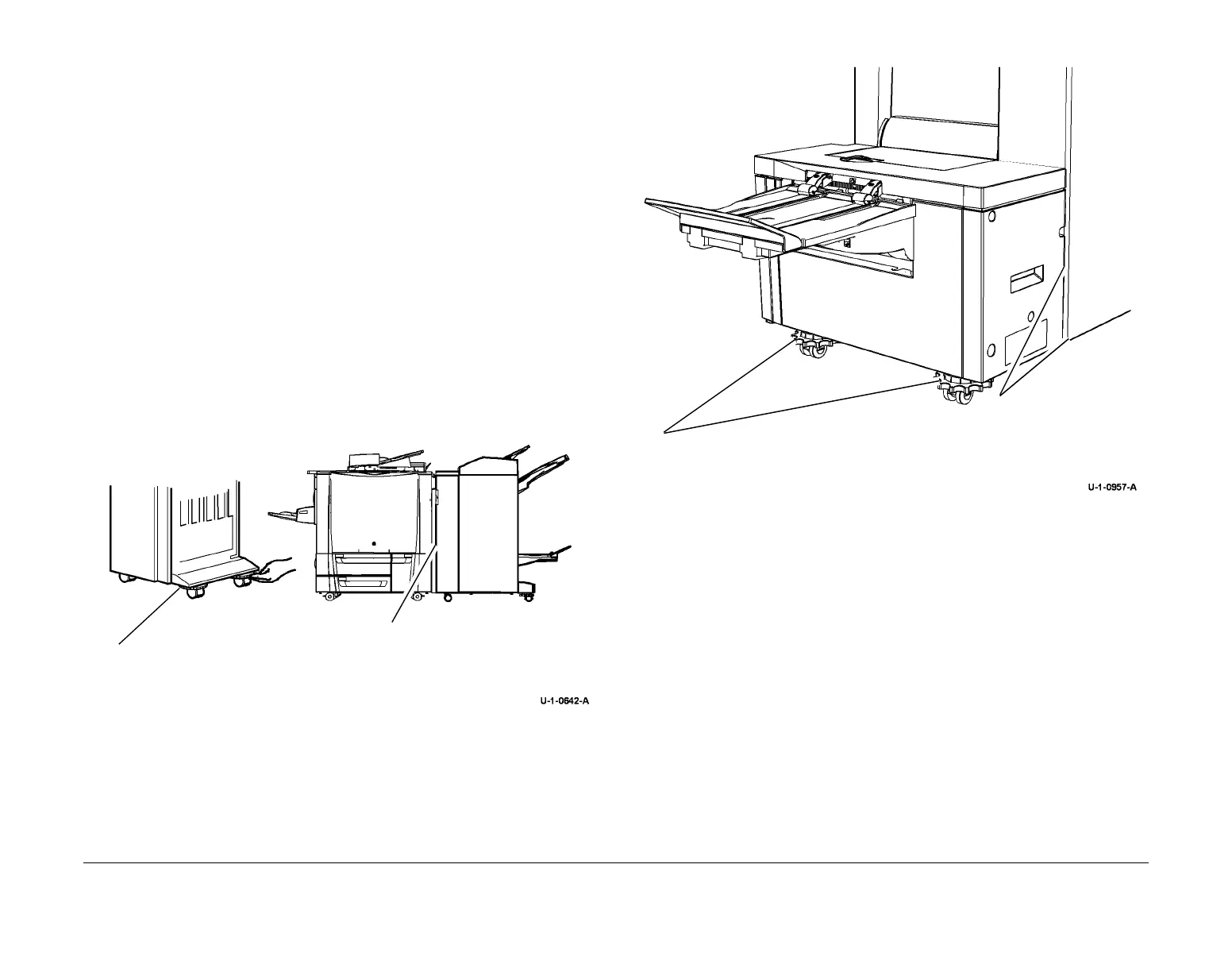

Figure 1 Machine to HVF BM alignment
Figure 2 Tri-folder to HVF BM alignment
1
Rotate the adjustable casters
2
Ensure the HVF / HVF BM is
aligned vertically and horizontally
with the machine.
1
Rotate the adjustable casters.
2
Ensure the tri-folder is
aligned vertically and hori-
zontally with the HVF BM.
To Next Page
