ColorQube® 9303 Family
PL 12.30
Parts Lists

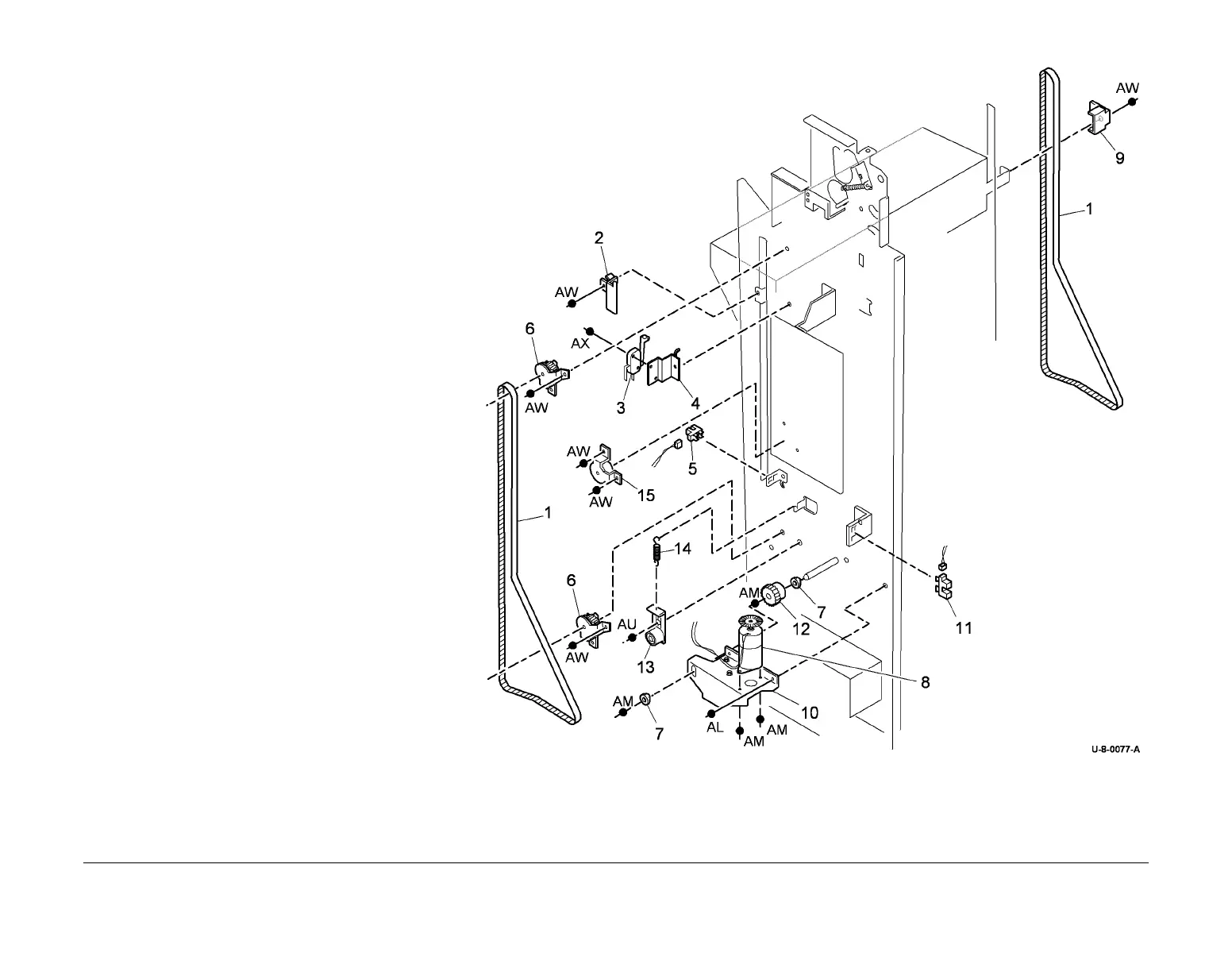

PL 12.30 LCSS Bin 1 Control
Components (1 of 2)
Item Part Description
1 023E24320 Bin 1 drive belt (REP 12.5-110)
2 – Rear belt clamp (Not spared) (ADJ
12.1-110)
3 110E20180 Bin 1 upper limit switch (S12-190)
4 – Sensor bracket (Not spared)
5 130E10360 Bin 1 90% full sensor (Q12-187)
6 – Pulley (Not spared)
7 – Bearing (Not spared)
8 127K55890 Bin 1 elevator motor (MOT12-241)
9 – Front belt clamp (Not spared) (ADJ
12.1-110)
10 – Motor bracket (Not spared)
11 130E12330 Bin 1 motor encoder sensor (Q12-
163)
12 – Pulley assembly (Not spared)
13 – Belt tensioner (Not spared)
14 – Spring (Not spared)
15 – Idler (Not spared)
