February 2013
4-38
ColorQube® 9303 Family
REP 5.2
Repairs/Adjustments
REP 5.2 Top Access Cover Assembly
Parts List on PL 5.20
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Open the DADH top cover.
2. Remove the DADH rear cover, PL 5.10 Item 1.
3. Remove the DADH top cover assembly, REP 5.1.
4. Remove the DADH top access cover assembly, Figure 1.

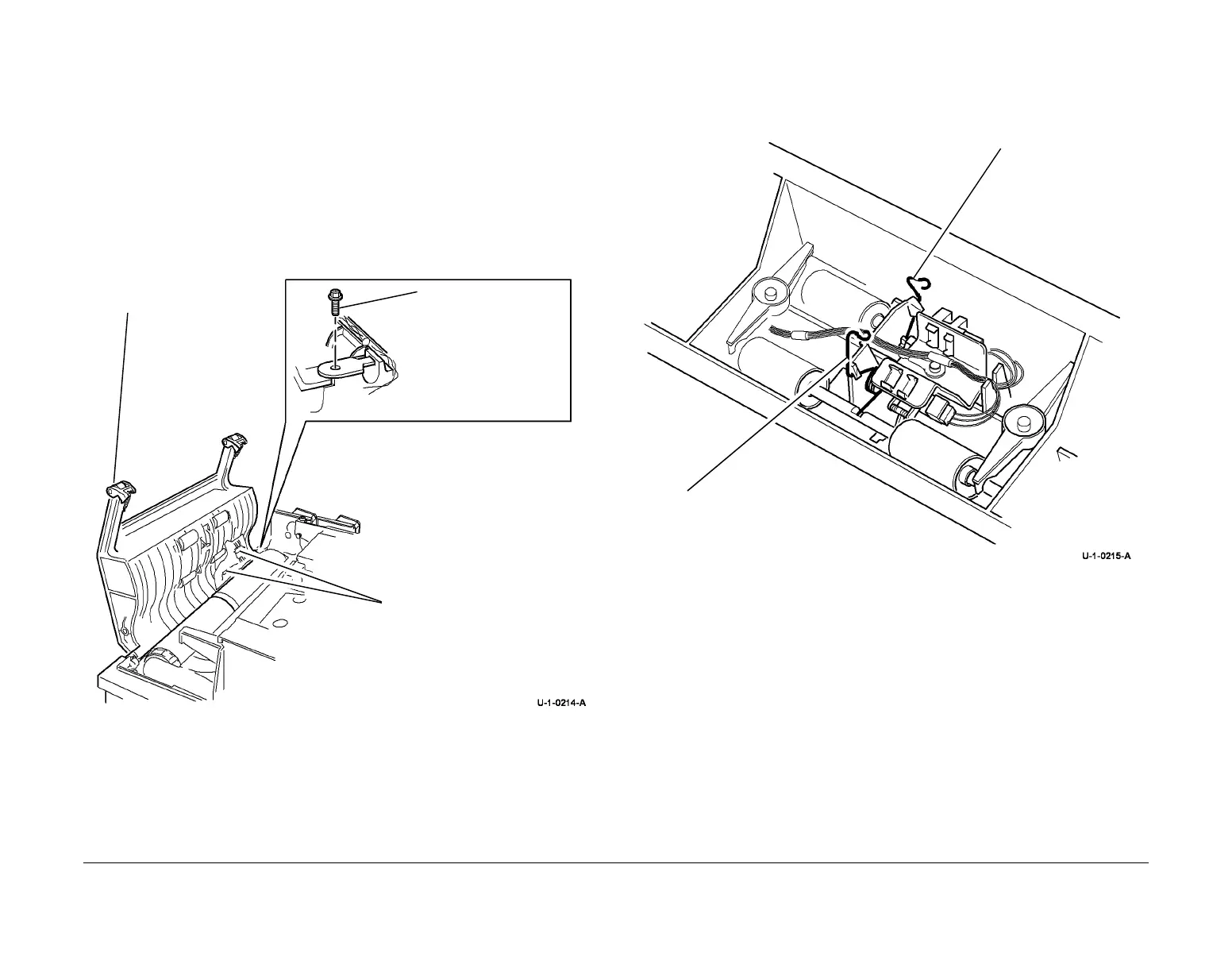

Figure 1 Top access cover assembly
Replacement
The replacement is the reverse of the removal procedure. Make sure that the 2 springs on the
idler rolls are in the correct position, Figure 2. Then install the top cover.
Figure 2 Torsion springs
2
Remove the screw and
the bracket.
3
Remove the top access
cover assembly.
1
Disconnect PJ191 and
the ground harness.
Takeaway idler roll
torsion spring
CVT idler roll torsion
spring
To Next Page
