February 2013
5-87
ColorQube® 9303 Family
PL 81.30
Parts Lists

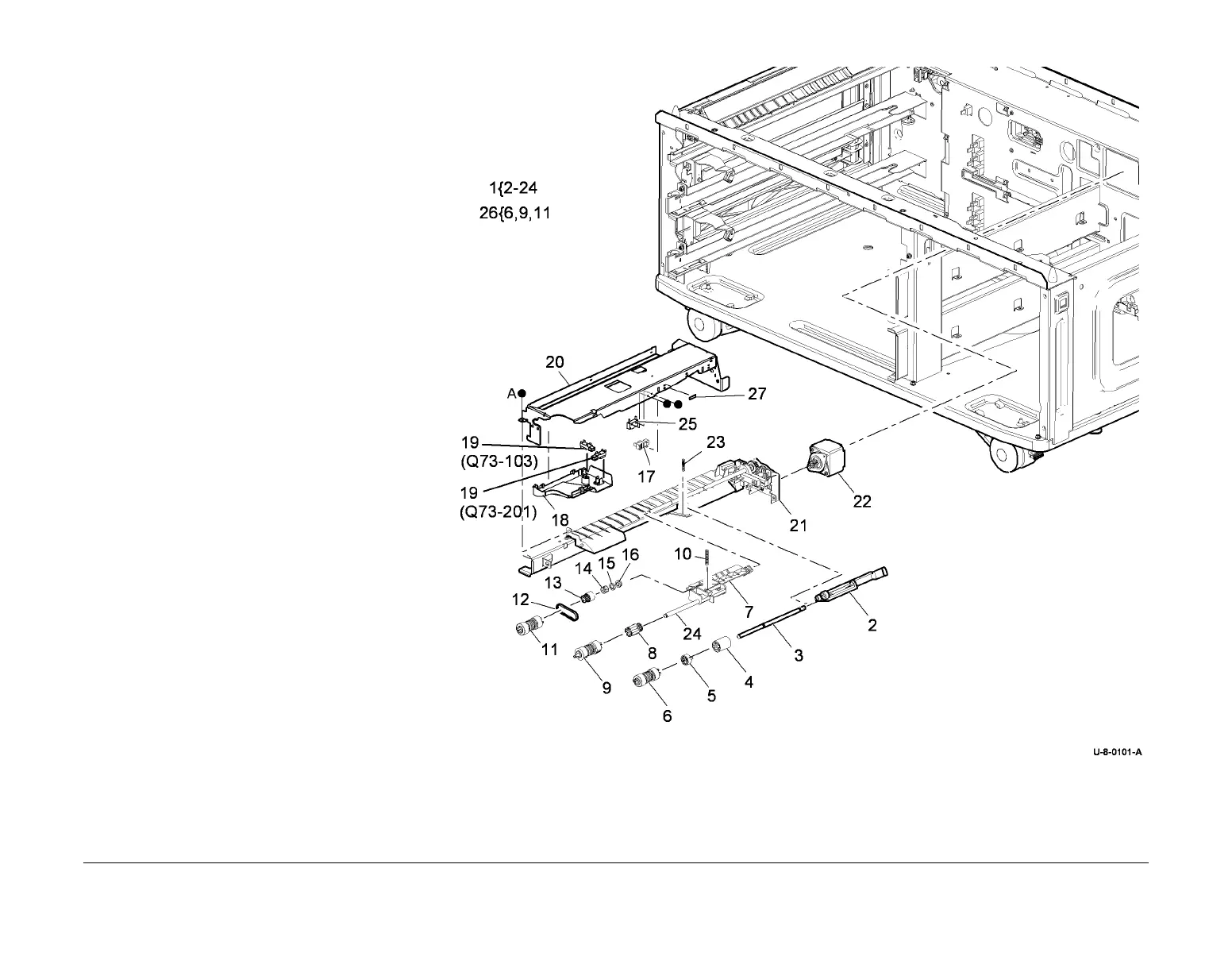

PL 81.30 Tray 3 Paper Feed Assembly
Item Part Description
1 059K64464 Feedhead assembly (REP 81.2)
2 – Retard roll support (P/O PL 81.30
Item 1)
3 – Retard roll shaft (P/O PL 81.30 Item
1)
4 – Clutch assembly (P/O PL 81.30
Item 1)
5 – Coupling (P/O PL 81.30 Item 1)
6 – Retard roll assembly (REP 81.5) (P/
O PL 81.30 Item 26) (See NOTE)
7 – Nudger roll support (P/O PL 81.30
Item 1)
8 – Nudger pulley (P/O PL 81.30 Item
1)
9 – Nudger roll assembly (REP 81.5)
(P/O PL 81.30 Item 26) (See
NOTE)
10 809E94921 Spring
11 – Feed roll assembly (REP 81.5) (P/
O PL 81.30 Item 26) (See NOTE)
12 – Drive belt (P/O PL 81.30 Item 1)
13 – Drive clutch (P/O PL 81.30 Item 1)
14 – Feed pulley (P/O PL 81.30 Item 1)
15 – Washer (P/O PL 81.30 Item 1)
16 – Bearing (P/O PL 81.30 Item 1)
17 130E18220 Stack height sensor (Q73-383)
(REP 73.4)
18 038E41311 Guide
19 130E11610 Tray empty sensor (Q73-201)/Feed
sensor (Q73-103) (REP 81.9)
20 – Cover (P/O PL 81.30 Item 1)
21 – Elevator coupling assembly (P/O
PL 81.30 Item 1)
22 – T3 feed motor (MOT73-001) (P/O
PL 81.30 Item 1)
23 – Spring (P/O PL 81.30 Item 1)
24 – Nudger roll shaft (P/O PL 81.30
Item 1)
25 – Tray up limit switch (S73-384) (P/O
PL 81.30 Item 1)
26 – Feed roll kit (REF: PL 31.11 Item
26)
27 014E68410 Shim
NOTE: To reset the HFSI count, go to dC135
.
