February 2013
5-57
ColorQube® 9303 Family
PL 12.310
Parts Lists

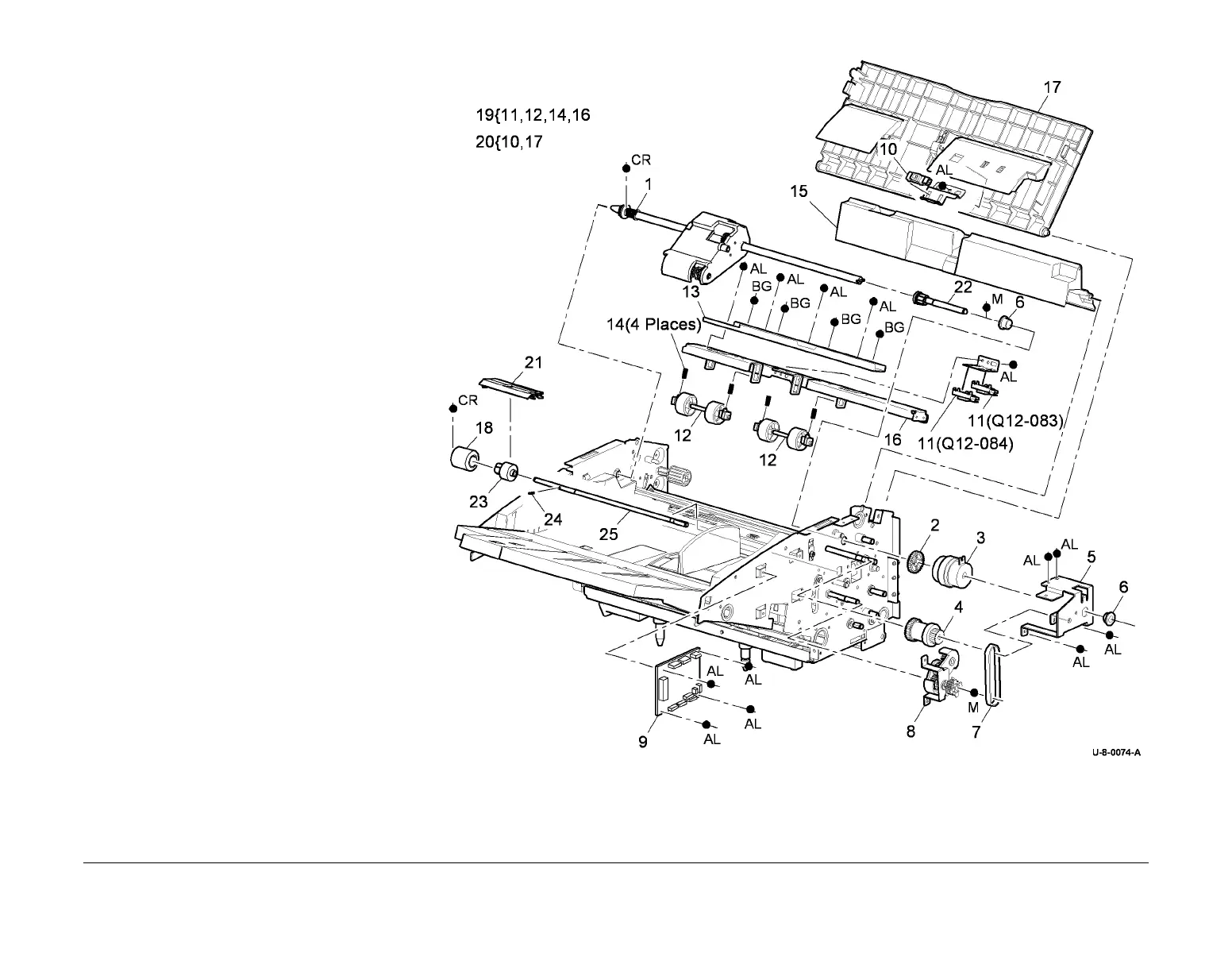

PL 12.310 Inserter Main Drives (2 of 3)
Item Part Description
1 050K68520 Pickup assembly (REP 12.95-171)
(See NOTE)
2 – Pickup gear (Not spared)
3 005K12890 Inserter clutch (CL12-260) (REP
12.86-171)
4 – Reverse roller drive idler (Not
spared)
5 – Pickup assembly bracket (Not
spared)
6 – Bearing (Not spared)
7 – Reverse roller drive belt (Not
spared)
8 – Reverse roller drive (Not spared)
9 960K46170 Inserter PWB (REP 12.85-171)
10 – Inserter pickup sensor (Q12-315)
(REP 12.91-171)
11 – Inserter LE sensor (Q12-083)/
Inserter TE sensor (Q12-084) (REP
12.93-171)
12 – Idle roller (Not spared) (REP 12.98-
171)
13 – Idler roller bracket (Not spared)
14 – Idler roller spring (Not spared)
15 – Top inside cover (Not spared)
16 – Idler roller cover
17 – Top cover (REP 12.91-171)
18 050K68090 Reverse feed roller (REP 12.95-
171)
19 006K32860 Idle roller assembly (REP 12.98-
171)
20 848K31360 Top cover door assembly
21 848K37330 Retard cover
22 – Drive coupling (Not spared)
23 – Reverse feed roll core (Not spared)
24 – Pin (Not spared)
25 – Shaft (Not spared)
NOTE: To reset the HFSI count, go to dC135.
