February 2013
5-52
ColorQube® 9303 Family
PL 12.205
Parts Lists

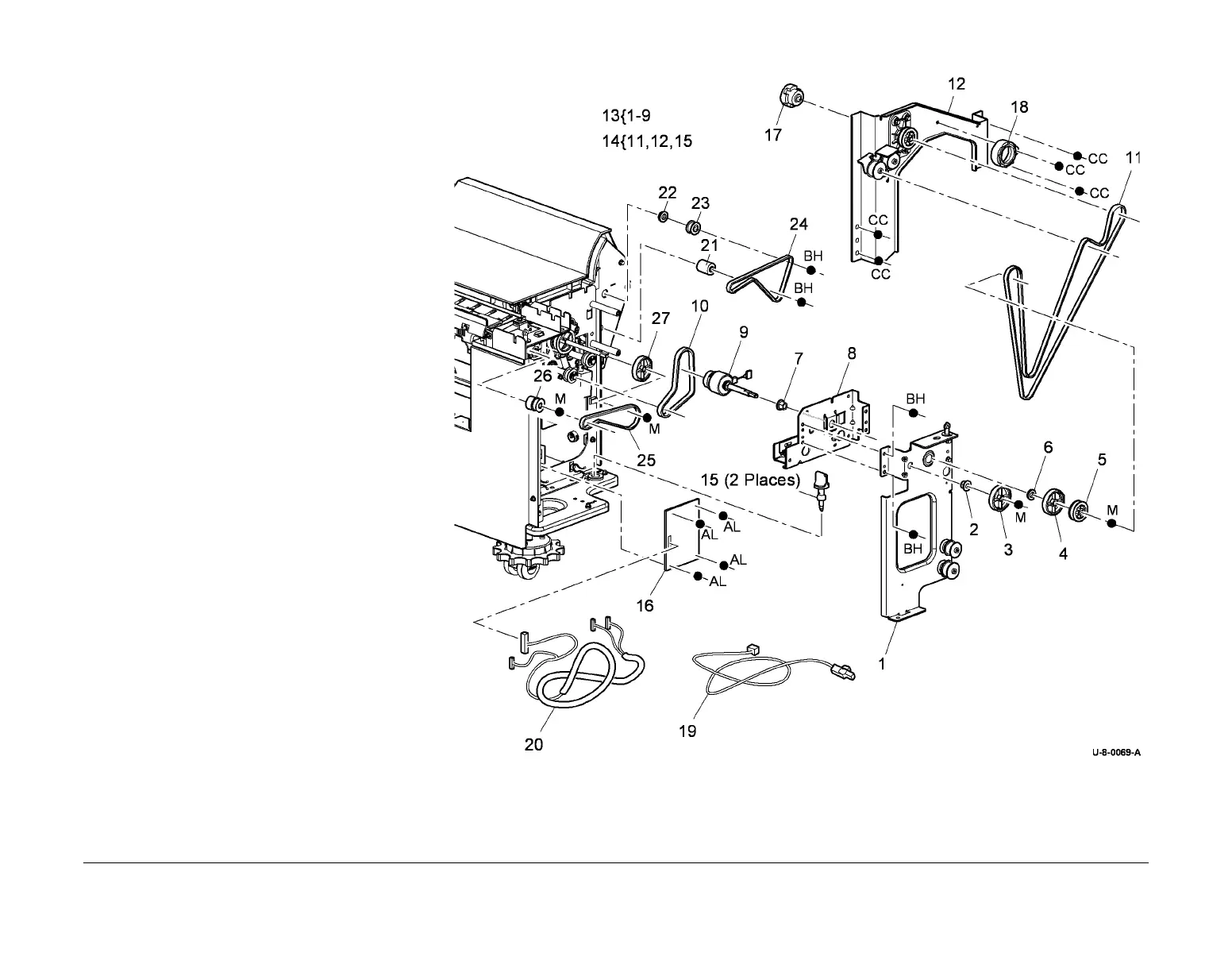

PL 12.205 Tri-Folder Drives Module
Item Part Description
1 – Drive coupling assembly bracket
(P/O PL 12.205 Item 13)
2 – Bearing (P/O PL 12.205 Item 13)
3 – Feed/exit roll drive gear (40T) (P/O
PL 12.205 Item 13)
4 – Gear (40T) (Black) (P/O PL 12.205
Item 13)
5 – Driven pulley (P/O PL 12.205 Item
13)
6 – Bearing (P/O PL 12.205 Item 13)
7 – Bearing (P/O PL 12.205 Item 13)
8 – Idler assembly bracket (P/O PL
12.205 Item 13)
9 – Drive clutch (CL12-269) (P/O PL
12.205 Item 13)
10 – Crease roll belt (Not spared)
11 023E30780 Coupler drive belt (REP 12.68-171)
12 007K14460 Install kit drive assembly
13 005K12690 Drive coupling assembly (REP
12.69-171)
14 675K53640 Tri-Folder install kit (REP 12.68-
171)
15 – Thumb screw (P/O PL 12.205 Item
14)
16 960K24000 Tri-folder PWB (REP 12.80-171)
17 – Drive coupler (Not spared)
18 – Align gauge coupler (Not spared)
19 962K49592 Bin 2 tray harness (REP 12.81-171)
20 962K49571 Bookletmaker PWB to Tri-folder
PWB harness (PJ602)
21 – Drive belt tensioner pulley (Not
spared)
22 – Feed roller bearing (Not spared)
23 – Feed roll pulley (Not spared) (REP
12.70-171)
24 – Feed roll belt (Not spared) (REP
12.70-171)
25 023E23370 Feed roll drive belt
26 020E39921 Pulley gear (19T/20T) (BM)
27 020E39930 Pulley (38T)
