ColorQube® 9303 Family
PL 81.11
Parts Lists

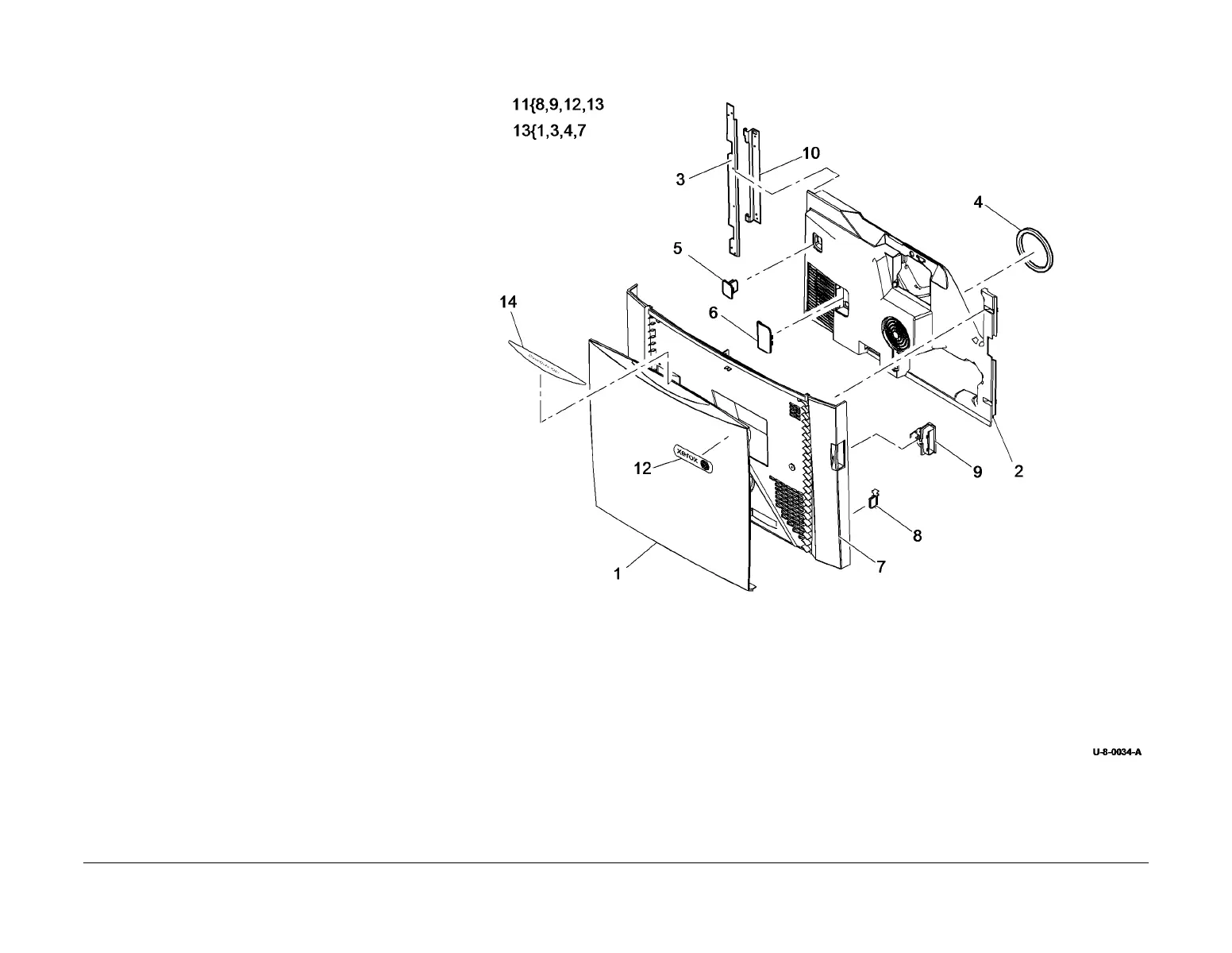

PL 81.11 Front Door Assembly
Item Part Description
1 – Front door shield (P/O PL 81.11
Item 13)
2 848K31753 Inner cover
3 – Hinge assembly (P/O PL 81.11 Item
13)
4 – Foam seal (P/O PL 81.11 Item 13)
5 848E45930 Dongle cover
6 848E45940 Shipping restraint cover
7 – Front door moulding (P/O PL 81.11
Item 13)
8 – Access magnetic catch (P/O PL
81.11 Item 11)
9 848E45920 Front door handle
10 848E46011 Front door bracket (attached to
frame)
11 848K66270 Front door assembly
12 – Xerox logo (P/O PL 81.11 Item 11)
13 – Door shield assembly (P/O PL
81.11 Item 11)
14 – Name plate label (see below for
variants)
– 898E35560 9301 Label
– 898E35570 9302 Label
– 898E35580 9303 Label
