ColorQube® 9303 Family
REP 10.15
Repairs/Adjustments
REP 10.15 Duplex Start Sensor (13)
Parts List on PL 10.15
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the exit paper path, REP 10.20.
2. Remove the diverter gate, REP 10.13.

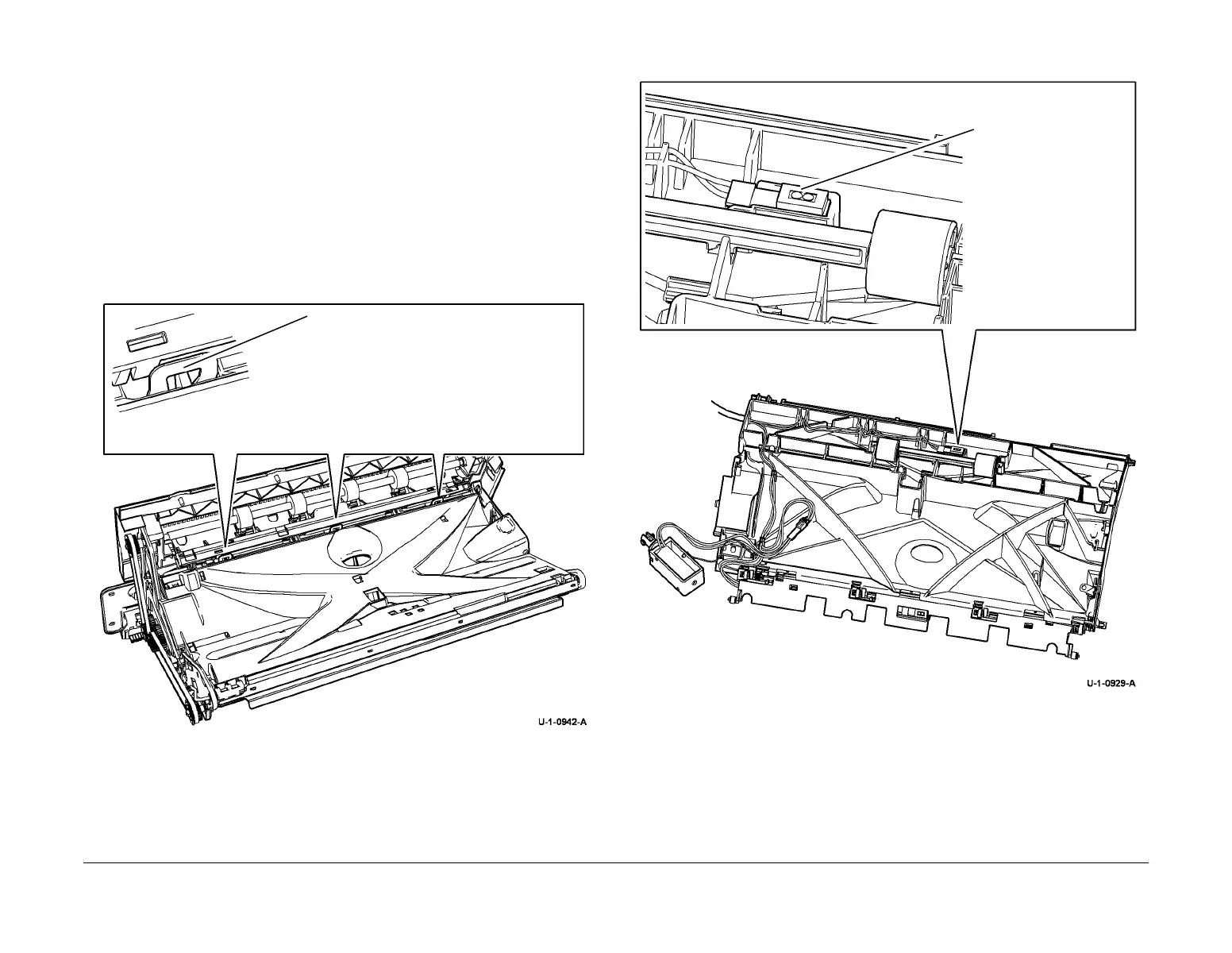

3. Remove the paper guide, Figure 1.
Figure 1 Paper guide removal
4. Remove the duplex sensor, Figure 2.
Figure 2 Sensor removal
1
With the jam clearance door opened, release the
3 retaining tabs. Then remove the inner paper
guide.
1
Remove the sensor then
disconnect the harness.
