Xerox ColorQube 9301 Service Manual

February 2013
5-59
ColorQube® 9303 Family
PL 20.05
Parts Lists

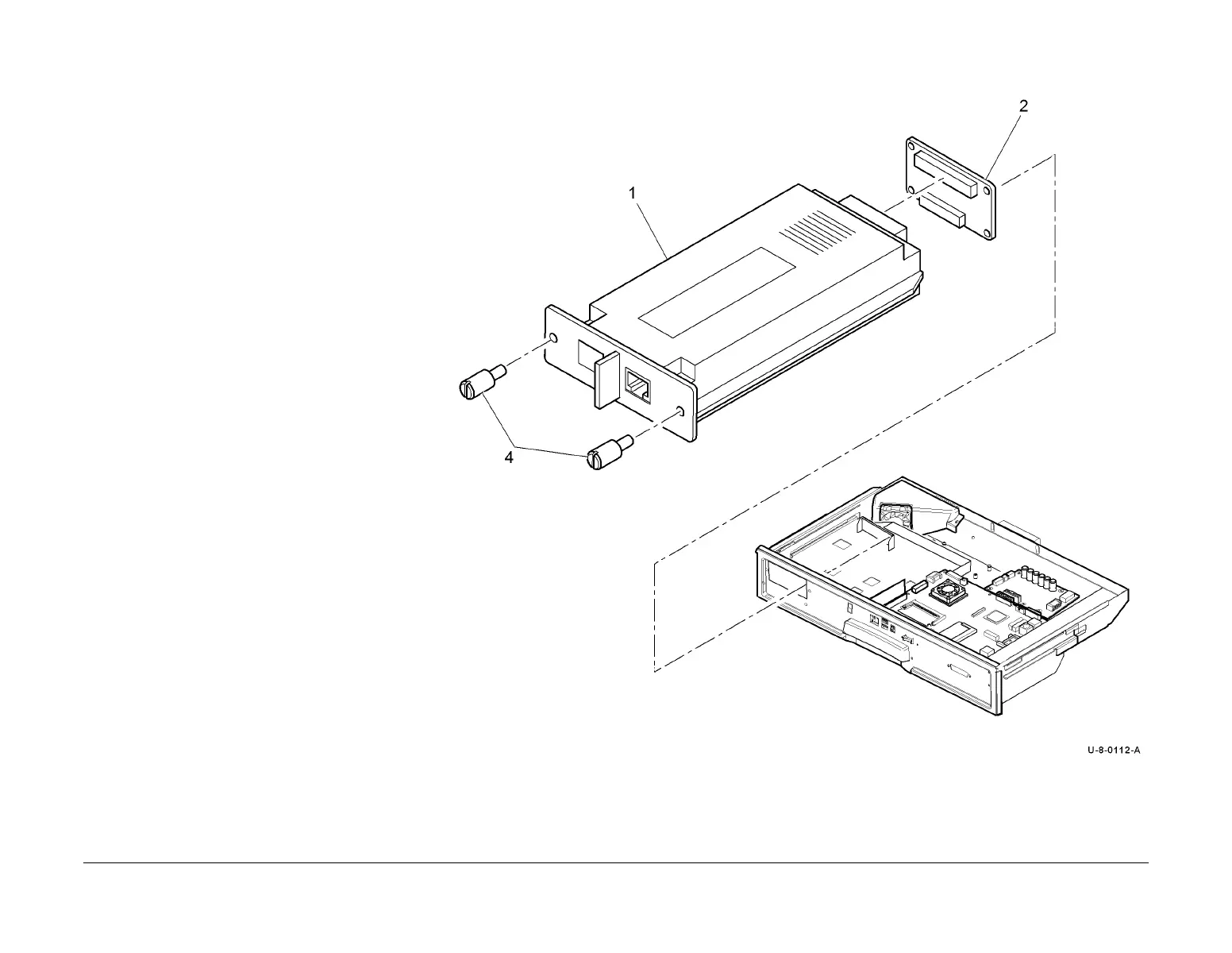

PL 20.05 Fax Module
Item Part Description
1 – Fax module
– – 1 line (P/O PL 20.10 Item 1)
– – 2 line (P/O PL 20.10 Item 2)
2 – Fax connector PWB (Not spared)
3 – Telephone cable (not shown on
illustration, see below for variants)
– 117K45260 United Kingdom
– 117K45390 USSG/XCL
– 117K45270 Germany
– 117K45280 Italy
– 117K45290 Netherlands
– – Belgium
– 117K45310 Switzerland
– 117K45320 Denmark
– 117K45330 Austria
– 117K45340 Sweden
– 117K45350 France
– 117K45360 Norway
– 117K45370 Portugal/Spain
– 117K45380 Finland
4 – Thumbscrew
