February 2013
4-48
ColorQube® 9303 Family
REP 5.10, REP 5.11
Repairs/Adjustments
Replacement
The replacement is the reverse of the removal procedure. Make sure that the torsion spring is
installed correctly, Figure 2.

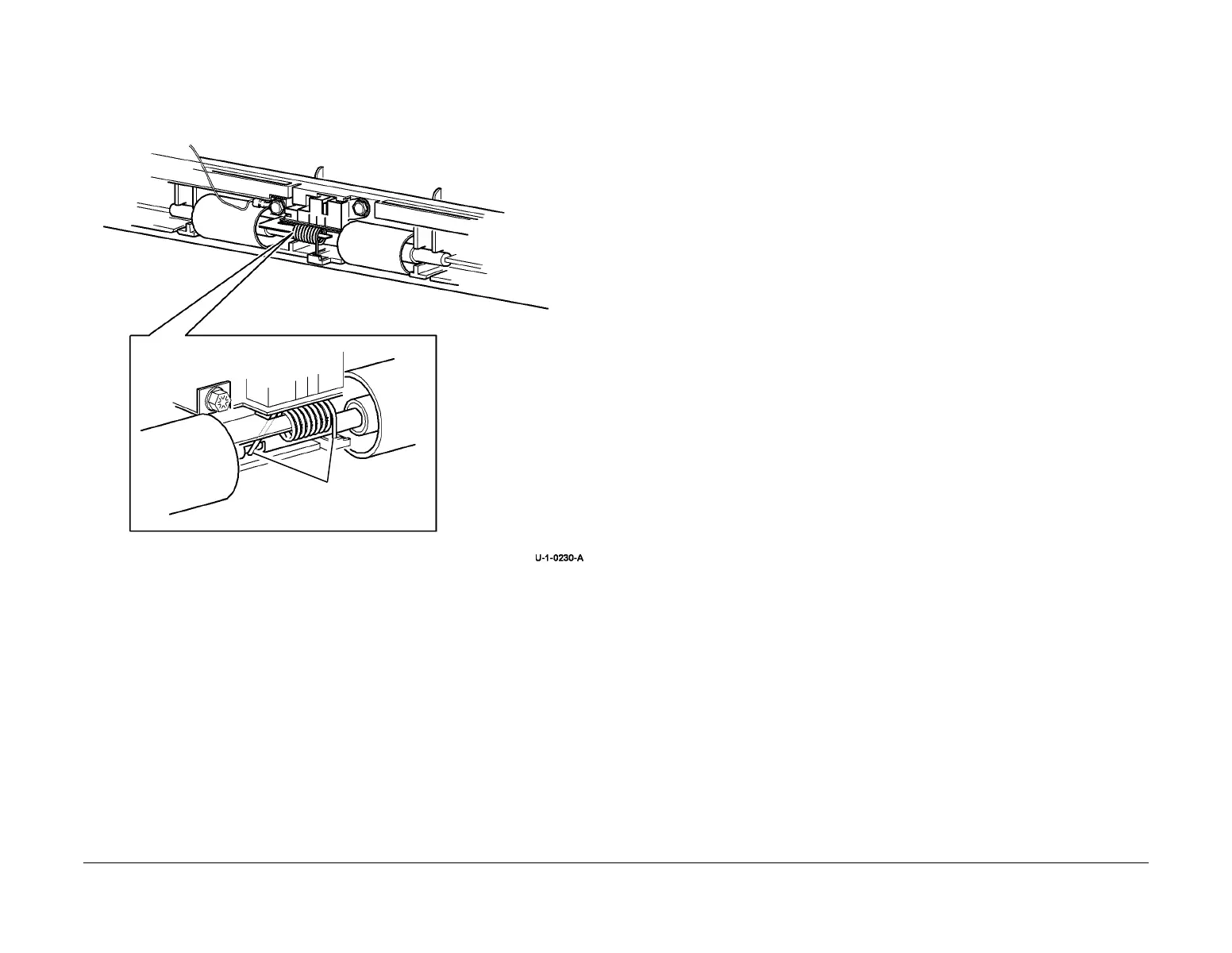

Figure 2 Torsion spring location
REP 5.11 Exit Sensor
Parts List on PL 5.30
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Raise the DADH.
CAUTION
Be careful to prevent damage to the document pad when the document pad is removed from
the baffle assembly.
Torsion spring
location.
To Next Page
