ColorQube® 9303 Family
REP 5.11
Repairs/Adjustments

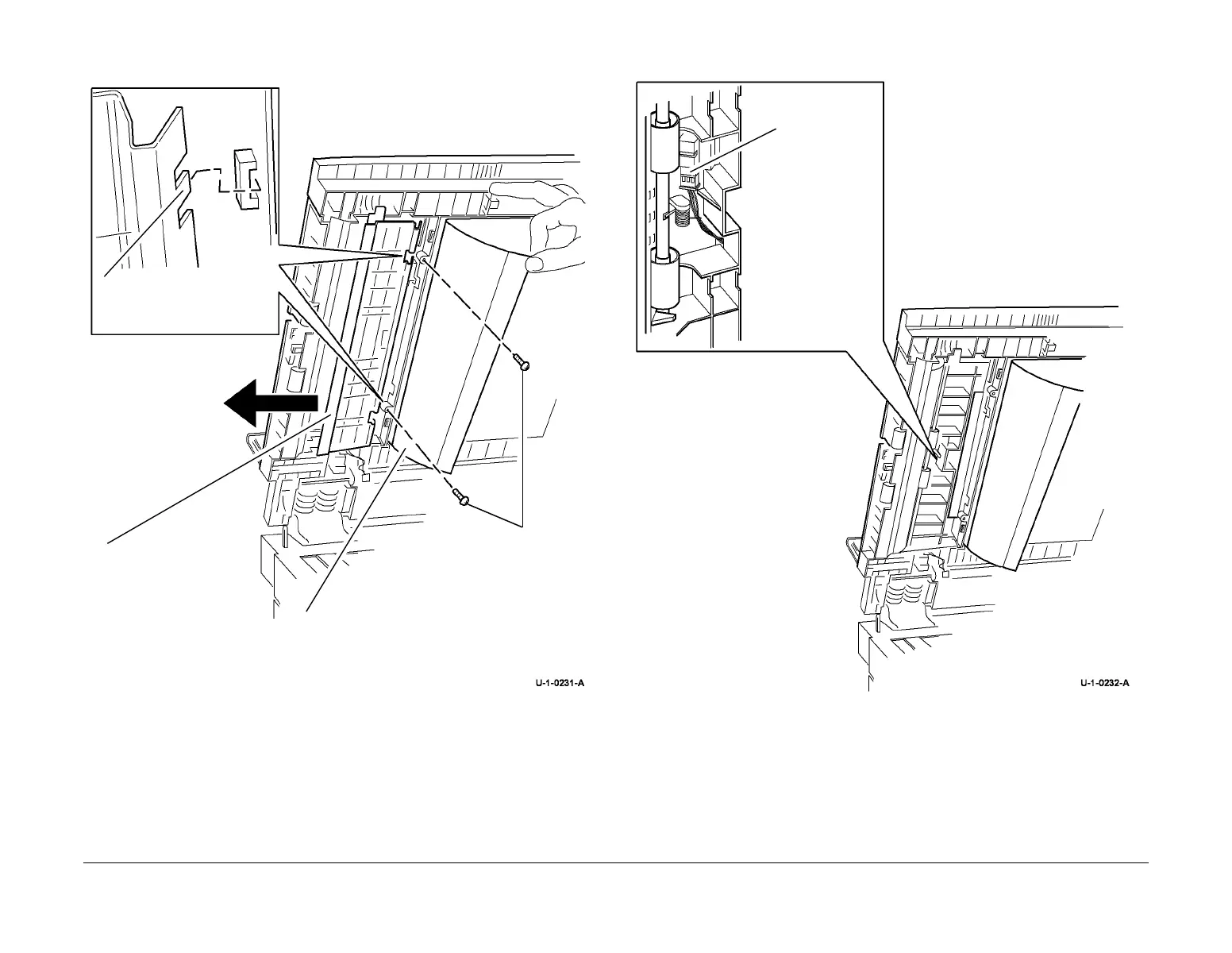

2. Prepare to remove the exit sensor, Figure 1.
Figure 1 Preparation
3. Remove the exit sensor, Figure 2.
Figure 2 Exit sensor removal
Replacement
The replacement is the reverse of the removal procedure.
1
Carefully remove the left hand end of the
document pad from the baffle assembly.
2
Remove 2
screws.
3
Disengage the lugs in the lower
cover.
4
Remove the lower cover.
1
Disconnect
PJ196. Remove
the exit sensor.
