February 2013
4-141
ColorQube® 9303 Family
REP 12.16-171
Repairs/Adjustments
REP 12.16-171 BM Flapper
Parts List on PL 12.150.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine GP 14. Disconnect the power cord from the cus-
tomer supply while performing tasks that do not need electricity. Electricity can cause
death or injury. Moving parts can cause injury.
1. Open the HVF BM front door and fully pull out the BM module.
2. Figure 1, remove the BM flapper bracket assembly.

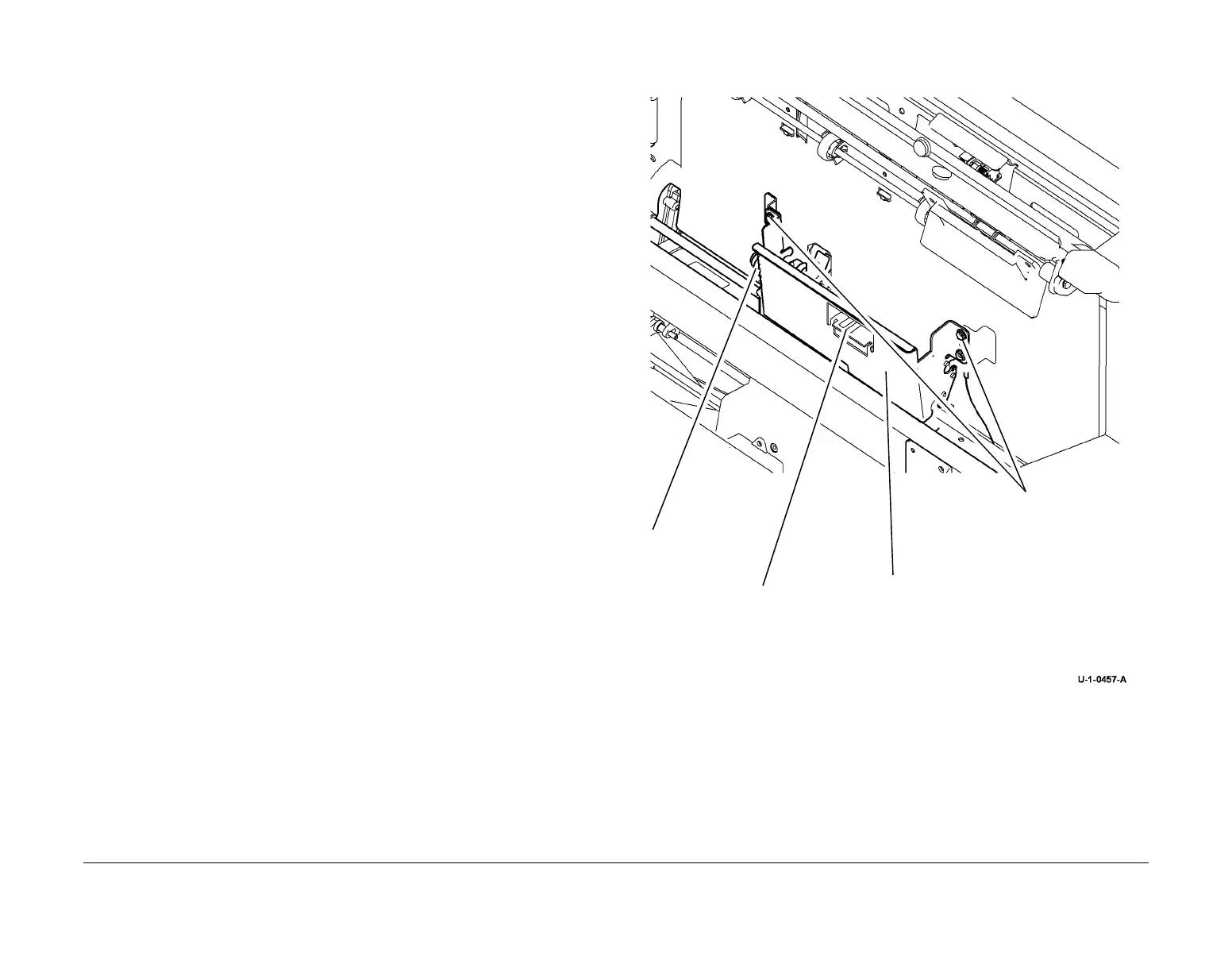

Figure 1 Remove the BM flapper bracket
2
Disengage the
drive belt.
4
Remove the BM
flapper bracket
assembly.
3
Disconnect the
BM flapper roll
home sensor.
1
Remove 4 screws
and the ground
wire.
To Next Page
