ColorQube® 9303 Family
PL 82.10
Parts Lists

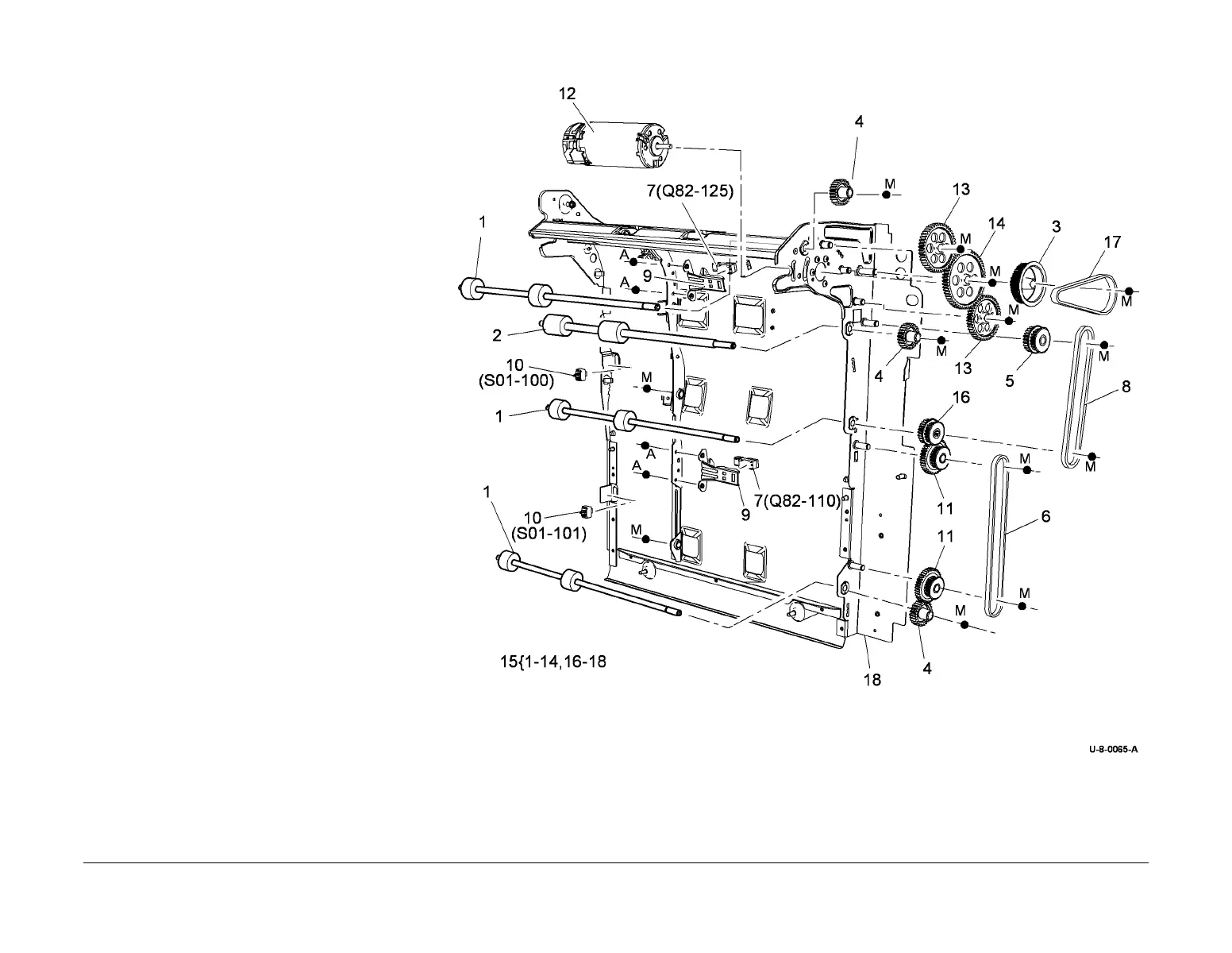

PL 82.10 Vertical Paper Path
Item Part Description
1 059E10710 Transport roller drive 2
2 059K63990 Transport roller TAR vertical
3 807E28960 Pulley M2 (90T)
4 807E28950 Gear 25T M08
5 807E28970 Nip F idler pulley
6 023E31410 Nip 'H' drive belt
7 130E12950 Confirm sensor (16) (Q82-125)/
Vertical transport sensor (5) (Q82-
110) (REP 82.8)
8 023E31470 Nip F drive belt (90T)
9 – Sensor bracket (Not spared)
10 110E20810 Upper door interlock switch (S01-
100)/Mid door interlock switch
(S01-101)
11 020K20450 Nip H drive pulley
12 127K62280 Vertical transport motor (M2)
(MOT82-001) (M2)
13 807E29010 Gear 46T-M08
14 807E28940 Gear 58T
15 038K23761 Vertical paper path
16 020K20620 Nip F drive pulley
17 023E31480 Motor M2 drive belt
18 – Inner frame assembly (Not spared)
To Next Page
