Xerox ColorQube 9301 Service Manual

February 2013
5-91
ColorQube® 9303 Family
PL 81.46
Parts Lists

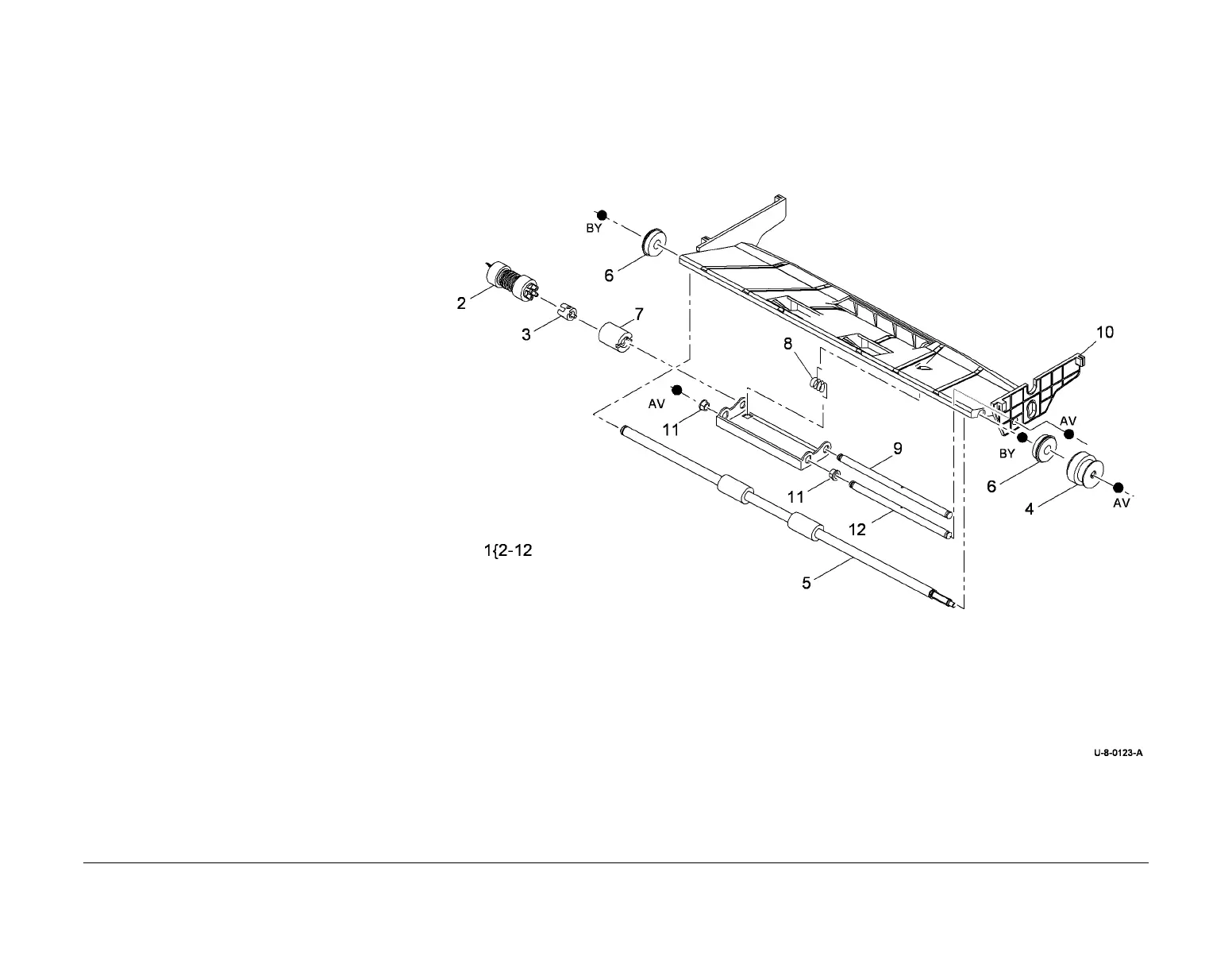

PL 81.46 Tray 5 Feed Assembly (3 of
3)
Item Part Description
1 059K70530 Lower feed assembly (REP 82.7)
2 – Retard roller (P/O PL 81.45 Item
20)
3 – Retard clutch (P/O PL 81.46 Item 1)
4 – One way pulley clutch (P/O PL
81.46 Item 1)
5 – Take away roller (P/O PL 81.46
Item 1) (REP 82.7)
6 – Bearing (P/O PL 81.46 Item 1)
7 – Clutch (P/O PL 81.46 Item 1)
8 – Torsion retard spring (P/O PL 81.46
Item 1)
9 – Retard roller shaft (P/O PL 81.46
Item 1)
10 – Lower feed assembly base (P/O PL
81.46 Item 1)
11 – Actuator pivot shaft bearing (P/O
PL 81.46 Item 1)
12 – Actuator pivot shaft (P/O PL 81.46
Item 1)
NOTE: To reset the HFSI count, go to dC135.
