Xerox ColorQube 9301

February 2013
5-50
ColorQube® 9303 Family
PL 12.190
Parts Lists

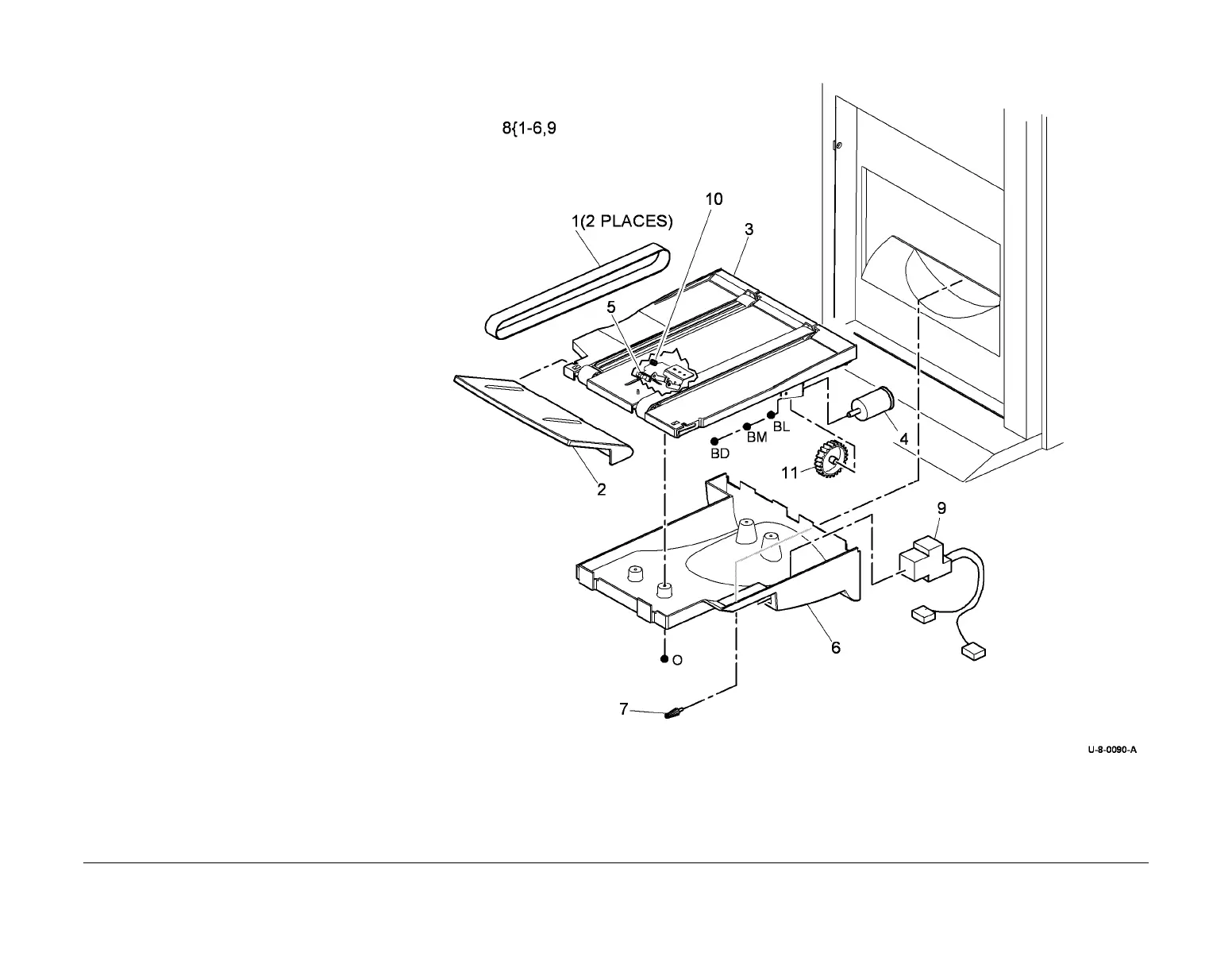

PL 12.190 HVF BM Bin 2
Item Part Description
1 023E18612 Conveyor belt (REP 12.29-171)
2 050E21971 HVF BM Bin 2 extension
3 – HVF BM Bin 2 upper cover (P/O PL
12.190 Item 8)
4 127K53630 BM Conveyor drive motor (MOT12-
274)
5 019E61171 HVF BM Bin 2 90% full sensor
(Q12-206)
6 – HVF BM Bin 2 lower cover (P/O PL
12.190 Item 8)
7 826E32840 Thumbscrew
8 050K67740 HVF BM Bin 2 assembly
9 – HVF BM Bin 2 connector (Not
spared)
10 809E47341 HVF Bin 2 actuator spring
11 007E69000 Gear (50T)/pulley (24T)
