February 2013
3-109
ColorQube® 9303 Family
IQS 3, IQS 4
Image Quality
IQS 3 Y-Dot Position
Specification
Figure 1, shows a level of position error that provides a basis for determining defect severity. If
Y-dot position error exceeds Figure 1, corrective action is necessary. Refer to IQ 5.

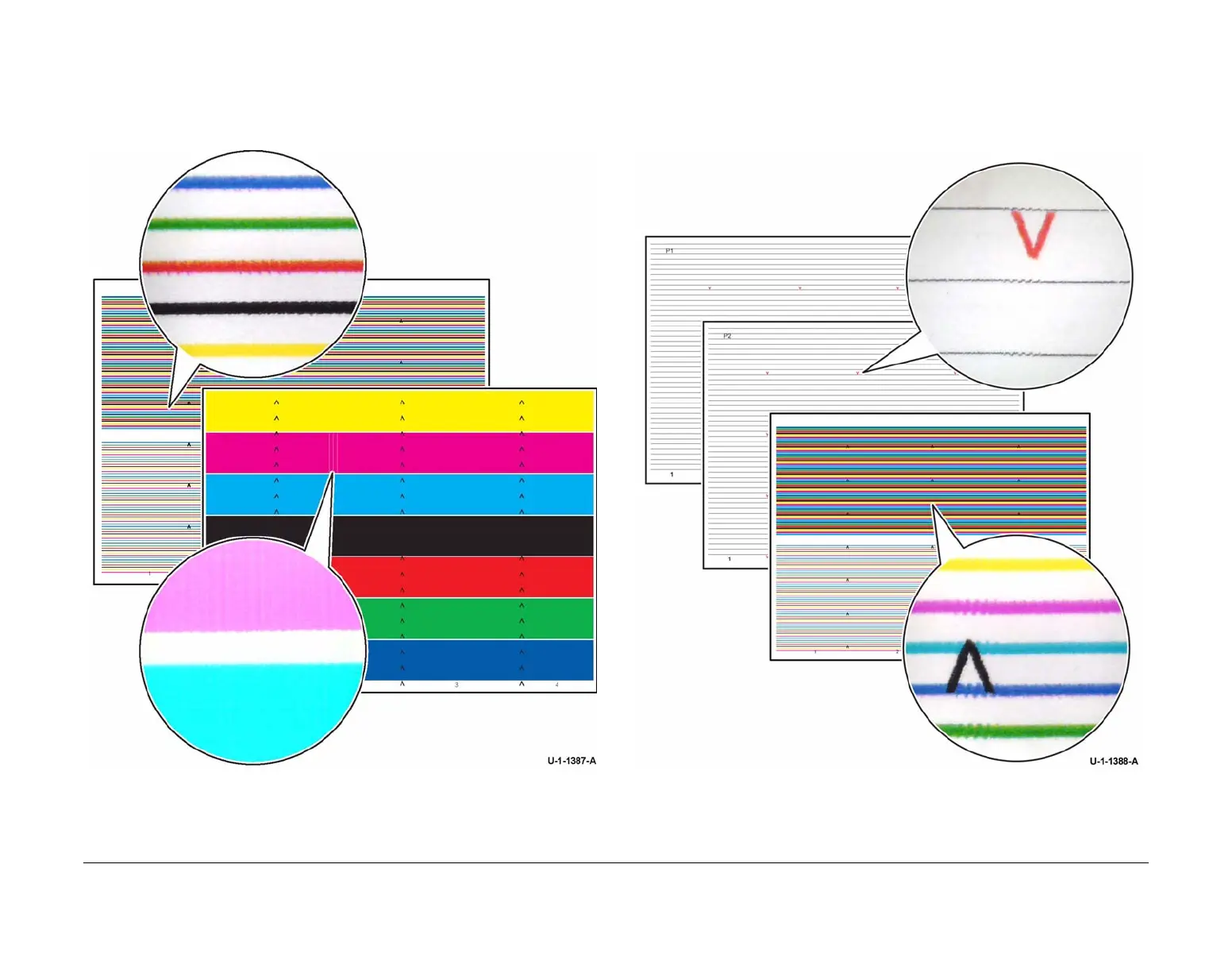

Figure 1 Maximum specified Y-dot misplacement
IQS 4 Y-Stitch
Specification
Figure 1 shows a level of y-stitch error that provides a basis for determining defect severity. If
Y-stitch error exceeds Figure 1, corrective action is necessary.
Figure 1 Maximum specified Y-stitch error
To Next Page
