February 2013
5-39
ColorQube® 9303 Family
PL 12.135
Parts Lists

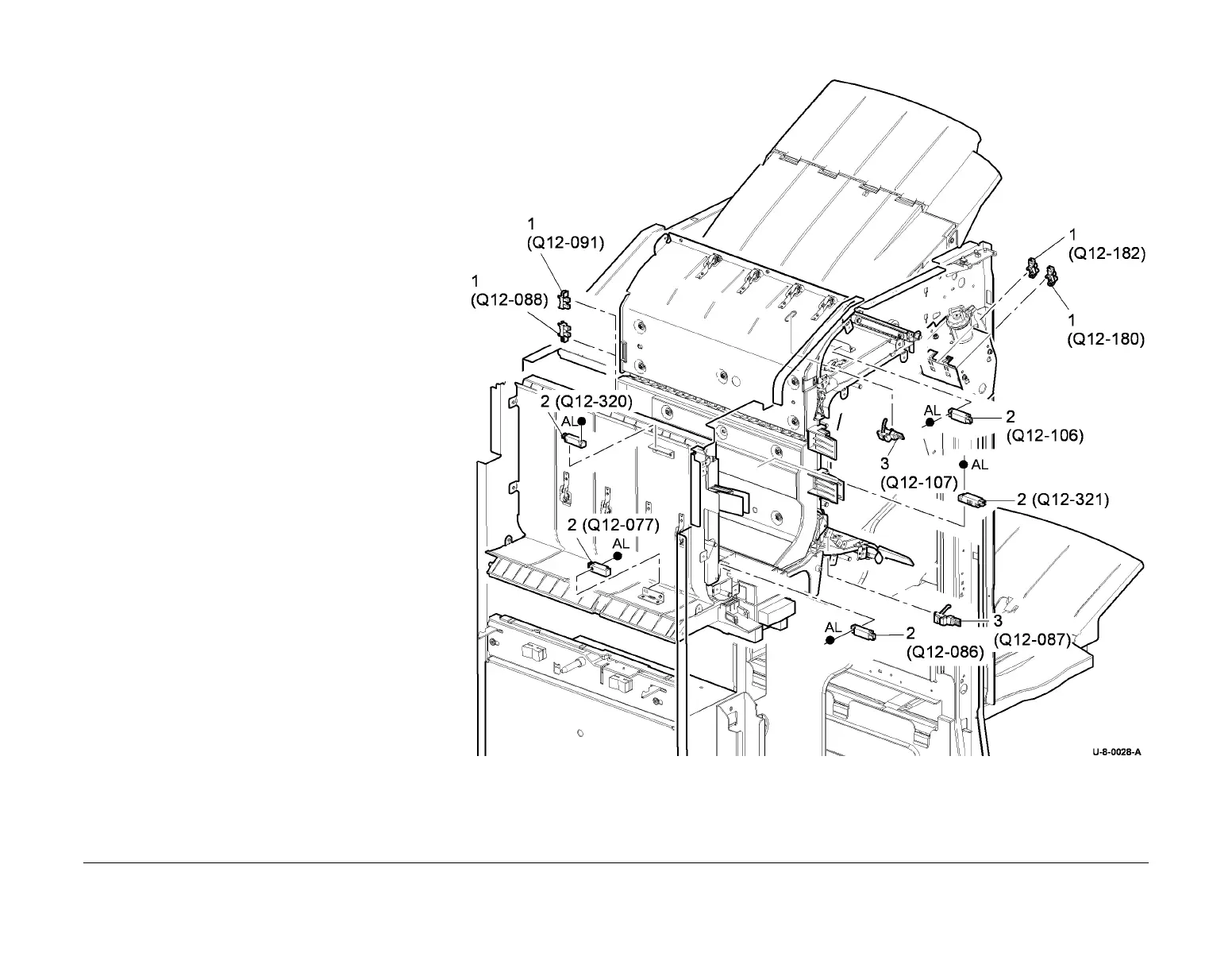

PL 12.135 HVF Feed Assembly and
Punch (3 of 3)
Item Part Description
1 130E12830 Tamper front home sensor (Q12-
180)/Tamper front away sensor
(Q12-182)/Nip split sensor (Q12-
091)/Nip home sensor (Q12-088)
2 130E12810 Entry sensor (Q12-077)/Compiler
exit sensor (Q12-106)/Buffer
position sensor (Q12-086)/Buffer
path sensor (Q12-321)/Inserter
standby sensor(Q12-320)
3 130E12840 Top tray exit sensor (Q12-107)/HVF
Booklet exit sensor (Q12-087)
