February 2013
4-14
ColorQube® 9303 Family
REP 1.7
Repairs/Adjustments
REP 1.7 Molex Mini-Fit Junior Connectors
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.

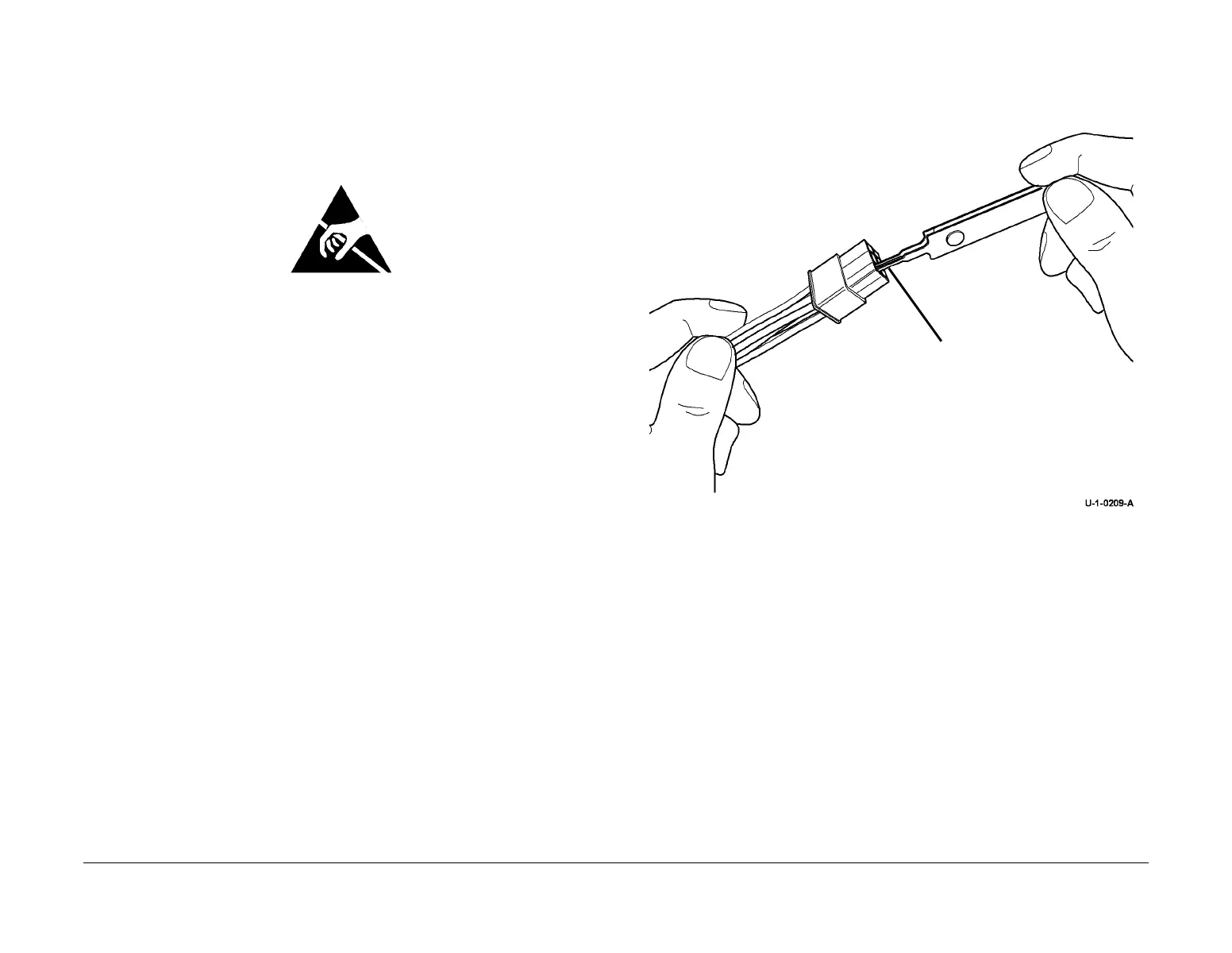

Figure 1 ESD Symbol
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Figure 2. Remove the terminal from the housing, using the Molex, Mini-Fit extractor tool.
Figure 2 Removing the terminal
2. Cut off the damaged terminal, then strip 4 mm of insulation from the end of the wire.
Replacement
1. Select the correct terminal type.
1
Insert the prongs fully down
the sides of the terminal
2
Withdraw the terminal
from the connector body
To Next Page
