February 2013
5-72
ColorQube® 9303 Family
PL 70.25
Parts Lists

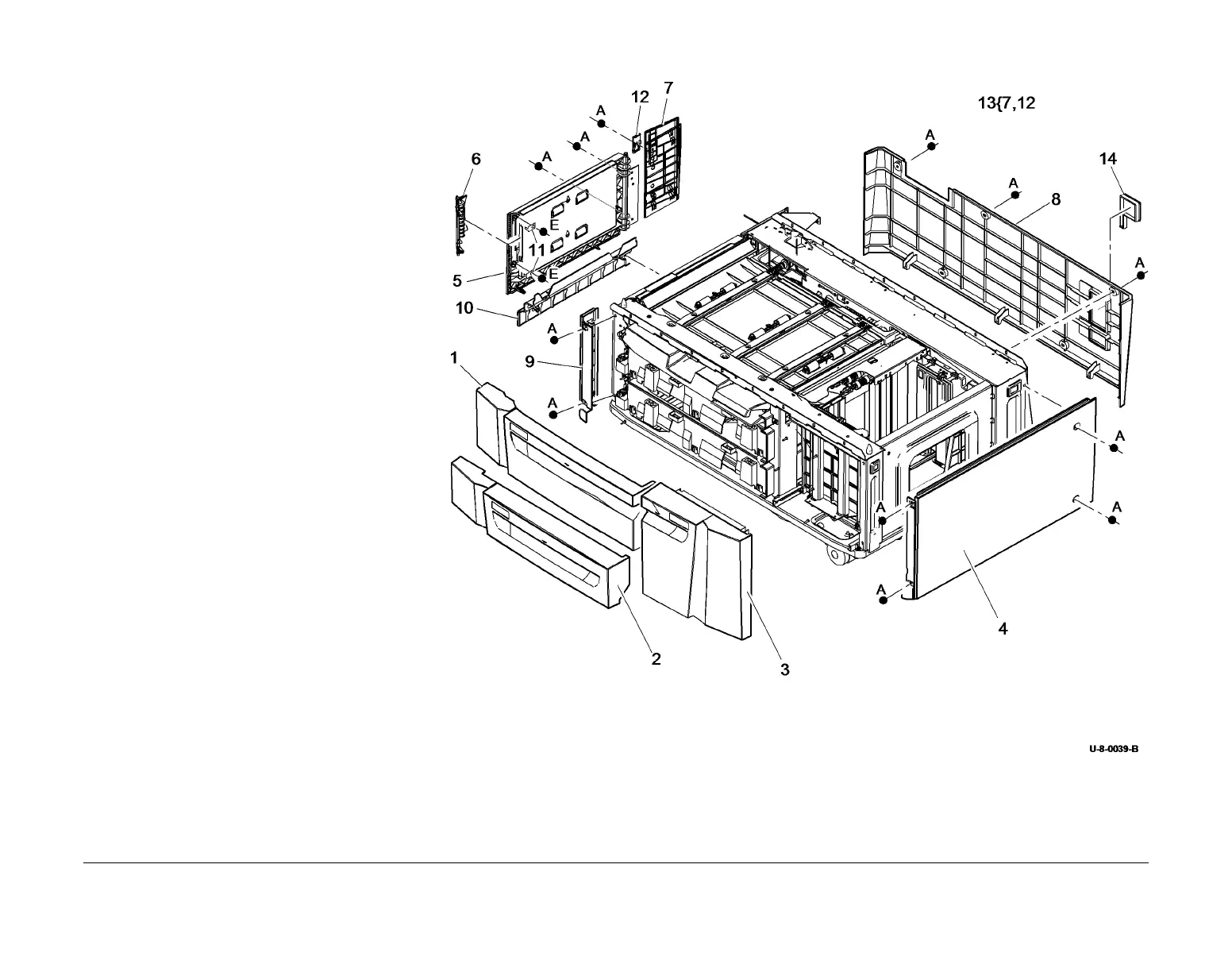

PL 70.25 3 Tray Module Covers
Item Part Description
1 – Tray 1 front cover (P/O PL 70.10
Item 21)
2 – Tray 2 front cover (P/O PL 70.10
Item 21)
3 – Tray 3 front cover (P/O PL 31.11
Item 31)
4 848E23153 Right side cover
5 802K93695 Lower left door assembly
6 – Lower left door latch (P/O PL 70.25
Item 5)
7 – Rear left cover (P/O PL 70.25 Item
13)
8 – Rear cover (Not spared)
9 848E23142 Cover front LH
10 848E23161 Cover infill
11 – Left lower door latch retainer plate
(Not spared)
12 – Rear left cover infill (P/O PL 70.25
Item 13)
13 604K55440 Rear left cover assembly
14 – Blanking cover (W/TAG 001)
To Next Page
