Xerox ColorQube 9301

February 2013
5-74
ColorQube® 9303 Family
PL 73.15
Parts Lists

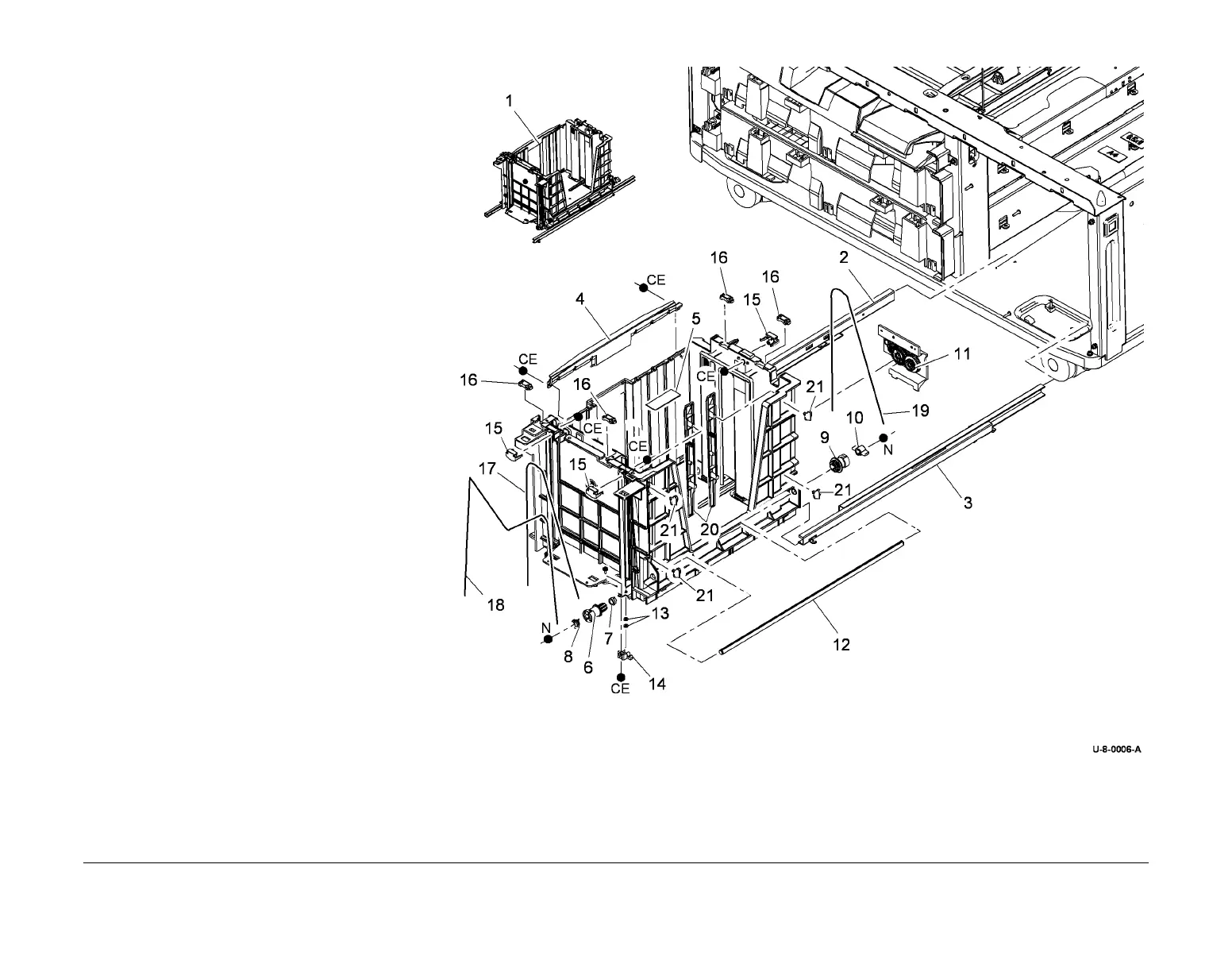

PL 73.15 Tray 3 Assembly
Item Part Description
1 – Tray 3 assembly (Complete) (REF:
PL 31.11 Item 31) (See NOTE)
(REP 73.1)
2 – LH Slide (P/O PL 73.15 Item 1)
3 – RH Slide (P/O PL 73.15 Item 1)
4 055E55332 Baffle lead edge
5 019K13770 Pad Tray bottom
6 – Front cable gear (Black) (P/O PL
73.15 Item 1)
7 – Bearing (P/O PL 73.15 Item 1)
8 – Cable gear shaft spacer (P/O PL
73.15 Item 1)
9 – Rear cable gear (White) (P/O PL
73.15 Item 1)
10 – Dog drive elevate (P/O PL 73.15
Item 1)
11 007K20290 Damper and gear assembly (REP
73.6)
12 – Cable gear shaft (P/O PL 73.15
Item 1)
13 – Washer elevate (Not spared)
14 – Gear (P/O PL 73.15 Item 1)
15 – Retainer roller (P/O PL 73.15 Item
1)
16 – Clip guide retainer (P/O PL 73.15
Item 1)
17 – Front short cable (Silver) (P/O PL
31.11 Item 30) (REP 73.3)
18 – Front long cable (Yellow) (P/O PL
31.11 Item 30) (REP 73.3)
19 – Rear cable (Black) (P/O PL 31.11
Item 30) (REP 73.3)
20 – Paper edge guide (P/O PL 31.11
Item 12)
21 – Guide securing stud (P/O PL 31.11
Item 12)
NOTE: Refer to ADJ 73.1 to set the tray 3 paper guides.
