February 2013
5-70
ColorQube® 9303 Family
PL 62.16
Parts Lists

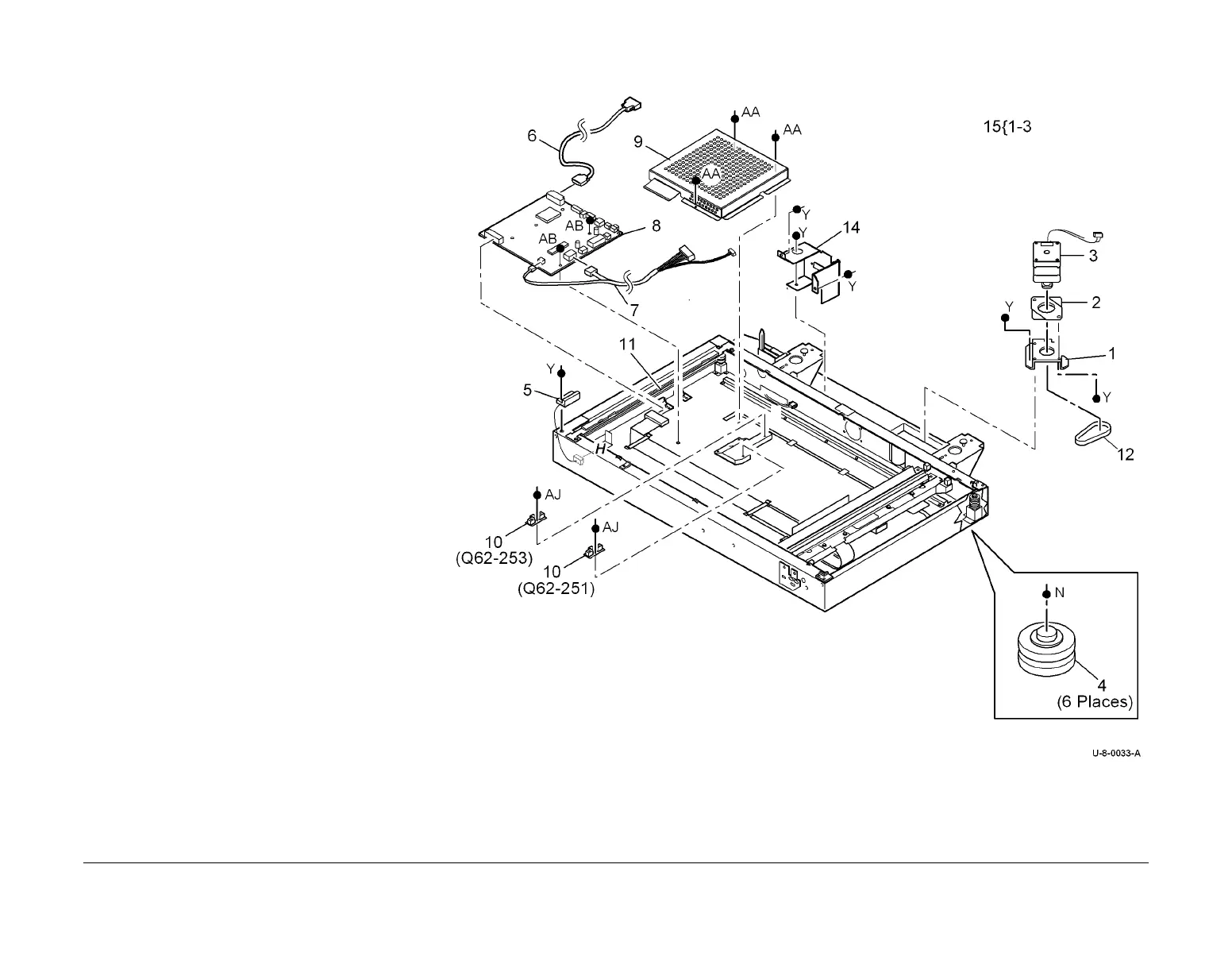

PL 62.16 Electrical Components (2 of
2)
Item Part Description
1 – Carriage motor bracket (P/O PL
62.16 Item 15)
2 – Carriage motor mounting (P/O PL
62.16 Item 15) (REP 62.6)
3 – Carriage motor (MOT62-023) (P/O
PL 62.16 Item 15) (REP 62.6, ADJ
62.3)
4 020K12510 Scan idler pulley
5 130E18530 Platen down sensor (Q62-019)
6 952K00380 IIT video/SBC PWB harness
(PJ922)
7 952K00400 DADH/IIT power comms harness
(PJ920, PJ921, PJ852)
8 960K66391 Scanner PWB (REP 62.12)
9 – Scanner PWB cover (Not spared)
10 130E12320 Document size sensor 1 (Q62-251),
Document size sensor 2 (Q62-253)
(REP 62.14)
11 – Scan cables (Not spared) (REP
62.7)
12 023E25140 Scan drive belt (REP 62.8)
13 – Not used
14 – Scanner harness bracket (Not
spared)
15 127K44880 Carriage motor and bracket
assembly
NOTE: Refer to ADJ 62.1 for the optics cleaning procedure.
